165
PRIMERGY RX300 S4 User's Guide

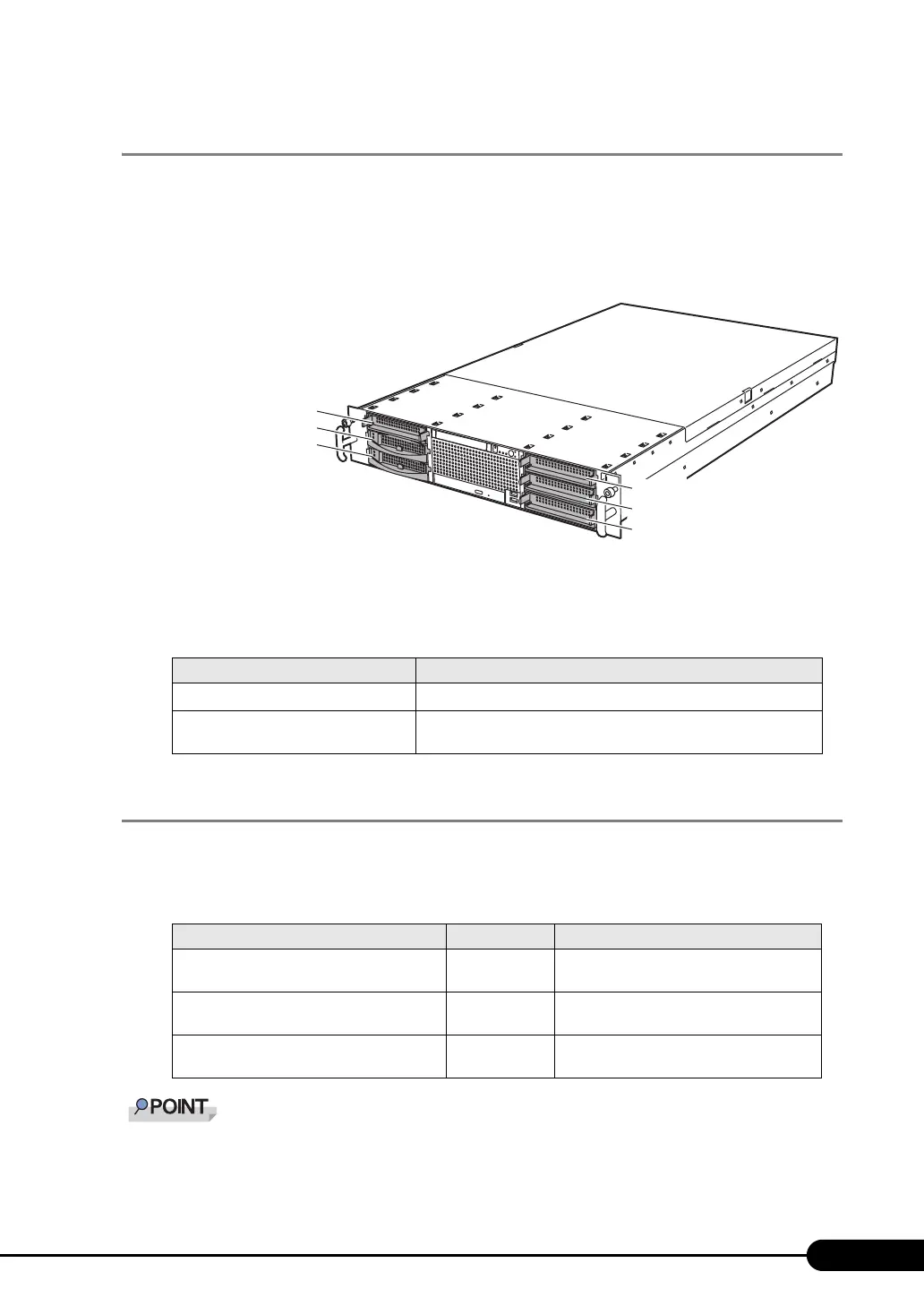

6.6.1 Installation Locations of Internal Hard Disk Units
Install the internal hard disk unit in a 3.5-inch storage bay at the front of server. Up to six units can be
installed.
When an internal backup device is installed, a maximum of four internal hard disk units can be installed.
Slot numbers that are displayed in RAID management software etc. are described in the locations where
hard disk units are installed.
Installation order
Install the internal hard disk units in the 3.5-inch storage bays in the following order.
6.6.2 Installable Internal Hard Disk Units and Notes
Installable internal hard disk unit
Before installing an internal hard disk unit, see "Appendix B.4 Internal Hard Disk Units" (p.248) to
check the packaged contents.
table: Installation order of internal hard disk units
Status of the 3.5-inch storage bay Installation order
Standard installation
Bay 4 – Bay 5 – Bay 6 – Bay 1– Bay 2 – Bay 3
When an internal backup device is
installed (using bays 2 and 3)
Bay 4 – Bay 5 – Bay 6 – Bay 1
table: List of installable hard disks
Product name Product ID Remarks
HDD SAS 15k 73GB hot plug 3.5inch
PG-HDB75A 73.4GB, 15,000rpm, SAS 3.5-inch,
hot plug support
HDD SAS 15k 147GB hot plug 3.5inch
PG-HDB45A 146.8GB, 15,000rpm, SAS 3.5-inch,
hot plug support
HDD SAS 15k 300GB hot plug 3.5inch PG-HDB35A 300GB, 15,000rpm, SAS 3.5-inch,
hot plug support
Bay 4 (Slot Number 4)
Bay 1 (Slot Number 0)
Bay 2 (Slot Number 1)
Bay 3 (Slot Number 2)
Bay 5 (Slot Number 5)
Bay 6 (Slot Number 6)
