1.3 Component Names and Functions
This section explains the component names and functions of the server.

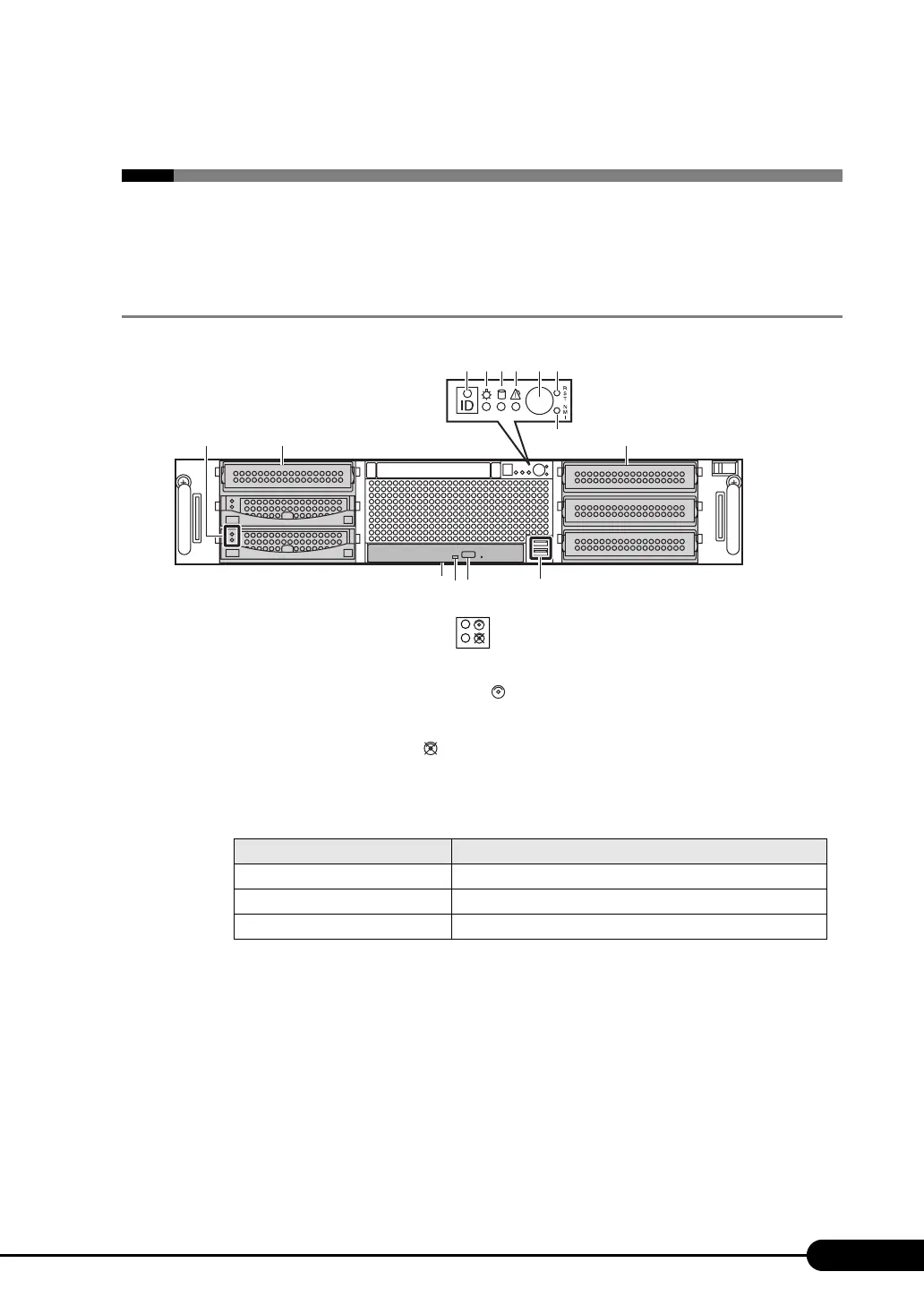

1.3.1 Server (Front View)
a Hard disk status display LED ( )
Indicates the state of the internal hard disk unit. The following shows the meaning of each LED.
•
Hard disk access display LED ( )
This LED lights up green when data is being written to or read from the hard disk.
•
Hard disk failure LED ( )
During array system configuration, this LED lights up amber when an error is detected in the
internal hard disk unit. It is lit or blinks depending on the hard disk status as follows.
b 3.5-inch storage bay
Install the internal hard disk unit or internal backup device into the server unit.
c System identification LED button
When pressing this button, the front and rear system identification LEDs are lit blue so that the
locations of devices being maintained can be determined.
table: Hard disk status
LED status Hard disk status
Off Normal mode
Amber Hard disk failure
Blinks in amber Rebuilding or replacing the faulty hard disk
