Chapter 6 Installing Internal Options
Replacing defective internal hard disk units (for array configuration
only)
When an array system is configured, if one hard disk unit fails, you can replace it and perform recovery
functions without turning off the power of the server and peripheral devices (hot swap/hot plug support).
For details, refer to the manual on the "Array Controller Documents & Tools CD".
6.6.3 How to Install Internal Hard Disk Units
1 Open the rack door.
"1.4.1 Opening the Rack Door" (p.29)
2 Turn off the server and all peripheral devices. Also unplug all power cables from
the server.
"1.4.3 Turning Off the Server" (p.32)
3 Touch a metal part of the server to discharge static electricity.
4 Remove the dummy unit from the bay where the internal hard disk unit is to be
installed.
Dummy units are installed in bays where no internal hard disk units are installed. Draw forward
the dummy unit slowly while pushing the tab inwards.
Store the removed dummy unit in a safe place.

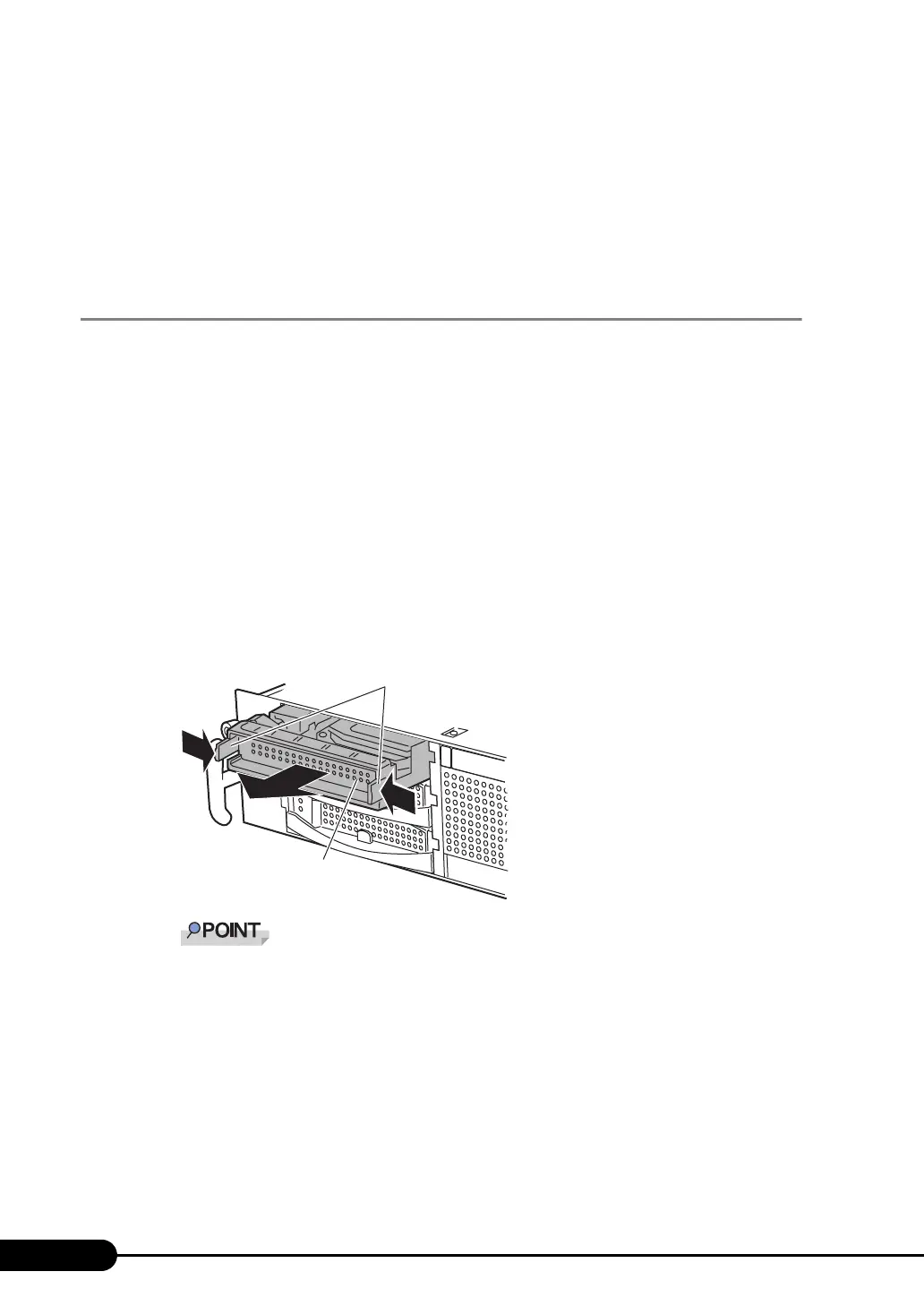

Dummy units
Tab
