4.6.4 VLAN
Notes
The following are notes on using VLAN via BACS. For details, refer to BACS help.
However, when the content of help and this manual differ, follow the instructions in this manual.
• When creating a VLAN, a virtual adapter "BASP Virtual Adapter" will be created in the system. Do
not disable or delete a virtual VLAN from the [Device Manager] or [Network Connections]. When
deleting a virtual VLAN, make sure to use BACS.
• On a VLAN, only use IP protocols.
When LLC and the LNDFC protocols are installed by the Fujitsu communication control service,
VLAN and these protocols are bound (connected) unconditionally. Therefore, release the bind of
VLAN and these protocols in the system where protocols other than IP and VLAN are installed at the
same time.
• Up to ten VLANs can be set to a LAN port.
• Up to four VLANs whose "NetBIOS over TCP/IP" is enabled in the whole system.
VLAN setting procedure
1 Log in with Administrator or same privileges.

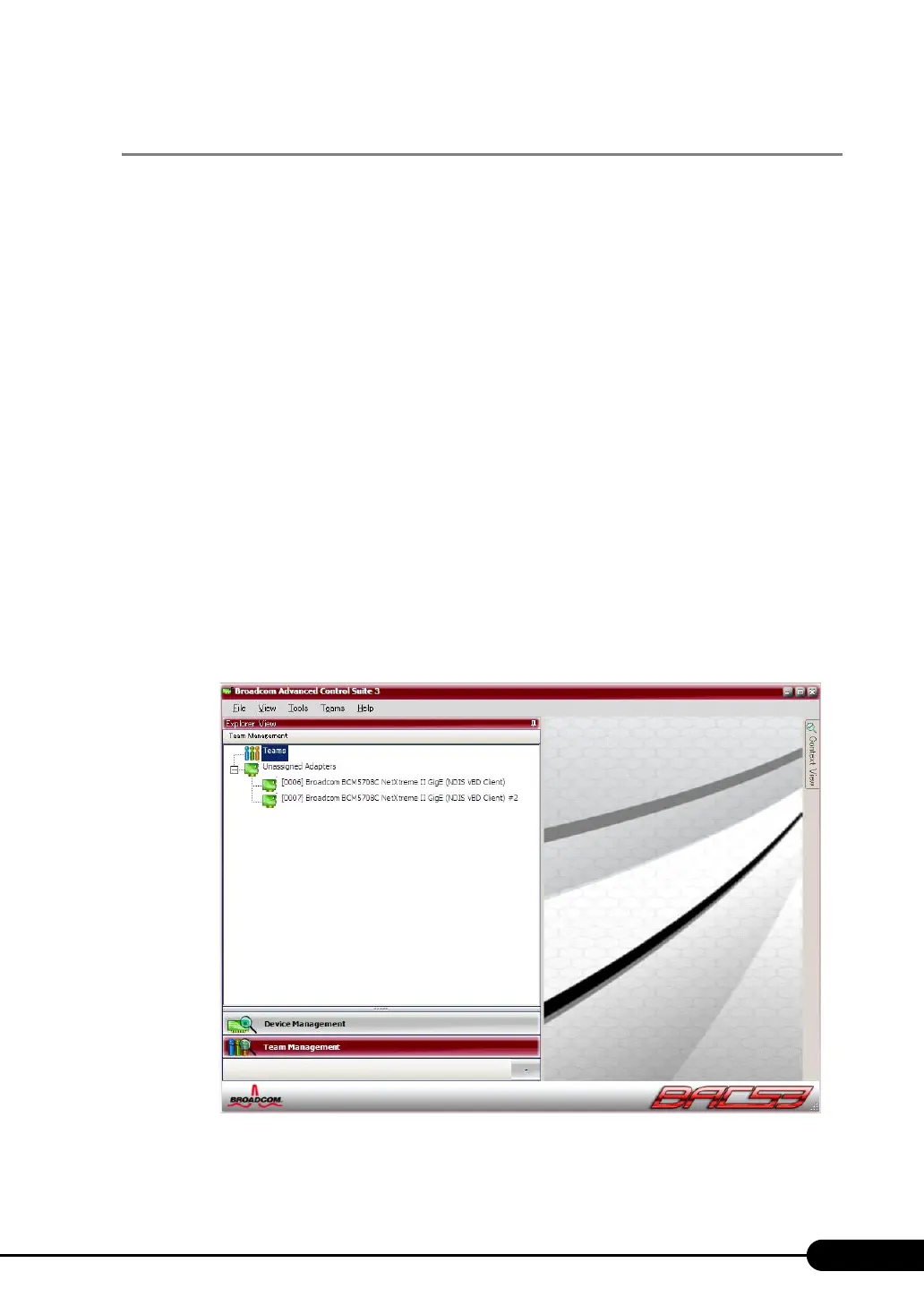

2 Click [Start] – [Control Panel] – [Broadcom Control Suite 3].
The [Broadcom Advanced Control Suite 3] window appears.
3 Click [Team Management].
