5 Attach the expansion card to the PCI slot, and fasten it with the screw removed
in Step 4.
When installing the SAS RAID Ctrl (PG-248G2L, PG-248CL, PG-244CL)
Make sure to install the battery backup unit provided in the server and connect the battery
backup unit cable.
"6.5.4 How to Install a Battery Backup Unit (BBU)" (p.161)
6 Attach the fan duct.
" How to attach the fan duct" (p.138)
7 Attach the top cover and push the server back into the rack.
" How to attach the top cover" (p.137)
How to remove an expansion card
To remove expansion cards, simply reverse the installation procedures.

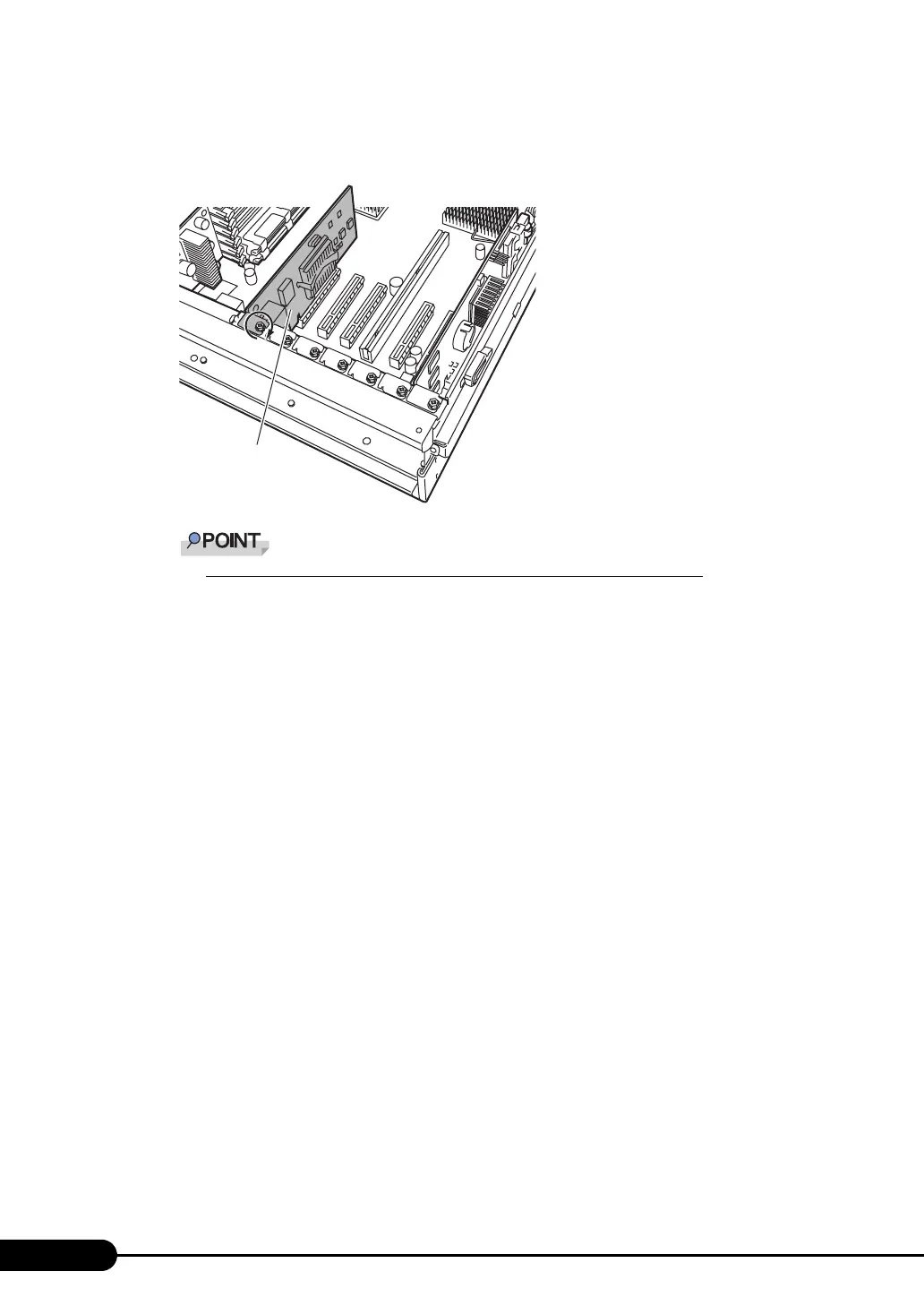

Expansion card
