Replacing intrusion detection switches Removal/installation routines

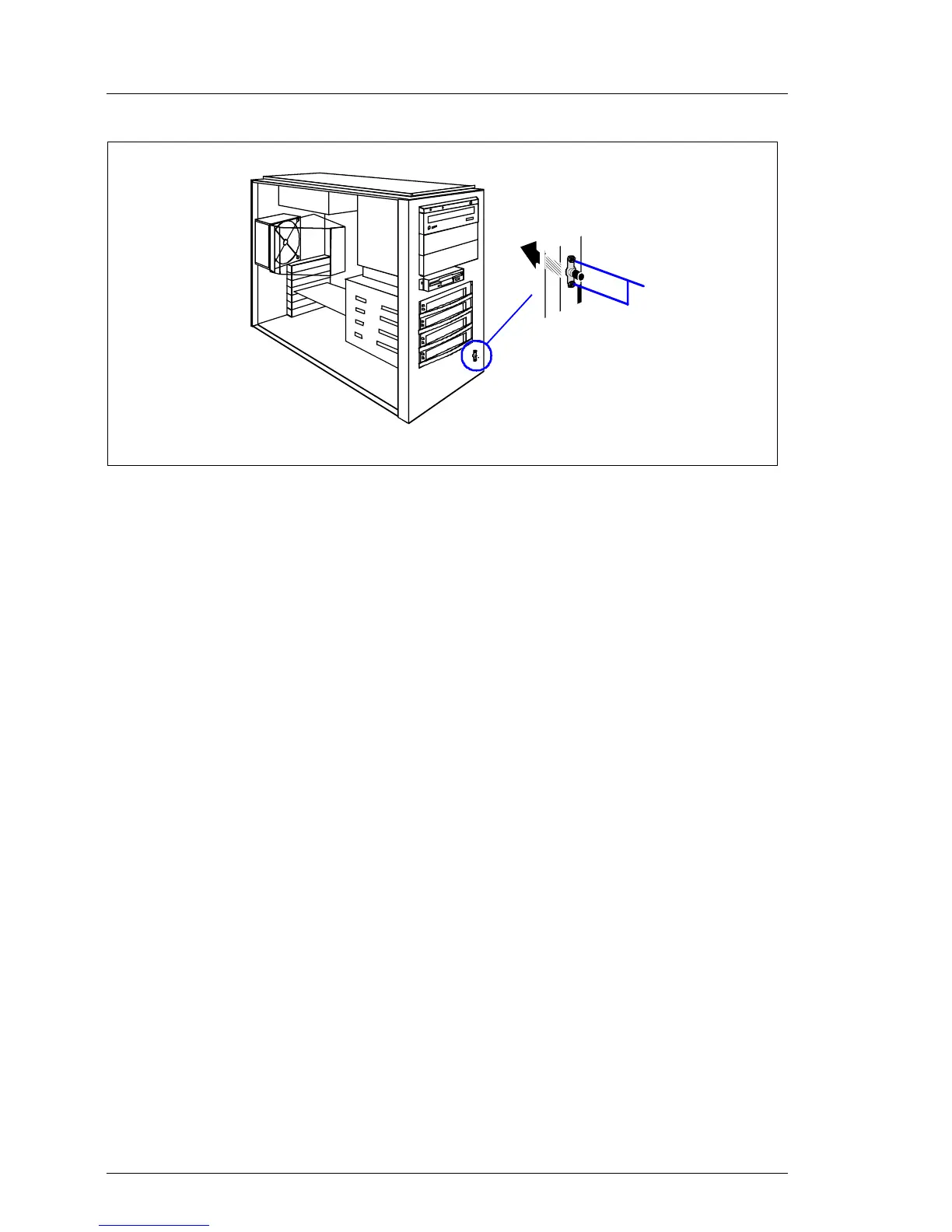

Ê Remove both screws of the second intrusion detection switch which is
mounted on the front cover (1).
Ê Reach for the intrusion detection switch through the left side opening under
the SCSI hard disk cage and pull the intrusion detection switch backwards
through the recess in the front cover (2).
Ê Disconnect the end of the intrusion detection switch cable from the intrusion
connector on the system board (see page 02-TX150S2-43).
Installation of the new intrusion detection switches is to be performed in reverse
order.
