02–TX150S2–30 July 2004 U41057-J19-Z146-1-76
Initial operation and operating Installation and initial operation

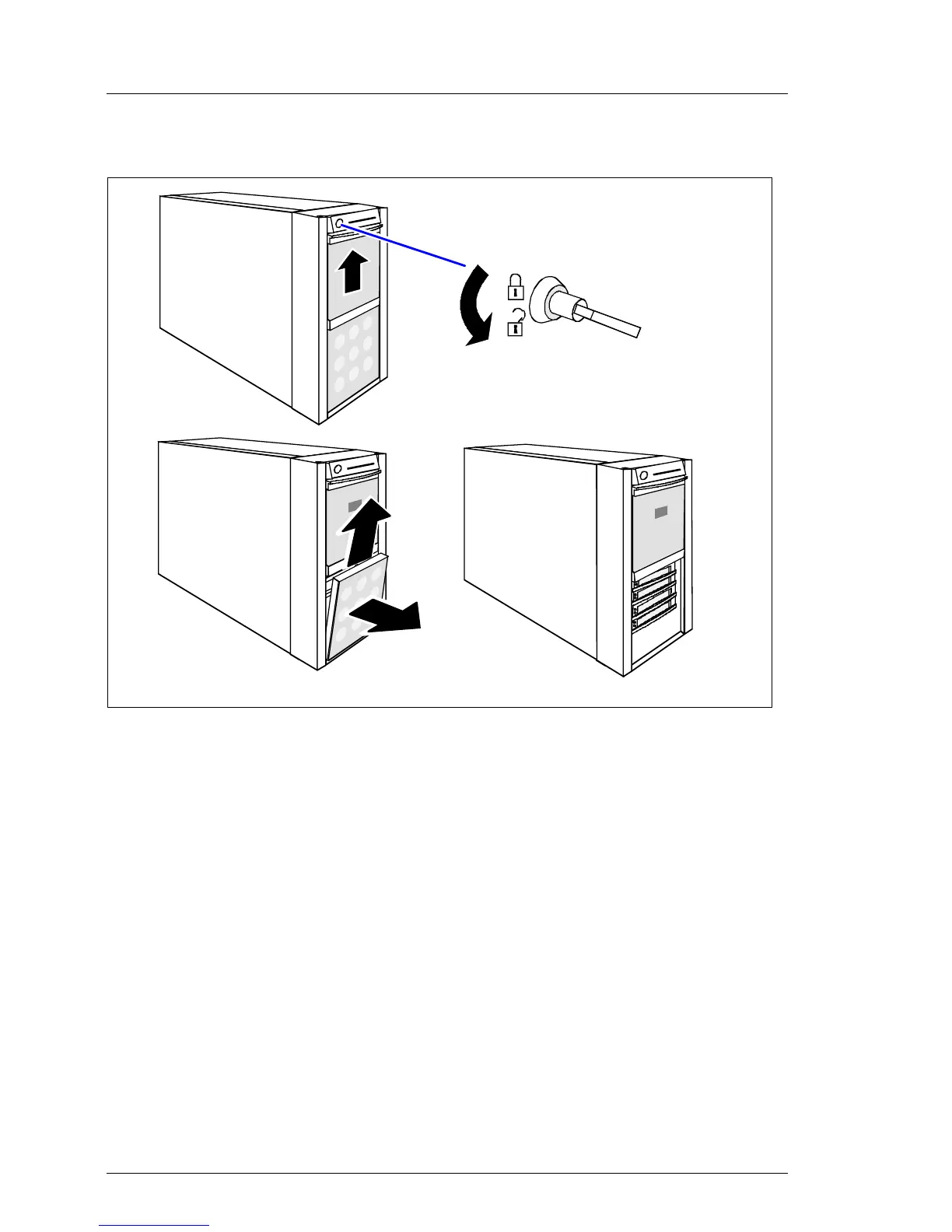

Enabling access to the hard disk modules
Ê Unlock the server (1).
Ê Remove the key.
Ê Slide up the cover of the accessible drives as far as possible (2).
Ê Remove the hard disk cover toward the front (3 + 4).
The reinstalling of the hard disk cover and the locking of the server is done in
reverse order.
1
2
4
3
