02–TX150S2–32 July 2004 U41057-J19-Z146-1-76
Initial operation and operating Installation and initial operation

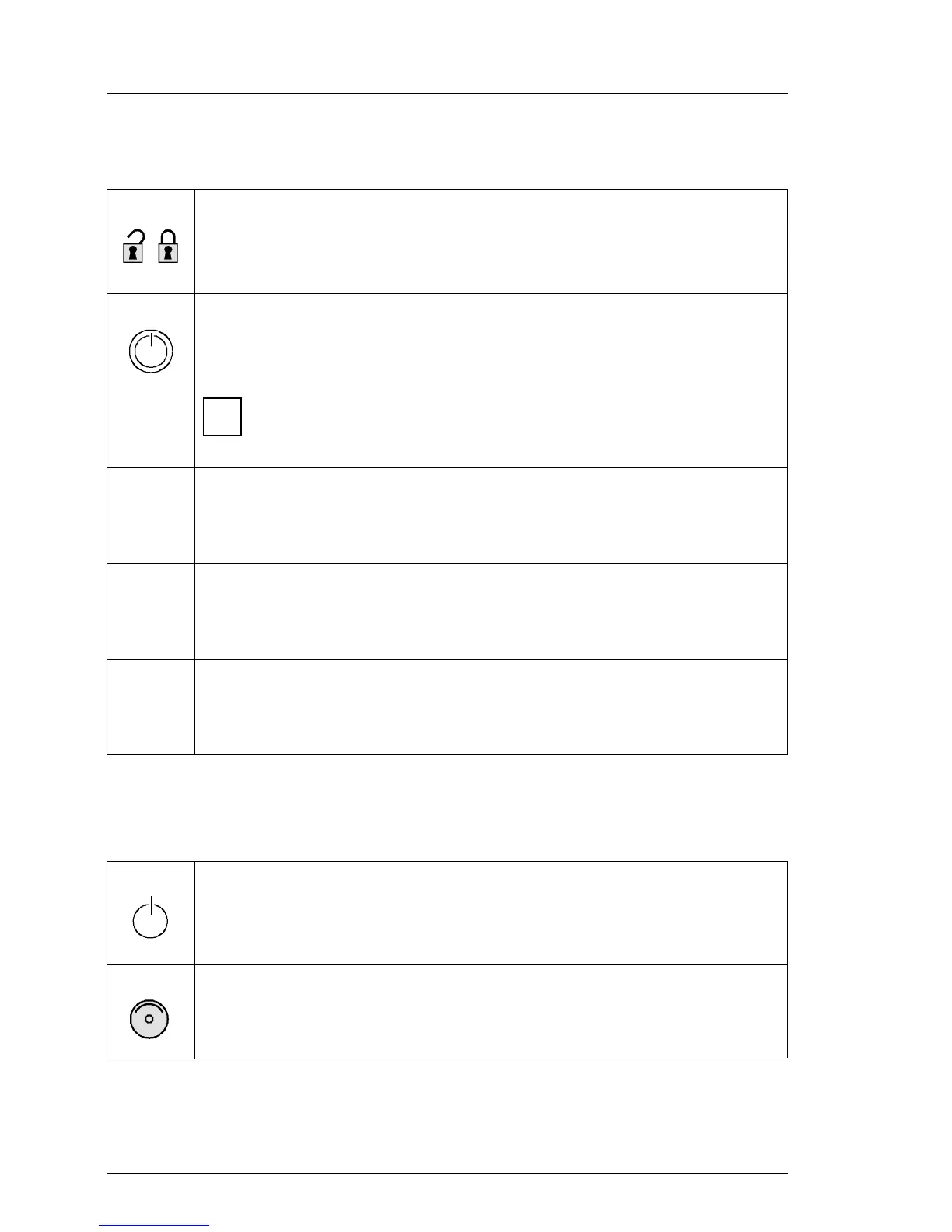

Operation controls
I
Indicators on the front panel
Lock
The floorstand model can be locked to unable the access to the drives.
ON/OFF button
When the system is switched off, it can be switched on by pressing the
ON/OFF button. When the system is operating, pressing the ON/OFF button
will switch it off.
The ON/OFF button does not disconnect the server from the line
voltage. To completely disconnect the line voltage, unplug the power
cable.
NMI NMI button
Pressing the NMI button starts an non-maskable interrupt.
The NMI button can only be activated with a pointed object (eg. bent
paperclip).
reset Reset button
Pressing the reset button restarts the System via BIOS.
The reset button can only be activated with a pointed object (eg. bent
paperclip).
ID ID button (localize)
Pressing the ID button lights up the integrated ID indicator on the front and
the ID indicator on the rear side of the server. The two ID indicators are
synchronized.
Operating status indicator (bicolor)
Lights orange when the server is switched off but it is connected to line
voltage (standby mode).
Lights green when the server is switched on.
Drive busy indicator (green)
Lights green when drives connected to the SCSI onboard controller are
being accessed (SCSI hard disk drive or backup drive).
i
