Add-on modules
For RSBS2 with or without accu pack use slot PCI slot 1, 4 or 5.
You find the slot sequence for main memory on page 02-TX150S2-108.

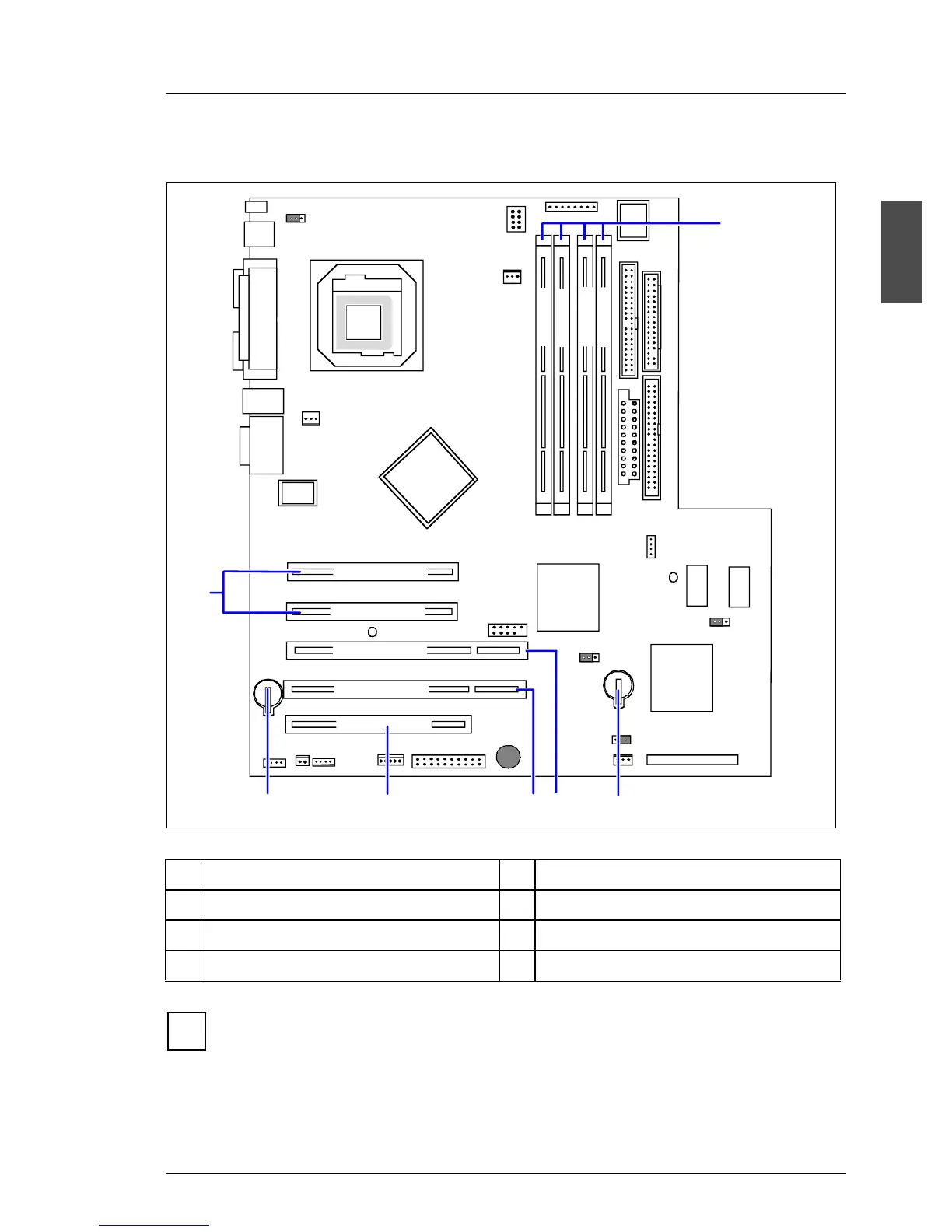

1 Locations for main memory 5 PCI slot 32bit / 33MHz
2 Lithium battery (3V) 5 Lithium battery (3V)
3 PCI slot 64bit / 66MHz 7 PCI slots 32bit / 33MHz
4 PCI slot 64bit / 66MHz, ZCR
7
62
1
DIMM_1B
PCI slot 5
DIMM_0B
PCI slot 4
PCI slot 1
PCI slot 2
PCI slot 3
DIMM_1A DIMM_0A
1
1
1
DIMM0 DIMM1 DIMM2 DIMM3
