Fujitsu PRIMERGY TX150 S2 - Page 78

02–TX150S2–78 July 2004 U41057-J19-Z146-1-76
Opening/closing the server Removal/installation routines

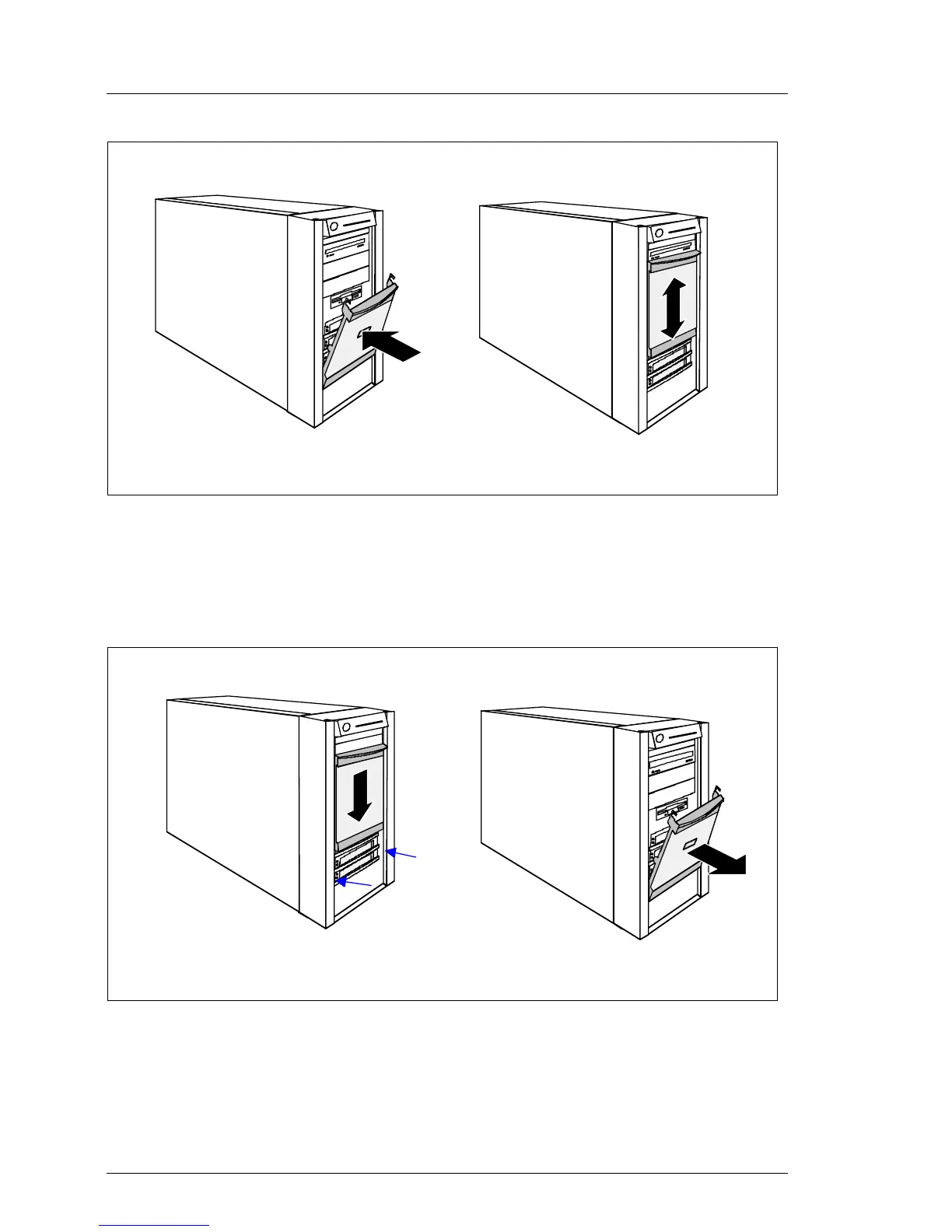

Ê Push backwards the top end of the cover of the accessible drives (1).
Ê Now you can slide the cover of the accessible drives up and down (2).
Removing
Ê Slide the cover of the accessible drives to the position marked (1).
1
2
1
2
