U41057-J19-Z146-1-76 July 2004 02–TX150S2–79
Removal/installation routines Opening/closing the server
© Siemens Nixdorf Informationssysteme AG 1995 Pfad: P:\02-systemeinheiten\TX150S2\TX150S2-e\TX150S2-e.k04
Ê Pull forwards the top end of the cover of the accessible drives and remove it
(2).
When you remove the cover make sure that the both guide notches
(topside) are not damaged.

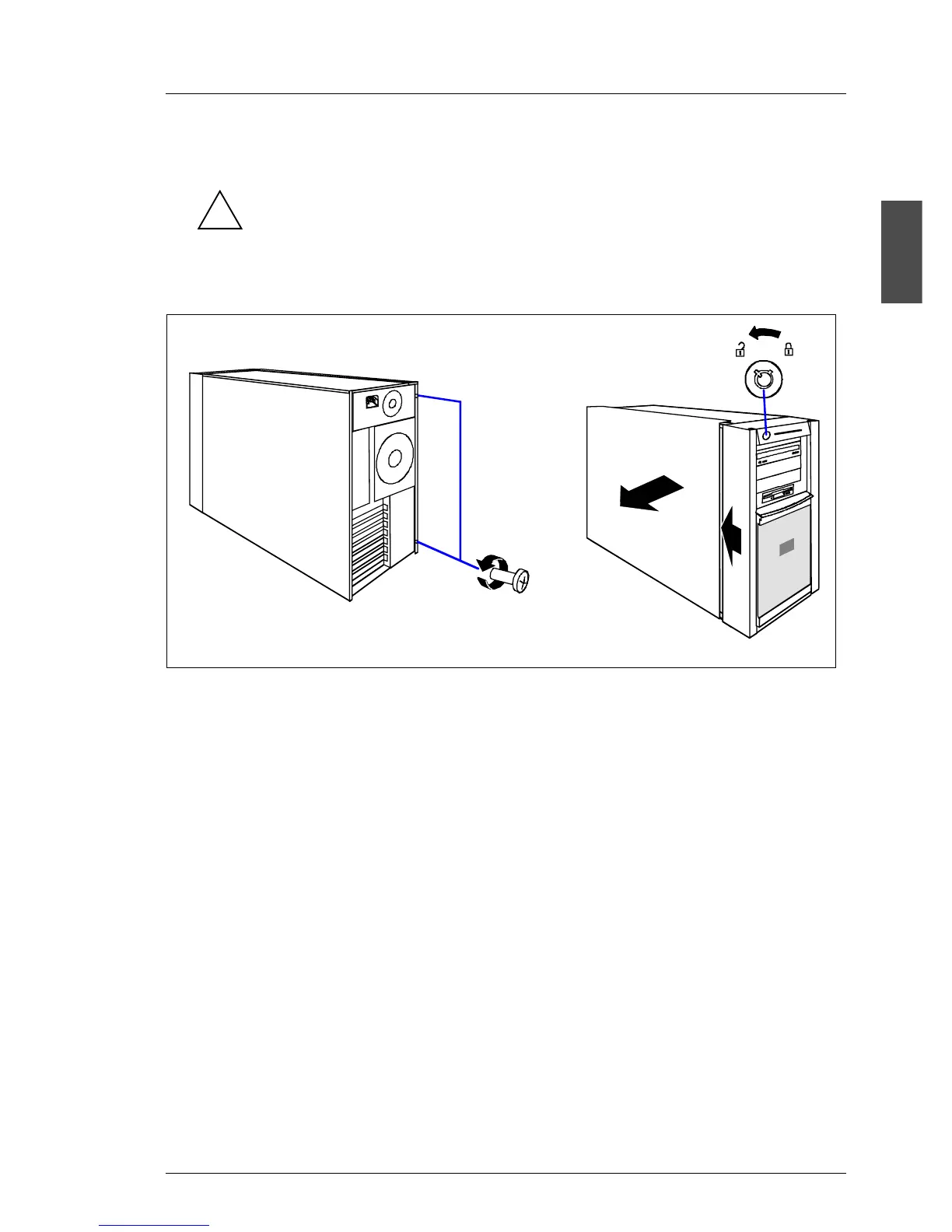

Removing/Installing the left side cover
Ê Unlock the server (1).
Ê Remove the two screws (2) at the rear.
Ê Push back the left side cover in the direction marked (3).
Ê Remove the left side cover (4).
Installation is performed in reverse order.
!
1
4
2
3
