Components and indicators of the hard disk module
The hard disk drives which can be ordered for the server are supplied already
mounted in the hard disk modules. The modules are equipped with a status
indicator and an error indicator. Empty bays are covered with dummy covers.
Functions of the indicators
Green indicator: The green indicator lights up when a hard disk drive is
being accessed. The hard disk module cannot be replaced
at this time!
Orange indicator: The orange LED flashes when, in conjunction with a RAID
controller, the configuration is being determined or a
rebuild is being done. You may not replace the hard disk
module at this time!
The orange LED remains lit if the hard disk drive is deacti-
vated and/or defective and can be replaced.

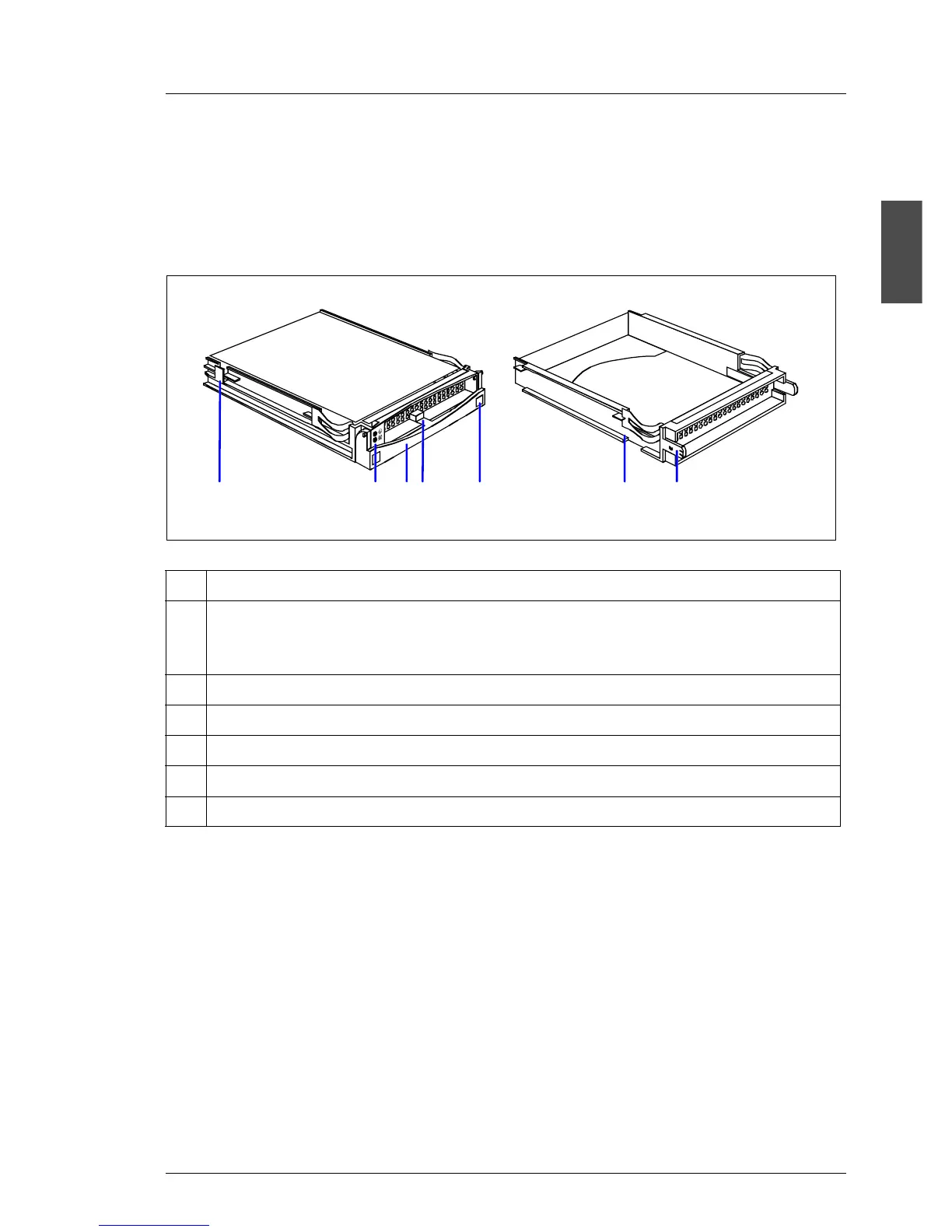

1 Hard disk module (hard disk carrier with installed hard disk drive)
2 Indicators
HDD access (LED green)
HDD error (LED orange)
3 Swivelling handle for engaging and disengaging the hard disk module
4 Locking button
5 Ridge for the application of a sticker with the current drive size
6 Dummy cover
7 Locking tabs
1234567
