02–TX150S2–86 July 2004 U41057-J19-Z146-1-76
Hard disk subsystem Removal/installation routines
Installing/removing a hard disk module
Requirements:
– hard disk cover has been removed
In order to be able to recognize a hard disk drive’s capacity at once when
replaced, several prefabricated stickers displaying imprinted storage
capacities are provided with the server. Each hard disk module should be
labeled with a sticker indicating the capacity of the installed hard disk
drive. In case no suitable sticker is available, blank stickers for labeling
are also provided. The stickers are color coded for an easier identifi-
cation.
If a hard disk module is to be installed in a bay in which no hard disk module
was previously installed, then the dummy cover must be removed from this bay
beforehand.

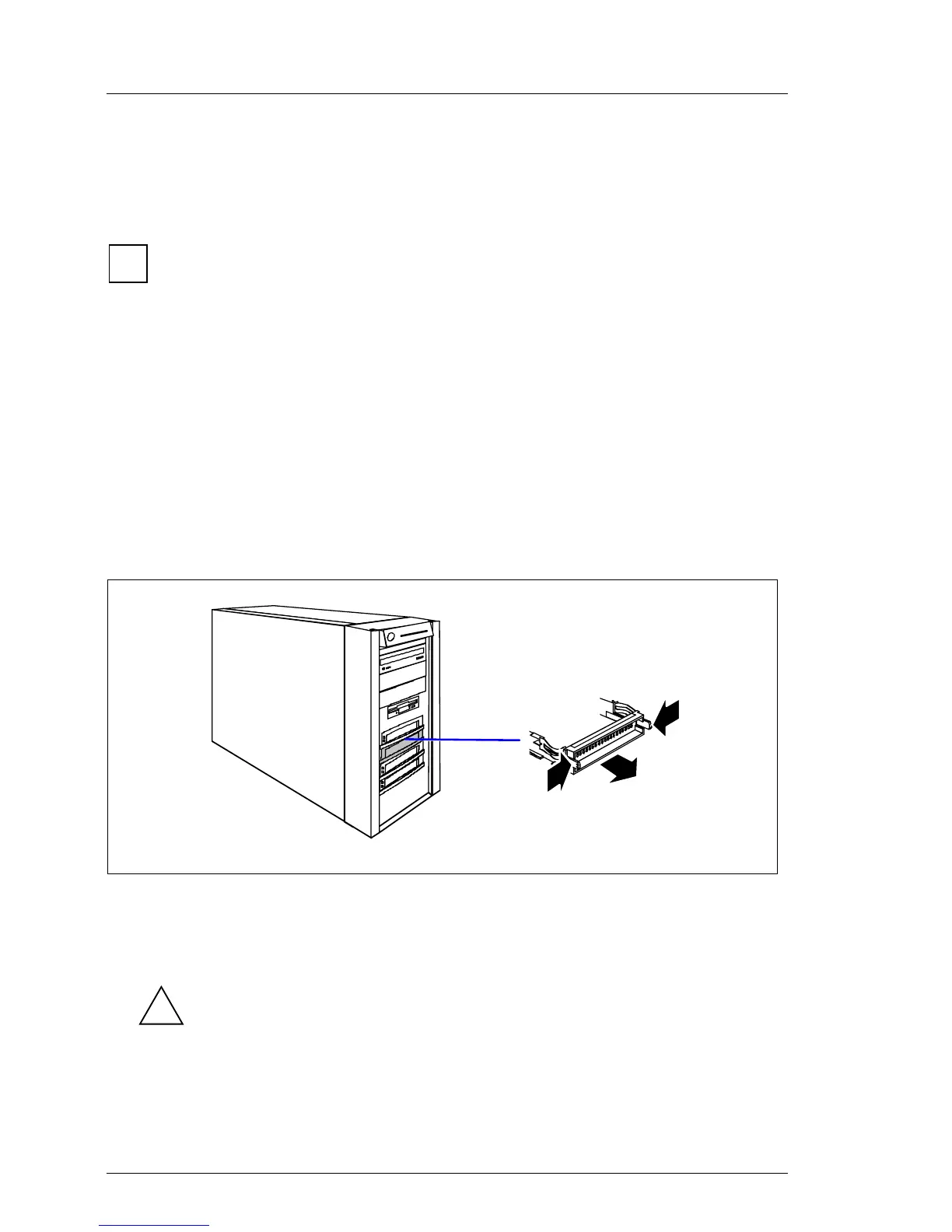

Removing the dummy cover
Ê Press the two locking tabs at the left and right on the dummy cover together
(1) until the detent is released.
Ê Remove the dummy cover from the bay (2).
Keep the dummy cover for future use. If the hard disk module is
removed again and not replaced with a new module, then the dummy
cover must be reinstalled due cooling, the applicable EMC regula-
tions (electromagnetic compatibility) and satisfy cooling requirements
and fire protection measures.
i
1
1
2
1
!
