Removal/installation routines Hard disk subsystem
© Siemens Nixdorf Informationssysteme AG 1995 Pfad: P:\02-systemeinheiten\TX150S2\TX150S2-e\TX150S2-e.k04

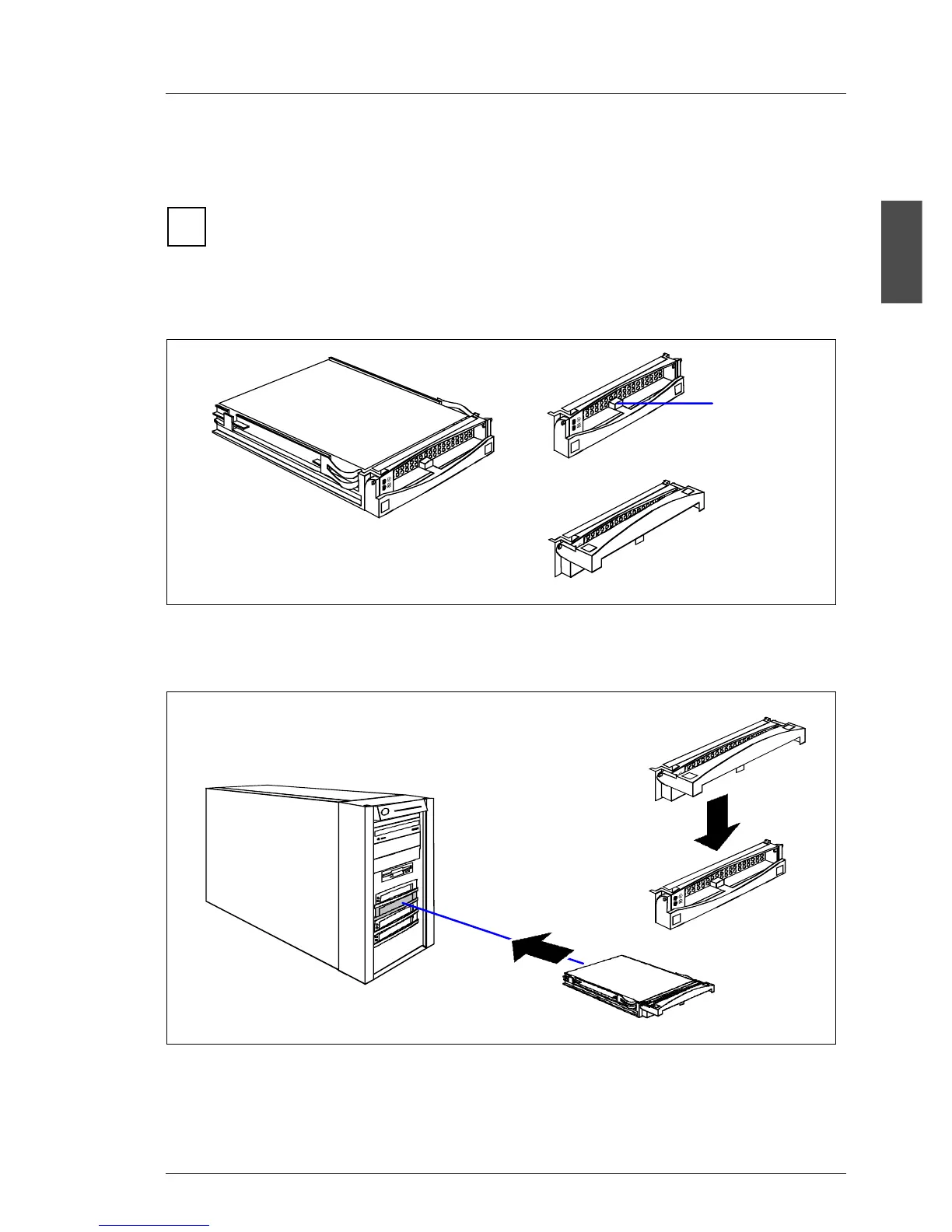

Installing the dummy cover
Ê Insert the dummy cover into the empty bay.
Make sure that the dummy cover engages properly in the bay on each
side.
Installing SCSI hard disk module
Ê Solve the locking mechanism (1) by pressing the locking button.
Ê Swing the handle of the hard disk module fully upwards (2).
Ê Insert the new hard disk module (1).
i
1
2
2
1
1
