Fujitsu PRIMERGY TX200 S2 - Page 177

177
PRIMERGY TX200 S2 User’s Guide
Installing hardware options
7

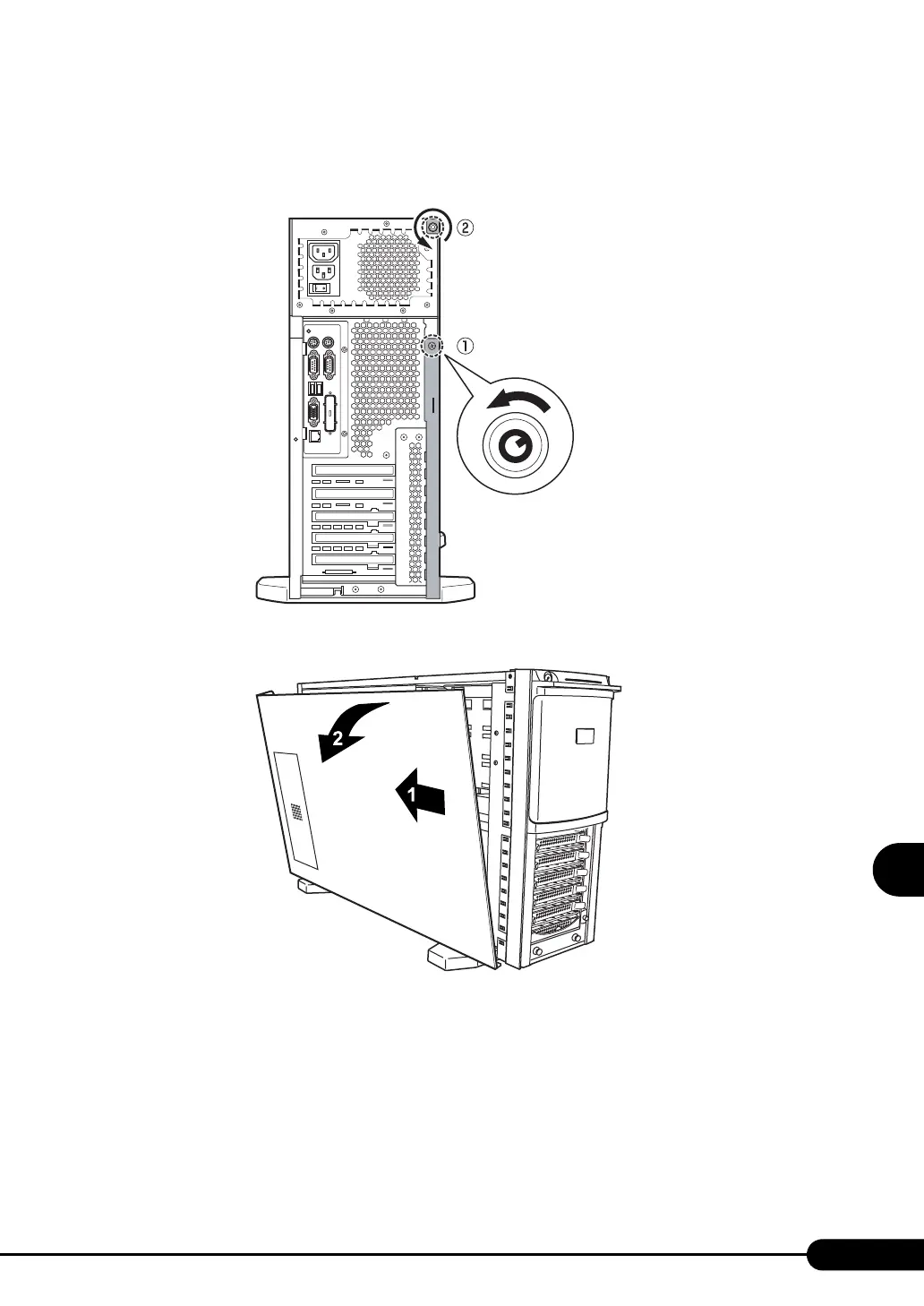

4 Remove the side cover.
1. Release the side cover lock on the rear side (1) and remove the screw (2).
Turn the side cover key counterclockwise to unlock the cover.
2. Slowly slide the side cover to the rear side, and then tilt it toward you to remove it
from the server.
Side cover key
