PRIMERGY TX200 S2 User’s Guide
Installing hardware options
7

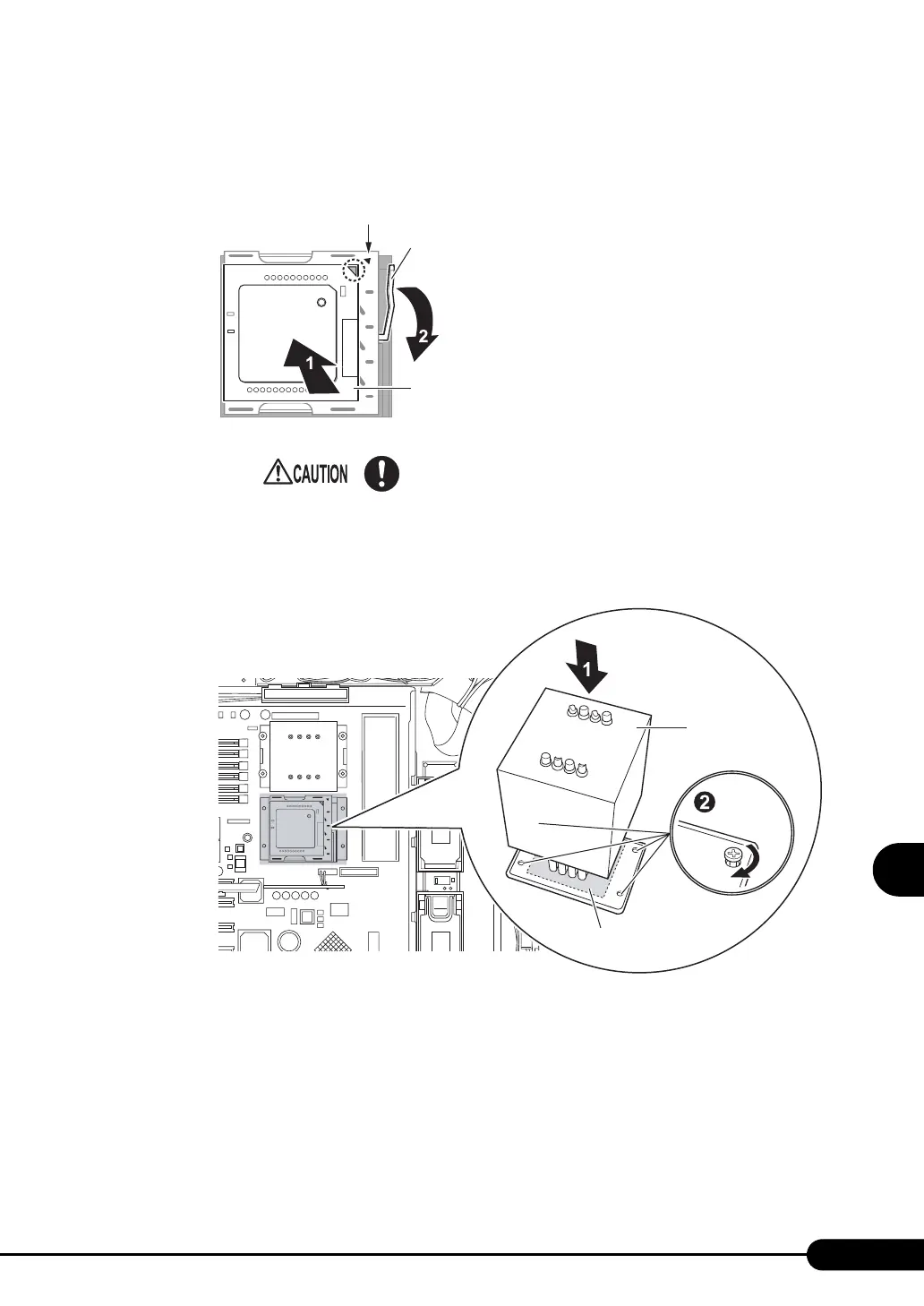

8 Install the CPU.
Align the triangle on the CPU socket (pin 1 marking) with the triangle on the CPU, and insert the
pins into the socket. Return the socket lever to the original position.
9 Install the heat sink.
Attach the heat sink to the installed CPU and fasten it with the screws.
Carefully tighten the screws in diagonal order.
• When installing the CPU in the socket, be careful not to bend CPU
pins.
Socket leve
r
CPU
Pin 1 marking
Heat sink
CPU
