PRIMERGY TX200 S2 User’s Guide
Installing hardware options
7

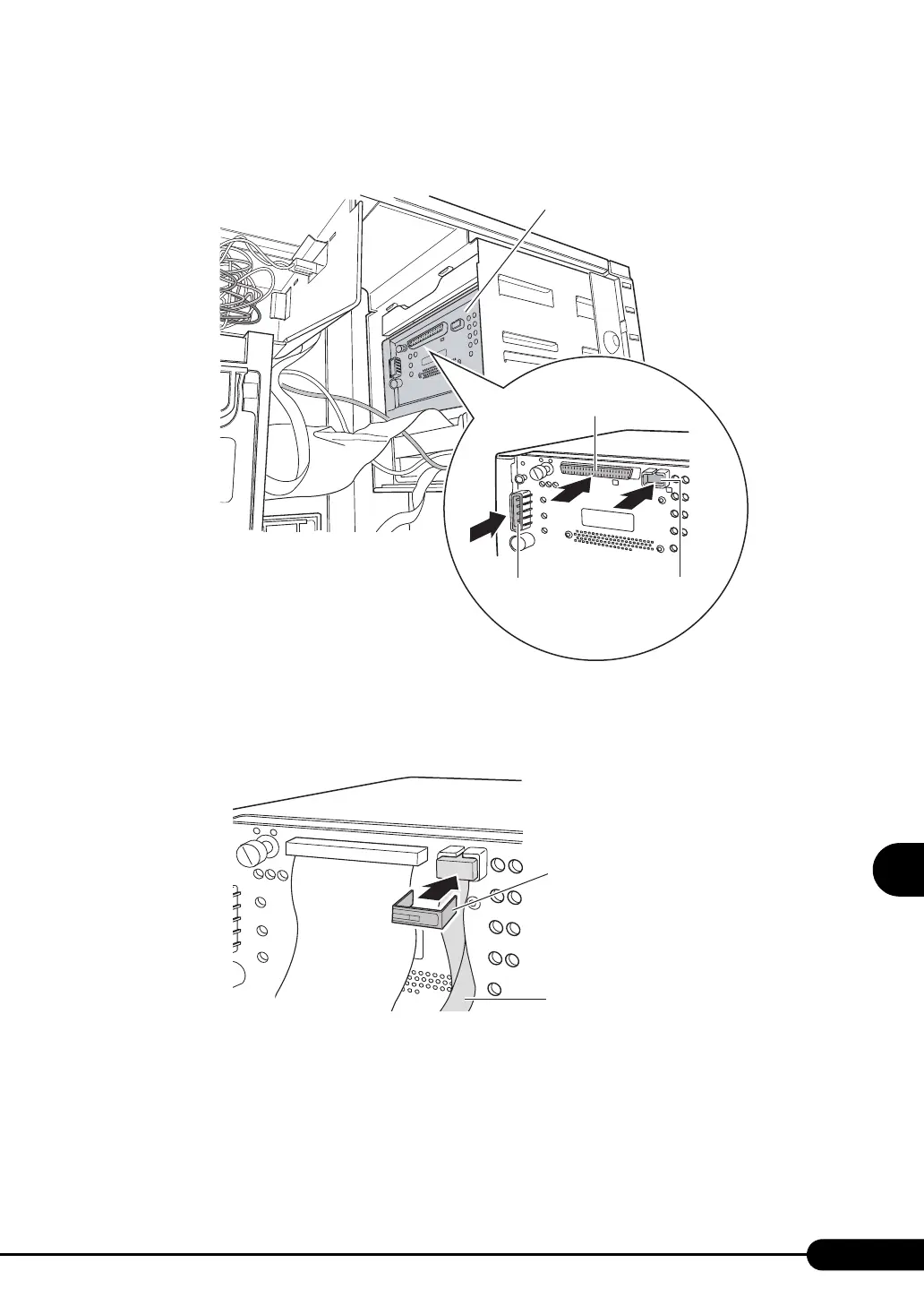

9 Connect the SCSI cable, power cable, and SMB cable to the internal hard disk
unit bay conversion kit.
10 Install the cable clamp to the SMB cable connector to fasten the SMB cable.
SCSI cable
SMB cable
Power cable
Internal hard disk unit bay conversion kit
Cable clamp
SMB cable
[Internal hard disk unit bay conversion kit - Rear]
