Chapter 7 Installing Hardware Options
11 Connect the SCSI cable to the onboard SCSI or RAID Ctrl 2-Channel 128MB
w/ BBU (PG-142E3).

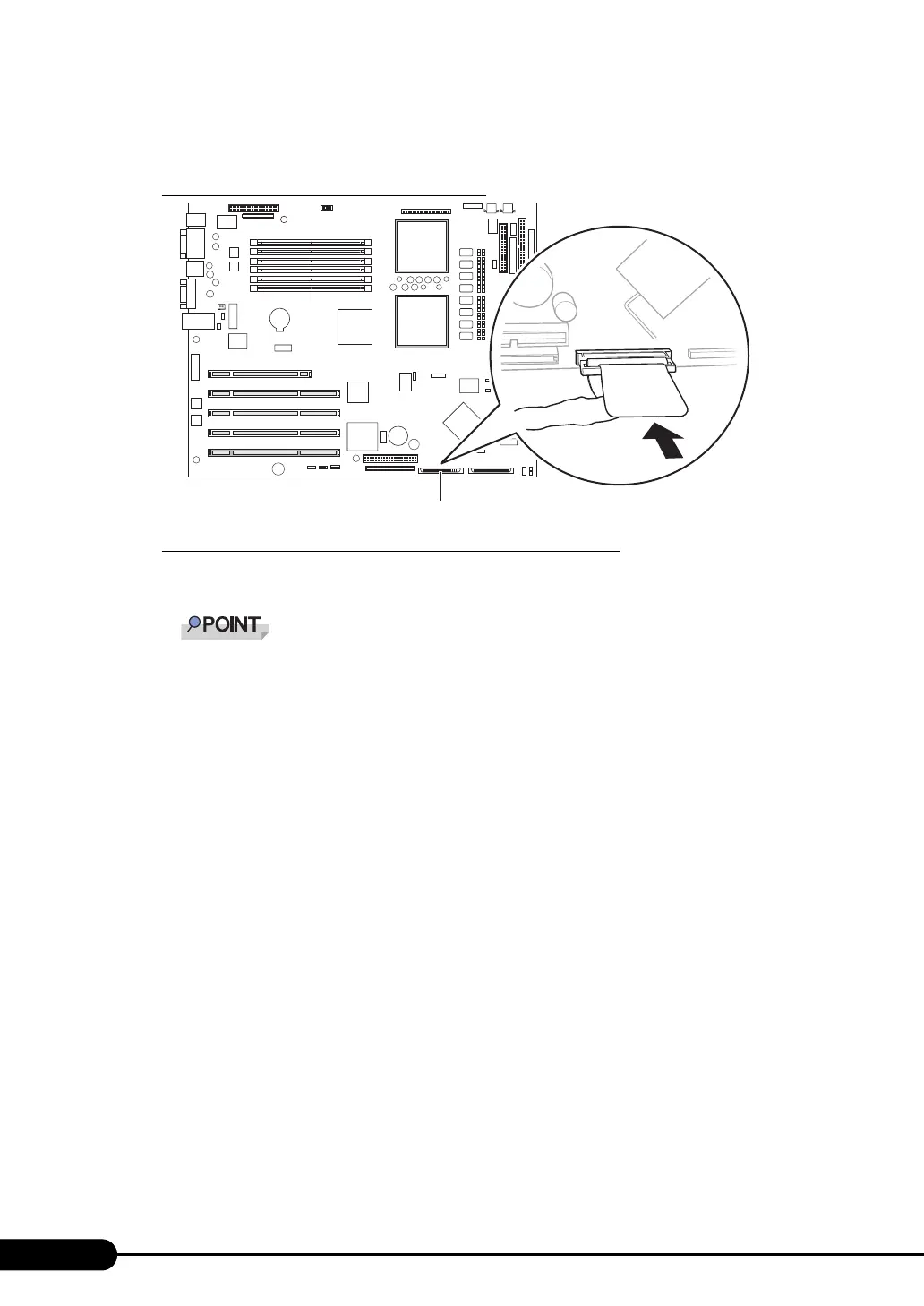

When connecting to the onboard SCSI port
When connecting to the RAID Ctrl 2-Channel 128MB w/ BBU
For how to install the RAID Ctrl 2-Channel 128MB w/ BBU, refer to "7.5.3 How to Install an
Expansion Card" (
pg.202).
For details about connection patterns refer to "■ Connections" (pg.209). The internal hard
disk unit bay conversion kit is connected in a 2ch configuration.
12 Attach the ventilation system cover.
Make sure to avoid pinching cables when attaching.
13 Attach the front and side covers.
Onboard SCSI connector B
