GE 269Plus

GE Power Management 269Plus Motor Management Relay 8- 7

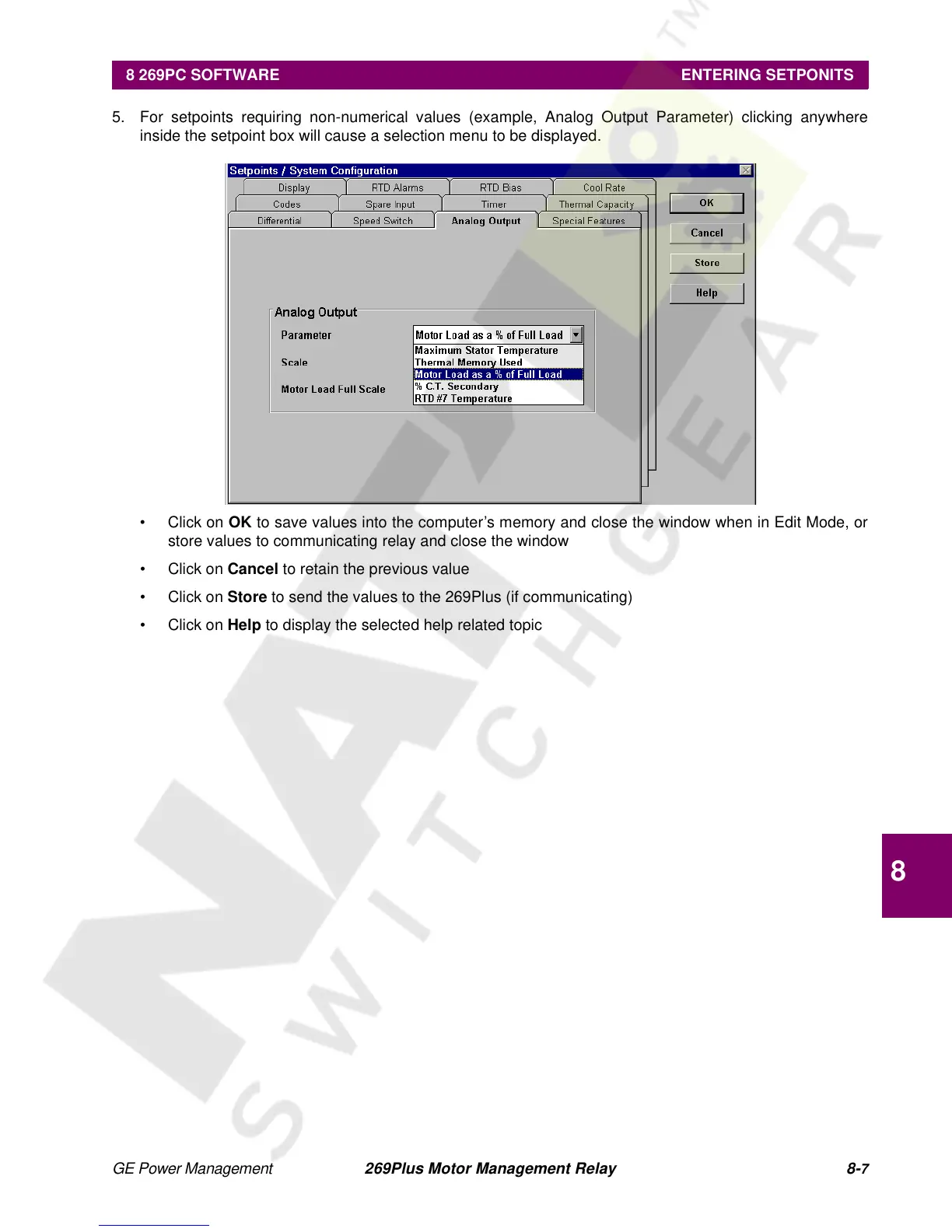

8 269PC SOFTWARE ENTERING SETPONITS
8
5. For setpoints requiring non-numerical values (example, Analog Output Parameter) clicking anywhere
inside the setpoint box will cause a selection menu to be displayed.
•ClickonOK to save values into the computer’s memory and close the window when in Edit Mode, or
store values to communicating relay and close the window
•ClickonCancel to retain the previous value
•ClickonStore to send the values to the 269Plus (if communicating)
•ClickonHelp to display the selected help related topic
