GE 269Plus User Manual

GE Power Management 269Plus Motor Management Relay 8- 9
8 269PC SOFTWARE LOADING SETPONTS FROM A FILE
8

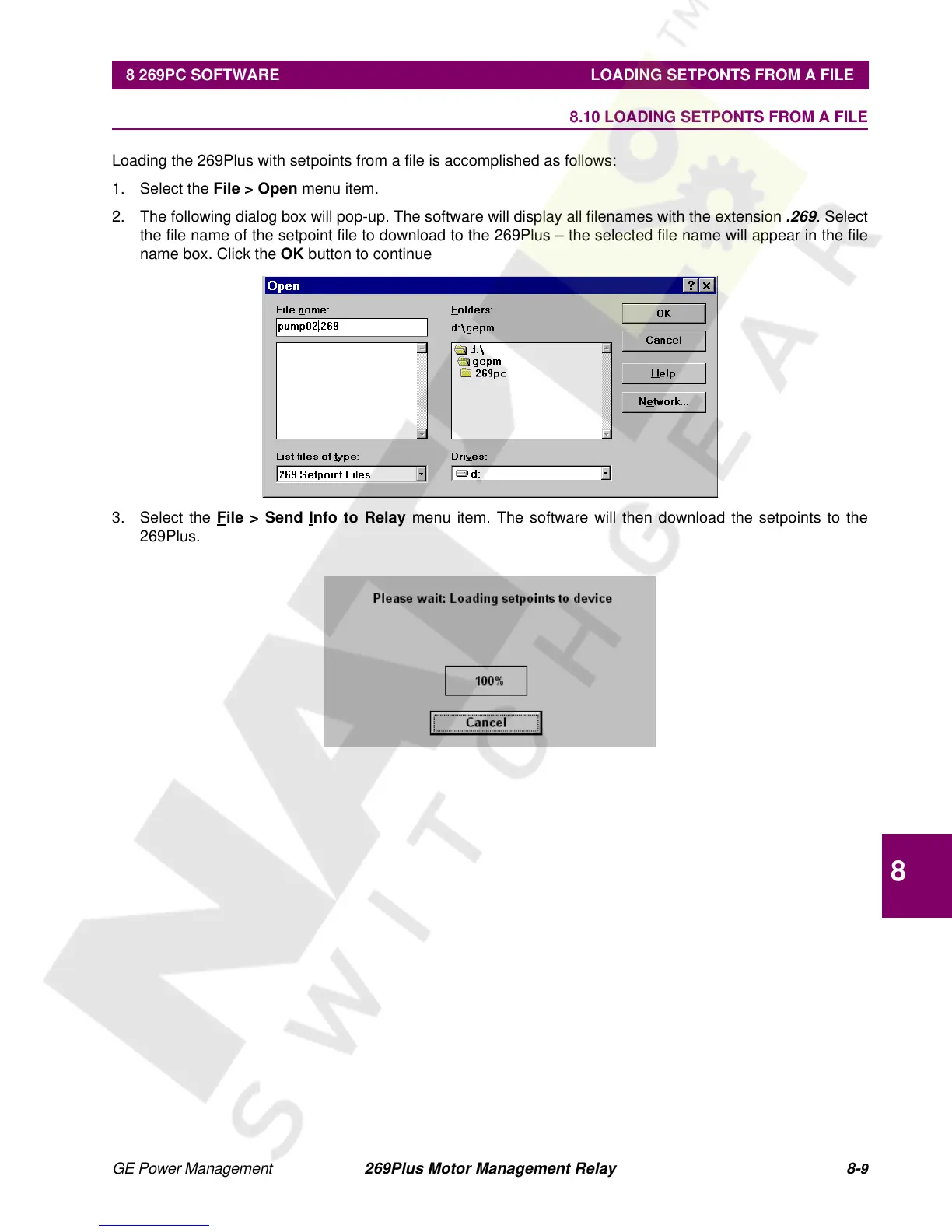

8.10 LOADING SETPONTS FROM A FILE
Loading the 269Plus with setpoints from a file is accomplished as follows:
1. Select the File > Open menu item.
2. The following dialog box will pop-up. The software will display all filenames with the extension
.269 . Select
the file name of the setpoint file to download to the 269Plus – the selected file name will appear in the file
name box. Click the OK button to continue
3. Select the F
ile > Send Info to Relay menu item. The software will then download the setpoints to the
269Plus.
