GE 269Plus

GE Power Management 269Plus Motor Management Relay 1- 9
1 INTRODUCTION MPM OPTION SPECIFICATIONS
1

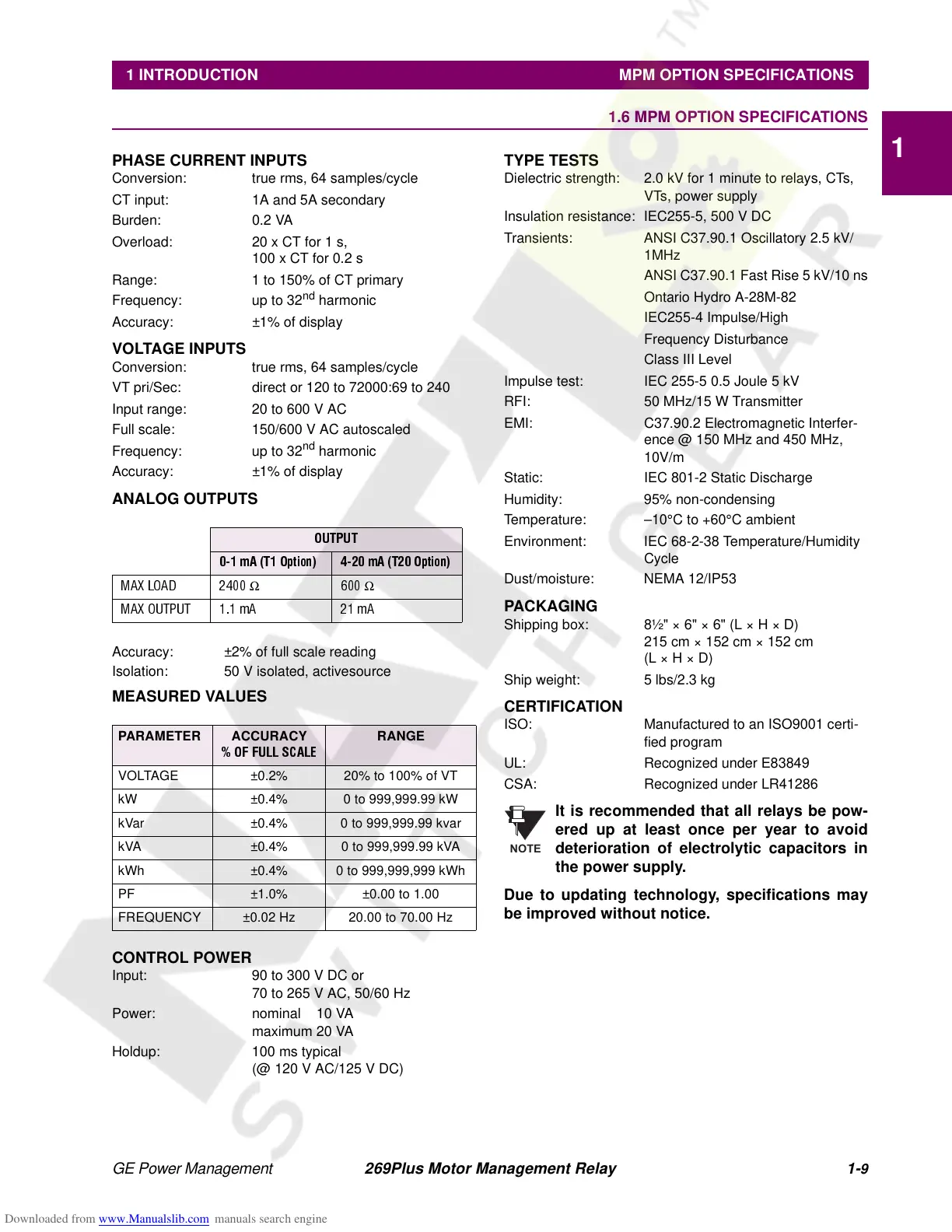

1.6 MPM OPTION SPECIFICATIONS
PHASE CURRENT INPUTS
Conversion: true rms, 64 samples/cycle
CT input: 1A and 5A secondary
Burden: 0.2 VA
Overload: 20 x CT for 1 s,
100 x CT for 0.2 s
Range: 1 to 150% of CT primary
Frequency: up to 32
nd
harmonic
Accuracy: ±1% of display
VOLTAGE INPUTS
Conversion: true rms, 64 samples/cycle
VT pri/Sec: direct or 120 to 72000:69 to 240
Input range: 20 to 600 V AC
Full scale: 150/600 V AC autoscaled
Frequency: up to 32
nd
harmonic
Accuracy: ±1% of display
ANALOG OUTPUTS
Accuracy: ±2% of full scale reading
Isolation: 50 V isolated, activesource
MEASURED VALUES
CONTROL POWER
Input: 90 to 300 V DC or
70 to 265 V AC, 50/60 Hz
Power: nominal 10 VA
maximum 20 VA
Holdup: 100 ms typical
(@ 120 V AC/125 V DC)
TYPE TESTS
Dielectric strength: 2.0 kV for 1 minute to relays, CTs,
VTs, power supply
Insulation resistance: IEC255-5, 500 V DC
Transients: ANSI C37.90.1 Oscillatory 2.5 kV/
1MHz
ANSI C37.90.1 Fast Rise 5 kV/10 ns
Ontario Hydro A-28M-82
IEC255-4 Impulse/High
Frequency Disturbance
Class III Level
Impulse test: IEC 255-5 0.5 Joule 5 kV
RFI: 50 MHz/15 W Transmitter
EMI: C37.90.2 Electromagnetic Interfer-
ence @ 150 MHz and 450 MHz,
10V/m
Static: IEC 801-2 Static Discharge
Humidity: 95% non-condensing
Temperature: –10°C to +60°C ambient
Environment: IEC 68-2-38 Temperature/Humidity
Cycle
Dust/moisture: NEMA 12/IP53
PACKAGING
Shipping box: 8½" × 6" × 6" (L × H × D)
215cm×152cm×152cm
(L × H × D)
Ship weight: 5 lbs/2.3 kg
CERTIFICATION
ISO: Manufactured to an ISO9001 certi-
fied program
UL: Recognized under E83849
CSA: Recognized under LR41286
It is recommended that all relays be pow-
ered up at least once per year to avoid
deterioration of electrolytic capacitors in
the power supply.
Due to updating technology, specifications may
be improved without notice.
OUTPUT
0-1 mA (T1 Option) 4-20 mA (T20 Option)
MAX LOAD 2400 Ω 600 Ω
MAX OUTPUT 1.1 mA 21 mA
PARAMETER ACCURACY
% OF FULL SCALE
RANGE
VOLTAGE ±0.2% 20% to 100% of VT
kW ±0.4% 0 to 999,999.99 kW
kVar ±0.4% 0 to 999,999.99 kvar
kVA ±0.4% 0 to 999,999.99 kVA
kWh ±0.4% 0 to 999,999,999 kWh
PF ±1.0% ±0.00 to 1.00
FREQUENCY ±0.02 Hz 20.00 to 70.00 Hz
NOTE
