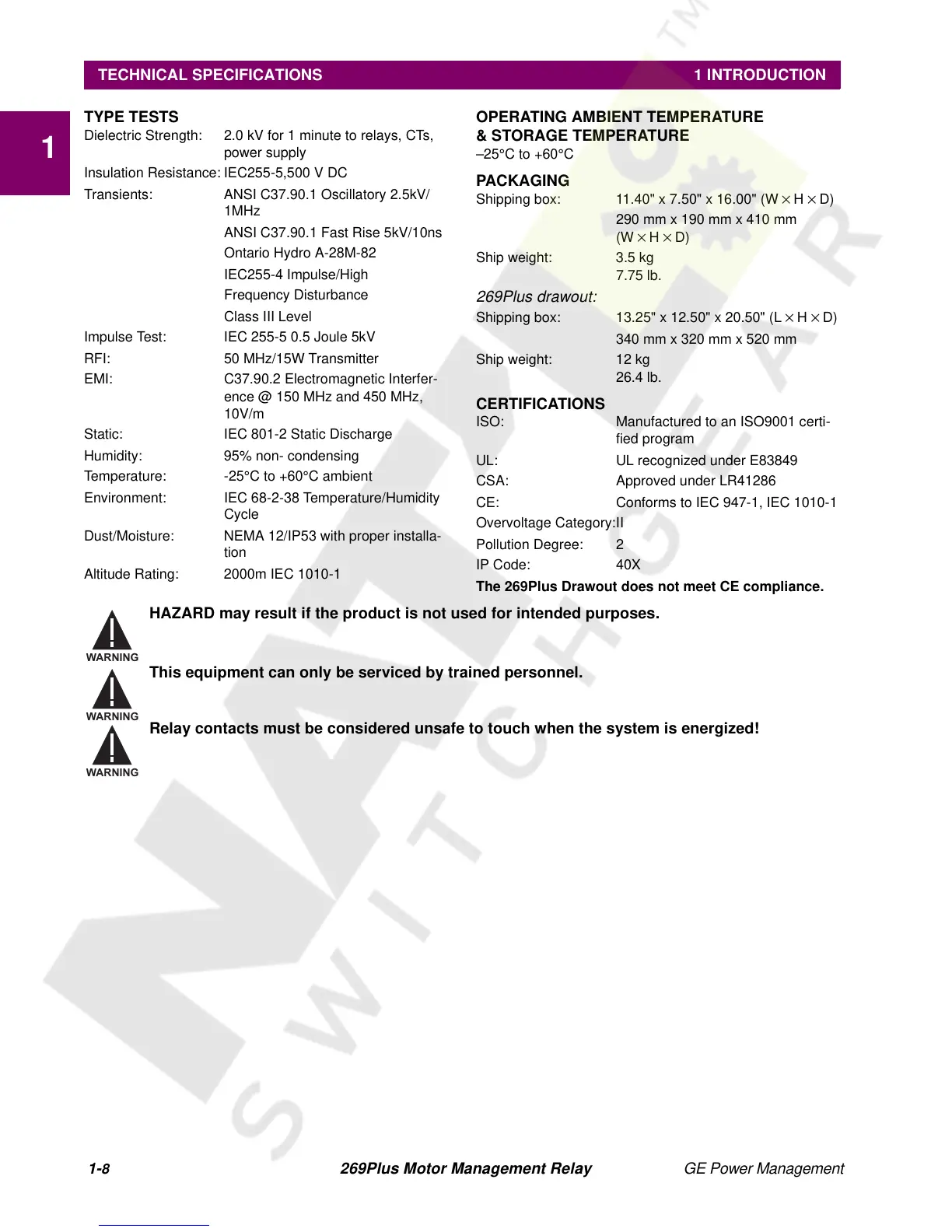

1- 8 269Plus Motor Management Relay GE Power Management
TECHNICAL SPECIFICATIONS 1 INTRODUCTION
1
TYPE TESTS
Dielectric Strength: 2.0 kV for 1 minute to relays, CTs,
power supply
Insulation Resistance: IEC255-5,500 V DC
Transients: ANSI C37.90.1 Oscillatory 2.5kV/
1MHz
ANSI C37.90.1 Fast Rise 5kV/10ns
Ontario Hydro A-28M-82
IEC255-4 Impulse/High
Frequency Disturbance
Class III Level
Impulse Test: IEC 255-5 0.5 Joule 5kV
RFI: 50 MHz/15W Transmitter
EMI: C37.90.2 Electromagnetic Interfer-
ence @ 150 MHz and 450 MHz,
10V/m
Static: IEC 801-2 Static Discharge
Humidity: 95% non- condensing
Temperature: -25°C to +60°C ambient
Environment: IEC 68-2-38 Temperature/Humidity
Cycle
Dust/Moisture: NEMA 12/IP53 with proper installa-
tion
Altitude Rating: 2000m IEC 1010-1
OPERATING AMBIENT TEMPERATURE
& STORAGE TEMPERATURE
–25°C to +60°C
PACKAGING
Shipping box: 11.40" x 7.50" x 16.00" (W × H × D)
290mmx190mmx410mm
(W × H × D)
Ship weight: 3.5 kg
7.75 lb.
269Plus drawout:
Shipping box: 13.25" x 12.50" x 20.50" (L × H × D)
340mmx320mmx520mm
Ship weight: 12 kg
26.4 lb.
CERTIFICATIONS
ISO: Manufactured to an ISO9001 certi-
fied program
UL: UL recognized under E83849
CSA: Approved under LR41286
CE: Conforms to IEC 947-1, IEC 1010-1
Overvoltage Category:II
Pollution Degree: 2
IP Code: 40X
The 269Plus Drawout does not meet CE compliance.
HAZARD may result if the product is not used for intended purposes.
This equipment can only be serviced by trained personnel.
Relay contacts must be considered unsafe to touch when the system is energized!
WARNING
WARNING
WARNING
