3 SETUP AND USE FRONT PANEL
3
269 INSTRUCTION MANUAL 3 SETUP AND USE 3.1 FRONT PANEL
Once the 269Plus has been wired and control power applied, it is ready to be programmed. Programming is
accomplished using the 12-position keypad and 48-character alphanumeric display shown below. The function
of the keypad and indicators is briefly explained in Table 3–1: CONTROLS AND INDICATORS on page 3–2.

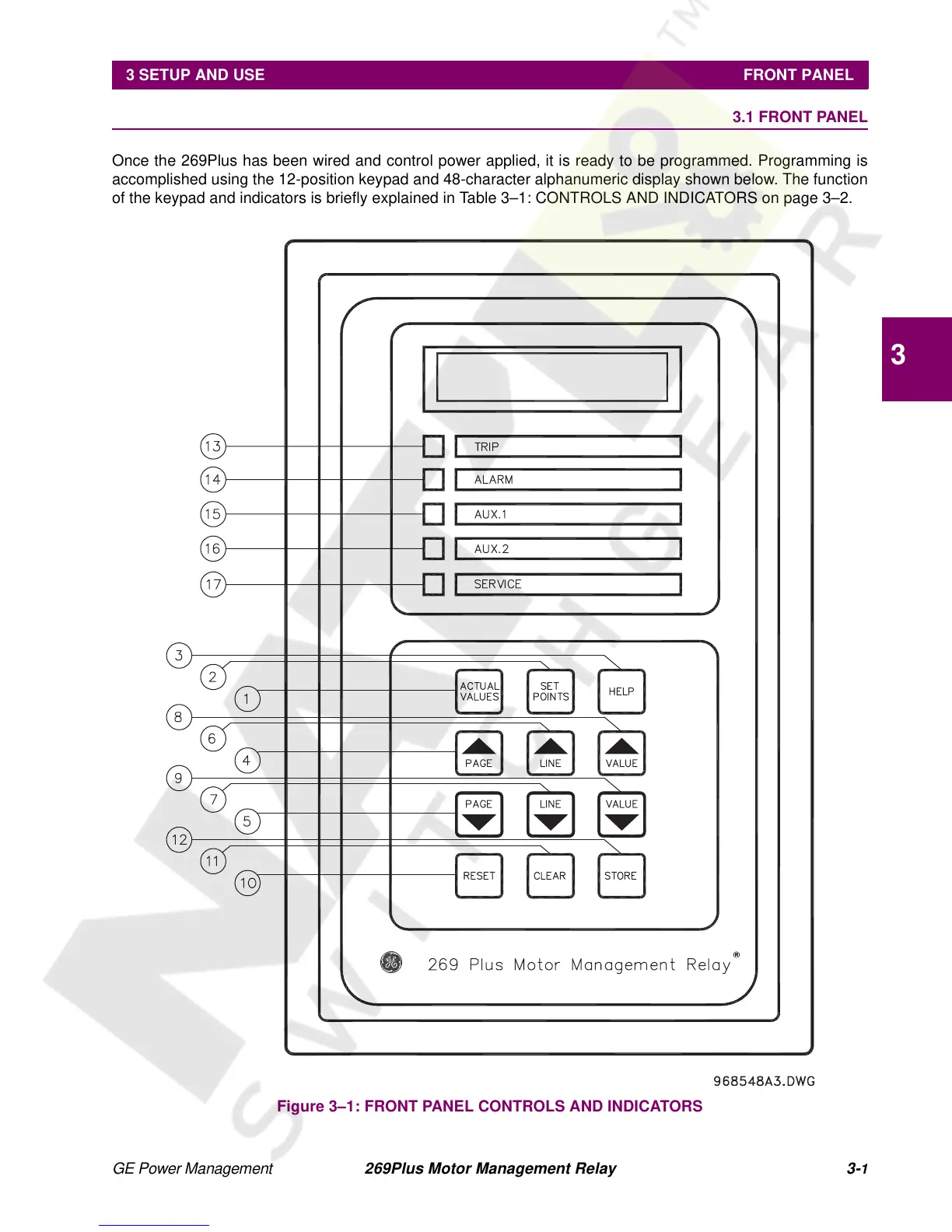

Figure 3–1: FRONT PANEL CONTROLS AND INDICATORS
