GE Power Management 269Plus Motor Management Relay 3-
7
3 SETUP AND USE ACTUAL VALUES MODE
3
3.4 ACTUAL VALUES MODE
In ACTUAL VALUES mode, any of the parameters monitored or calculated by the 269Plus may be viewed by
the user. This mode is divided into seven separate pages of data, each of which contains a different group of
actual motor values. The contents of these pages are shown in the table below:

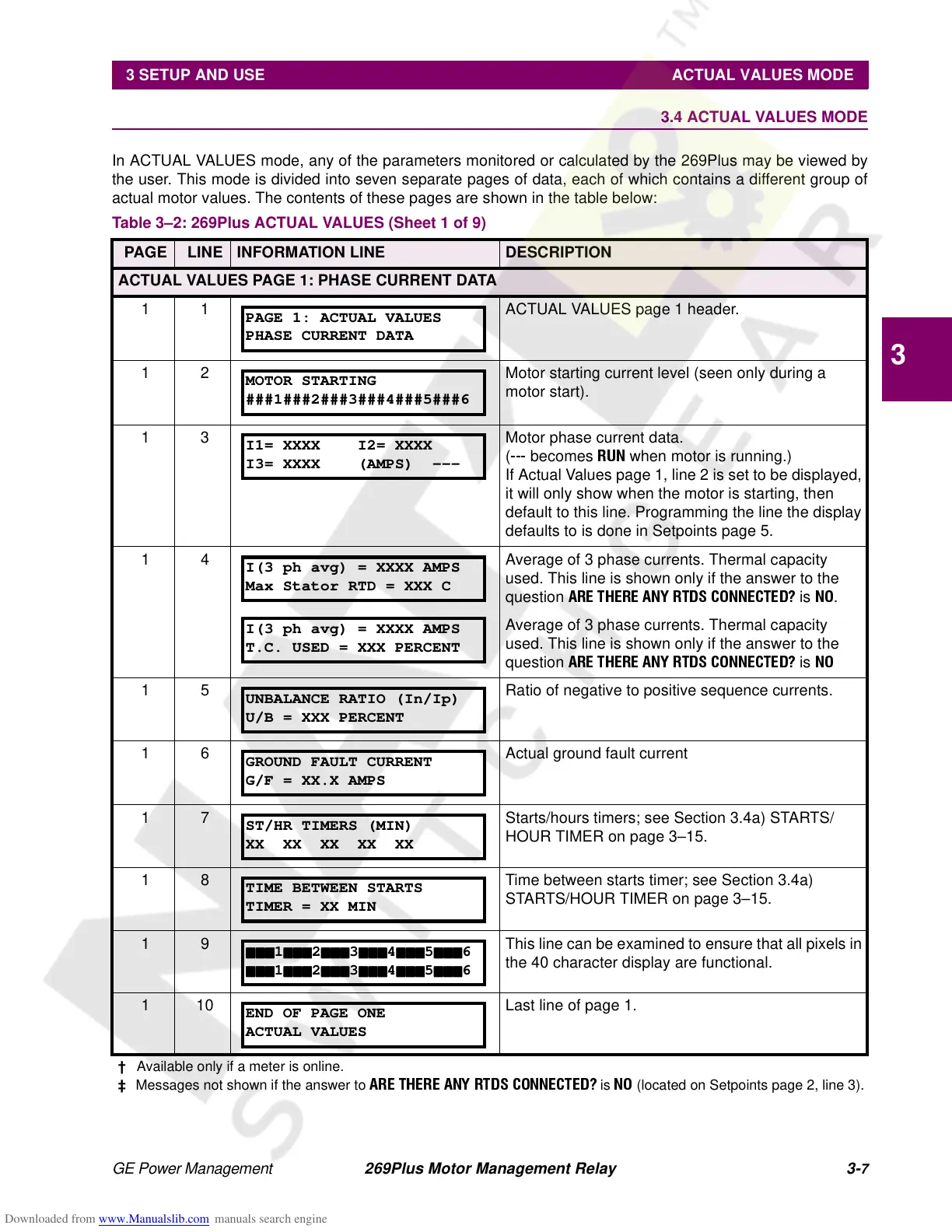

Table 3–2: 269Plus ACTUAL VALUES (Sheet 1 of 9)
PAGE LINE INFORMATION LINE DESCRIPTION
ACTUAL VALUES PAGE 1: PHASE CURRENT DATA
1 1 ACTUAL VALUES page 1 header.
1 2 Motor starting current level (seen only during a
motor start).
1 3 Motor phase current data.
(
---
becomes
RUN
when motor is running.)
If Actual Values page 1, line 2 is set to be displayed,
it will only show when the motor is starting, then
default to this line. Programming the line the display
defaults to is done in Setpoints page 5.
1 4 Average of 3 phase currents. Thermal capacity
used. This line is shown only if the answer to the
question
ARE THERE ANY RTDS CONNECTED?
is
NO
.
Average of 3 phase currents. Thermal capacity
used. This line is shown only if the answer to the
question
ARE THERE ANY RTDS CONNECTED?
is
NO
1 5 Ratio of negative to positive sequence currents.
1 6 Actual ground fault current
1 7 Starts/hours timers; see Section 3.4a) STARTS/
HOUR TIMER on page 3–15.
1 8 Time between starts timer; see Section 3.4a)
STARTS/HOUR TIMER on page 3–15.
1 9 This line can be examined to ensure that all pixels in
the 40 character display are functional.
1 10 Lastlineofpage1.
† Available only if a meter is online.
‡ Messages not shown if the answer to
ARE THERE ANY RTDS CONNECTED?
is
NO
(located on Setpoints page 2, line 3).
PAGE 1: ACTUAL VALUES
PHASE CURRENT DATA
MOTOR STARTING
###1###2###3###4###5###6
I1= XXXX I2= XXXX
I3= XXXX (AMPS) ---
I(3 ph avg) = XXXX AMPS
Max Stator RTD = XXX C
I(3 ph avg) = XXXX AMPS
T.C. USED = XXX PERCENT
UNBALANCE RATIO (In/Ip)
U/B = XXX PERCENT
GROUND FAULT CURRENT
G/F = XX.X AMPS
ST/HR TIMERS (MIN)
XX XX XX XX XX
TIME BETWEEN STARTS
TIMER = XX MIN
nnn
nnnnnn
nnn
1
nnn
nnnnnn
nnn
2
nnn
nnnnnn
nnn
3
nnn
nnnnnn
nnn
4
nnn
nnnnnn
nnn
5
nnn
nnnnnn
nnn
6
nnn
nnnnnn
nnn
1
nnn
nnnnnn
nnn
2
nnn
nnnnnn
nnn
3
nnn
nnnnnn
nnn
4
nnn
nnnnnn
nnn
5
nnn
nnnnnn
nnn
6
END OF PAGE ONE
ACTUAL VALUES
