269Plus Motor Management Relay GE Power Management
MEMORY MAP 4 COMMUNICATIONS
4

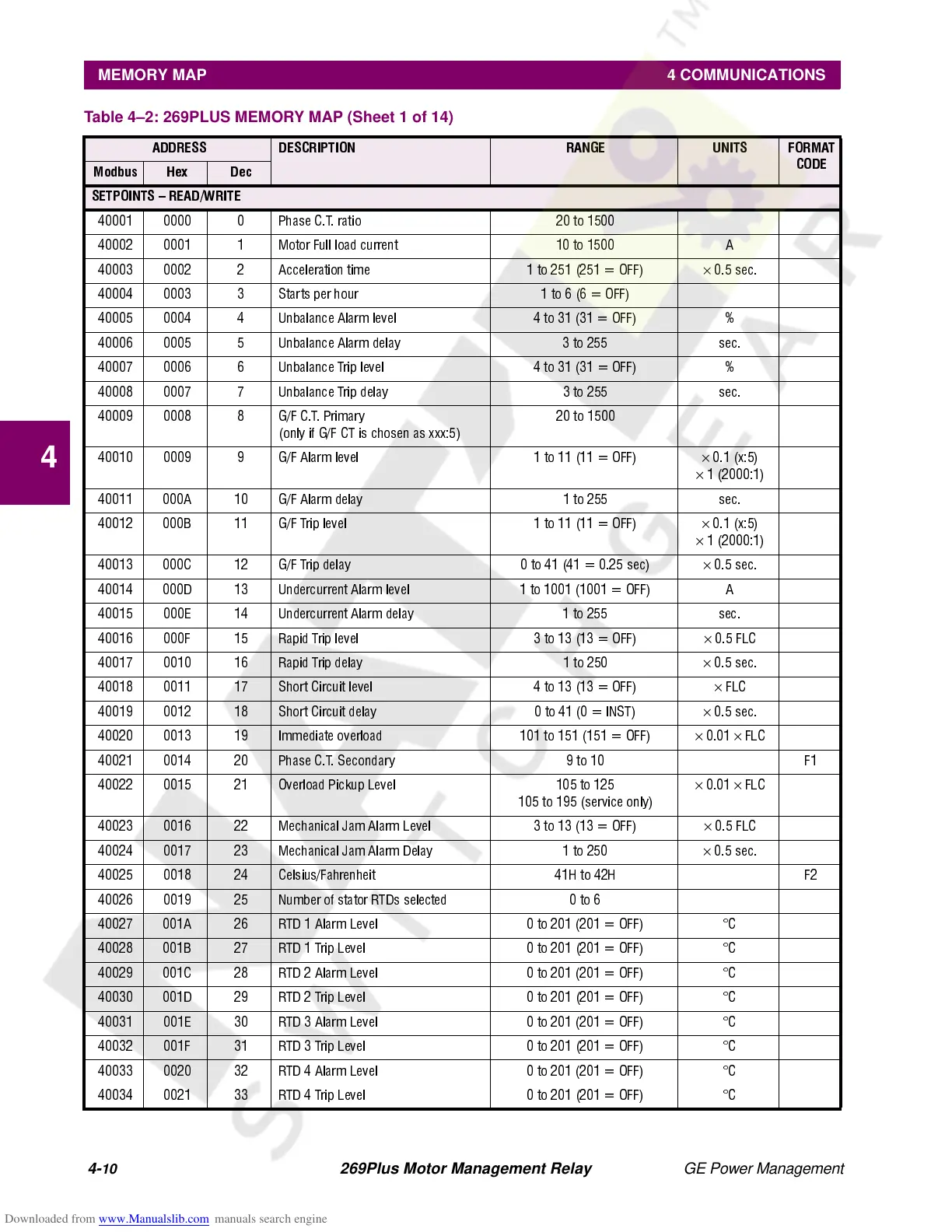

Table 4–2: 269PLUS MEMORY MAP (Sheet 1 of 14)
ADDRESS DESCRIPTION RANGE UNITS FORMAT
CODE
Modbus Hex Dec
SETPOINTS READ/WRITE
40001 0000 0 Phase C.T. ratio 20 to 1500
40002 0001 1 Motor Full load current 10 to 1500 A
40003 0002 2 Acceleration time 1 to 251 (251 = OFF)
×
0.5 sec.
40004 0003 3 Starts per hour 1 to 6 (6 = OFF)
40005 0004 4 Unbalance Alarm level 4 to 31 (31 = OFF) %
40006 0005 5 Unbalance Alarm delay 3 to 255 sec.
40007 0006 6 Unbalance Trip level 4 to 31 (31 = OFF) %
40008 0007 7 Unbalance Trip delay 3 to 255 sec.
40009 0008 8 G/F C.T. Primary
(only if G/F CT is chosen as xxx:5)
20 to 1500
40010 0009 9 G/F Alarm level 1 to 11 (11 = OFF)
×
0.1 (x:5)
×
1 (2000:1)
40011 000A 10 G/F Alarm delay 1 to 255 sec.
40012 000B 11 G/F Trip level 1 to 11 (11 = OFF)
×
0.1 (x:5)
×
1 (2000:1)
40013 000C 12 G/F Trip delay 0 to 41 (41 = 0.25 sec)
×
0.5 sec.
40014 000D 13 Undercurrent Alarm level 1 to 1001 (1001 = OFF) A
40015 000E 14 Undercurrent Alarm delay 1 to 255 sec.
40016 000F 15 Rapid Trip level 3 to 13 (13 = OFF)
×
0.5 FLC
40017 0010 16 Rapid Trip delay 1 to 250
×
0.5 sec.
40018 0011 17 Short Circuit level 4 to 13 (13 = OFF)
×
FLC
40019 0012 18 Short Circuit delay 0 to 41 (0 = INST)
×
0.5 sec.
40020 0013 19 Immediate overload 101 to 151 (151 = OFF)
×
0.01
×
FLC
40021 0014 20 Phase C.T. Secondary 9 to 10 F1
40022 0015 21 Overload Pickup Level 105 to 125
105 to 195 (service only)
×
0.01
×
FLC
40023 0016 22 Mechanical Jam Alarm Level 3 to 13 (13 = OFF)
×
0.5 FLC
40024 0017 23 Mechanical Jam Alarm Delay 1 to 250
×
0.5 sec.
40025 0018 24 Celsius/Fahrenheit 41H to 42H F2
40026 0019 25 Number of stator RTDs selected 0 to 6
40027 001A 26 RTD 1 Alarm Level 0 to 201 (201 = OFF) °C
40028 001B 27 RTD 1 Trip Level 0 to 201 (201 = OFF) °C
40029 001C 28 RTD 2 Alarm Level 0 to 201 (201 = OFF) °C
40030 001D 29 RTD 2 Trip Level 0 to 201 (201 = OFF) °C
40031 001E 30 RTD 3 Alarm Level 0 to 201 (201 = OFF) °C
40032 001F 31 RTD 3 Trip Level 0 to 201 (201 = OFF) °C
40033 0020 32 RTD 4 Alarm Level 0 to 201 (201 = OFF) °C
40034 0021 33 RTD 4 Trip Level 0 to 201 (201 = OFF) °C
