269PLUS COMMISSIONING SUMMARY 9 COMMISSIONING
9
RTD 9 TRIP LEVEL °C/°F
RTD 10 ALARM LEVEL °C/°F
RTD 10 TRIP LEVEL °C/°F
PAGE 3: O/L CURVE SETPOINTS
CUSTOM CURVE?
SELECTED CURVE NUMBER
TRIP TIME AT 1.05 × FLC sec.
TRIP TIME AT 1.10 × FLC sec.
TRIP TIME AT 1.20 × FLC sec.
TRIP TIME AT 1.30 × FLC sec.
TRIP TIME AT 1.40 × FLC sec.
TRIP TIME AT 1.50 × FLC sec.
TRIP TIME AT 1.75 × FLC sec.
TRIP TIME AT 2.00 × FLC sec.
TRIP TIME AT 2.25 × FLC sec.
TRIP TIME AT 2.50 × FLC sec.
TRIP TIME AT 2.75 × FLC sec.
TRIP TIME AT 3.00 × FLC sec.
TRIP TIME AT 3.50 × FLC sec.
TRIP TIME AT 4.00 × FLC sec.
TRIP TIME AT 4.50 × FLC sec.
TRIP TIME AT 5.00 × FLC sec.
TRIP TIME AT 5.50 × FLC sec.
TRIP TIME AT 6.00 × FLC sec.
TRIP TIME AT 6.50 × FLC sec.
TRIP TIME AT 7.00 × FLC sec.
TRIP TIME AT 7.50 × FLC sec.
TRIP TIME AT 8.00 × FLC sec.

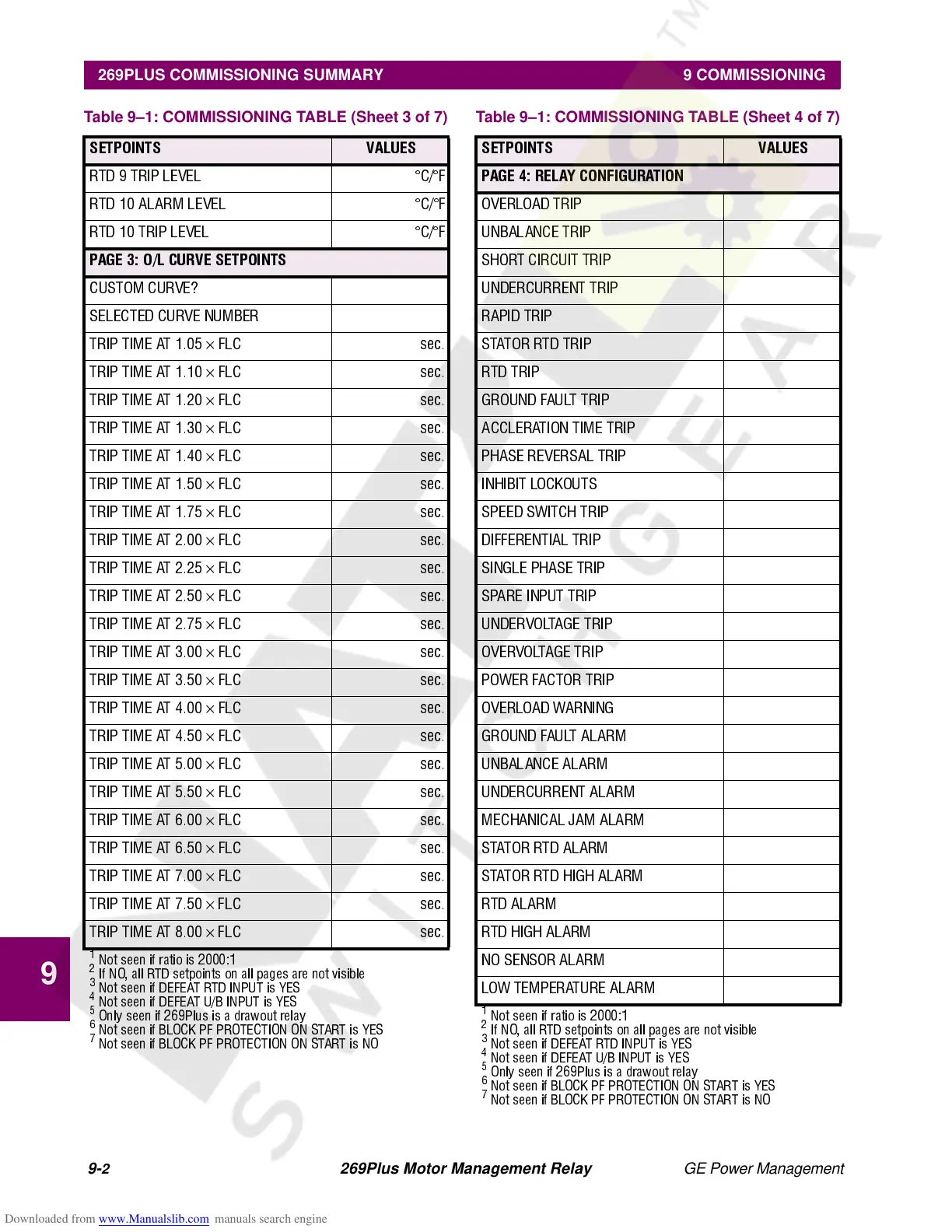

Table 9–1: COMMISSIONING TABLE (Sheet 3 of 7)
SETPOINTS VALUES
1
Not seen if ratio is 2000:1
2
If NO, all RTD setpoints on all pages are not visible
3
Not seen if DEFEAT RTD IN PUT is YES
4
Not seen if DEFEAT U/B INPUT is YES
5
Only seen if 269Plus is a drawout relay
6
Not seen if BLOCK PF PROTECTION ON START is YES
7
Not seen if BLOCK PF PROTECTION ON START is NO
PAGE 4: RELAY CONFIGURATION
OVERLOAD TRIP
UNBALANCE TRIP
SHORT CIRCUIT TRIP
UNDERCURRENT TRIP
RAPID TRIP
STATOR RTD TRIP
RTD TRIP
GROUND FAULT TRIP
ACCLERATION TIME TRIP
PHASE REVERSAL TRIP
INHIBIT LOCKOUTS
SPEED SWITCH TRIP
DIFFERENTIAL TRIP
SINGLE PHASE TRIP
SPARE INPUT TRIP
UNDERVOLTAGE TRIP
OVERVOLTAGE TRIP
POWER FACTOR TRIP
OVERLOAD WARNING
GROUND FAULT ALARM
UNBALANCE ALARM
UNDERCURRENT ALARM
MECHANICAL JAM ALARM
STATOR RTD ALARM
STATOR RTD HIGH ALARM
RTD ALARM
RTD HIGH ALARM
NO SENSOR ALARM
LOW TEMPERATURE ALARM
Table 9–1: COMMISSIONING TABLE (Sheet 4 of 7)
SETPOINTS VALUES
1
Not seen if ratio is 2000:1
2
If NO, all RTD setpoints on all pages are not visible
3
Not seen if DEFEAT R TD INPUT is YES
4
Not seen if DEFEAT U/B INPUT is YES
5
Only seen if 269Plus is a drawout relay
6
Not seen if BLOCK PF PROTECTION ON START is YES
7
Not seen if BLOCK PF PROTECTION ON START is NO
