3- 2 269Plus Motor Management Relay GE Power Management
CONTROLS AND INDICATORS 3 SETUP AND USE
3

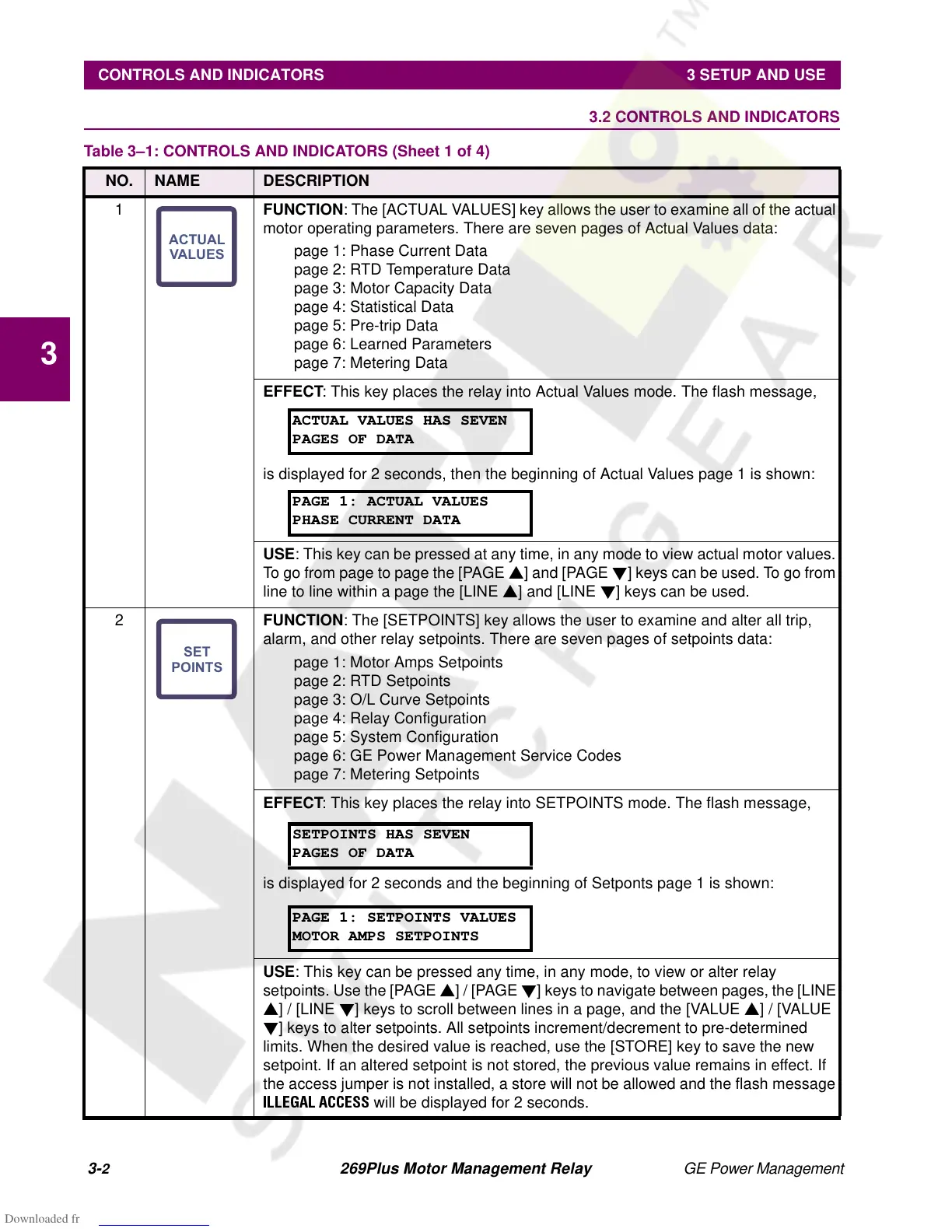

3.2 CONTROLS AND INDICATORS
Table 3–1: CONTROLS AND INDICATORS (Sheet 1 of 4)
NO. NAME DESCRIPTION
1 FUNCTION: The [ACTUAL VALUES] key allows the user to examine all of the actual
motor operating parameters. There are seven pages of Actual Values data:
page 1: Phase Current Data
page 2: RTD Temperature Data
page 3: Motor Capacity Data
page 4: Statistical Data
page 5: Pre-trip Data
page 6: Learned Parameters
page 7: Metering Data
EFFECT: This key places the relay into Actual Values mode. The flash message,
is displayed for 2 seconds, then the beginning of Actual Values page 1 is shown:
USE: This key can be pressed at any time, in any mode to view actual motor values.
To go from page to page the [PAGE s]and[PAGEt] keys can be used. To go from
line to line within a page the [LINE s] and [LINE t] keys can be used.
2 FUNCTION: The [SETPOINTS] key allows the user to examine and alter all trip,
alarm, and other relay setpoints. There are seven pages of setpoints data:
page 1: Motor Amps Setpoints
page 2: RTD Setpoints
page 3: O/L Curve Setpoints
page 4: Relay Configuration
page 5: System Configuration
page 6: GE Power Management Service Codes
page 7: Metering Setpoints
EFFECT: This key places the relay into SETPOINTS mode. The flash message,
is displayed for 2 seconds and the beginning of Setponts page 1 is shown:
USE: This key can be pressed any time, in any mode, to view or alter relay
setpoints. Use the [PAGE s]/[PAGEt] keys to navigate between pages, the [LINE
s] / [LINE t] keys to scroll between lines in a page, and the [VALUE s]/[VALUE
t] keys to alter setpoints. All setpoints increment/decrement to pre-determined
limits. When the desired value is reached, use the [STORE] key to save the new
setpoint. If an altered setpoint is not stored, the previous value remains in effect. If
the access jumper is not installed, a store will not be allowed and the flash message
ILLEGAL ACCESS will be displayed for 2 seconds.
ACTUAL
VALUES
ACTUAL VALUES HAS SEVEN
PAGES OF DATA
PAGE 1: ACTUAL VALUES
PHASE CURRENT DATA
SET
POINTS
SETPOINTS HAS SEVEN
PAGES OF DATA
PAGE 1: SETPOINTS VALUES
MOTOR AMPS SETPOINTS
