3- 12 269Plus Motor Management Relay GE Power Management
ACTUAL VALUES MODE 3 SETUP AND USE
3
5 2 This message is only displayed (and defaulted to)
when a trip or alarm occurs and describes the trip/
alarm condition. Refer to Table 3–4: TRIP/ALARM
MESSAGES AND FAULT DIAGNOSIS on page 3–
44. See also Section 3.4a: STARTS/HOUR TIMER
on page 3–15.
5 3 Describes the cause of the last detected event (see
Section 3.4a: STARTS/HOUR TIMER). Updated
when an event occurs (trip or inhibit).
5 4 Describes the cause of the last trip. It is updated
when a trip occurs. See Section 3.4a: STARTS/
HOUR TIMER on page 3–15.
5 5 Average motor phase current prior to last relay trip.
5 6 I1 motor phase current prior to last relay trip.
5 7 I2 motor phase current prior to last relay trip.
5 8 I3 motor phase current prior to last relay trip.
5 9 Ratio of negative to positive sequence currents prior
to last relay trip.
5 10 Ground fault current prior to last relay trip.
(= will be > if delay is set to 0.0, 0.25, or 0.5)
5 11 Maximum stator RTD temperature prior to last relay
trip. Message displayed only if the answer to ARE
THERE ANY RTDs CONNECTED? is YES (setpoint located
on Setpoints page 2, line 3).
5 12 † Average voltage prior to last relay trip
5 13 † KW prior to last relay trip (see Figure 3–8: POWER
MEASUREMENT CONVENTIONS on page 3–67).
5 14 † Kvars prior to last relay trip (see Figure 3–8: POWER
MEASUREMENT CONVENTIONS on page 3–67).

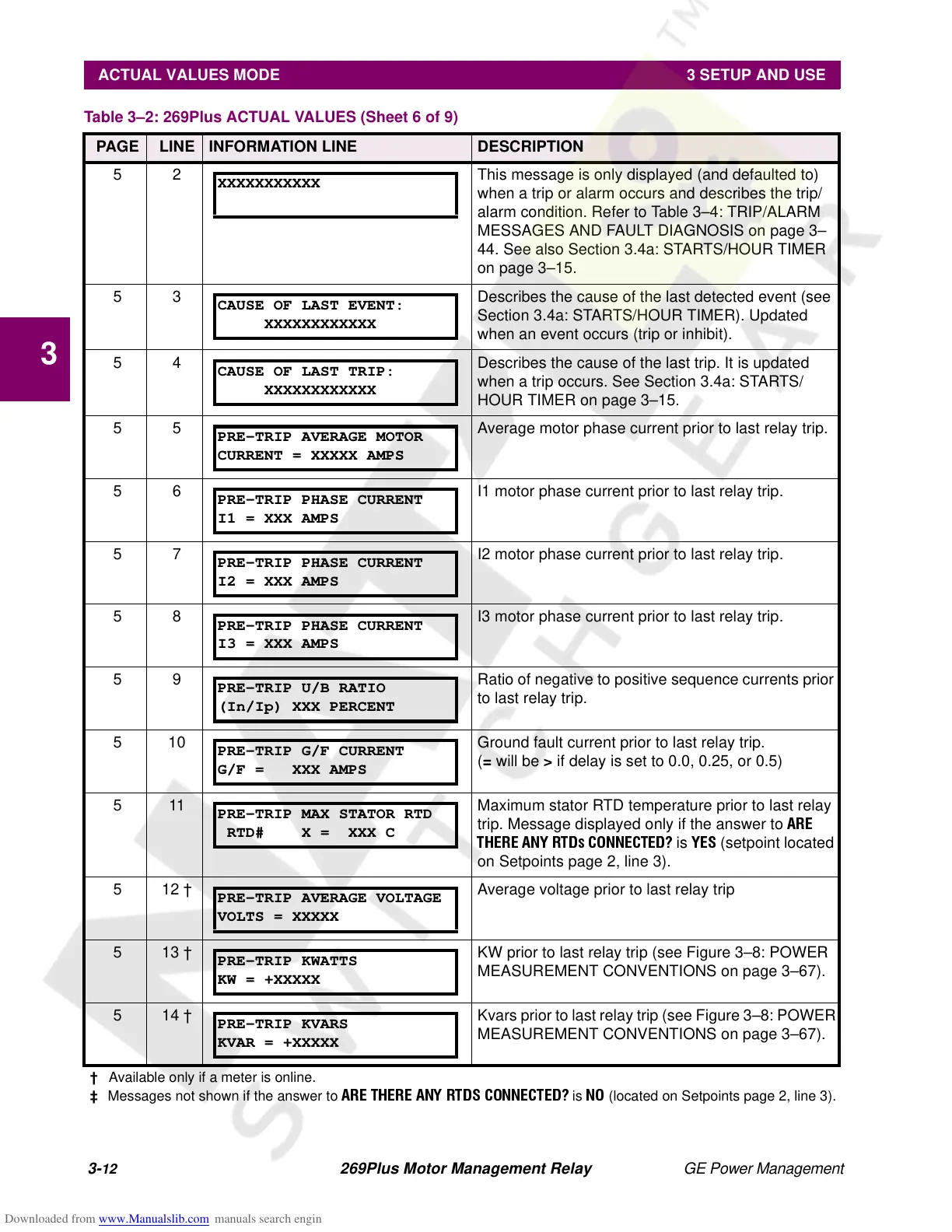

Table 3–2: 269Plus ACTUAL VALUES (Sheet 6 of 9)
PAGE LINE INFORMATION LINE DESCRIPTION
† Available only if a meter is online.
‡ Messages not shown if the answer to
ARE THERE ANY RTDS CONNECTED?
is
NO
(located on Setpoints page 2, line 3).
XXXXXXXXXXX
CAUSE OF LAST EVENT:
XXXXXXXXXXXX
CAUSE OF LAST TRIP:
XXXXXXXXXXXX
PRE-TRIP AVERAGE MOTOR
CURRENT = XXXXX AMPS
PRE-TRIP PHASE CURRENT
I1 = XXX AMPS
PRE-TRIP PHASE CURRENT
I2 = XXX AMPS
PRE-TRIP PHASE CURRENT
I3 = XXX AMPS
PRE-TRIP U/B RATIO
(In/Ip) XXX PERCENT
PRE-TRIP G/F CURRENT
G/F = XXX AMPS
PRE-TRIP MAX STATOR RTD
RTD# X = XXX C
PRE-TRIP AVERAGE VOLTAGE
VOLTS = XXXXX
PRE-TRIP KWATTS
KW = +XXXXX
PRE-TRIP KVARS
KVAR = +XXXXX
