GE 269Plus

GE Power Management 269Plus Motor Management Relay 3- 11
3 SETUP AND USE ACTUAL VALUES MODE
3
4 8 Total number of relay rapid trips since last
commissioning.
4 9 Total number of relay unbalance trips since last
commissioning.
4 10 Total number of relay ground fault and differential
input trips since last commissioning.
4 11 Total number of relay RTD trips since last
commissioning.
4 12 Total number of relay short circuit trips since last
commissioning.
4 13 Total number of relay acceleration time and speed
switch trips since last commissioning.
4 14 Total number of undervoltage trips since last
commissioning.
4 15 Total number of overvoltage trips since last
commissioning.
4 16 Total number of power factor trips since last
commissioning.
4 17 Total number of voltage phase reversals since last
commissioning.
4 18 Used to clear the data in the previous lines by
storing YES (see Section 3.2: CONTROLS AND
INDICATORS on page 3–2).
4 19 Lastlineofpage4.
ACTUAL VALUES PAGE 5: PRE-TRIP DATA
5 1 Actual page 5 header.

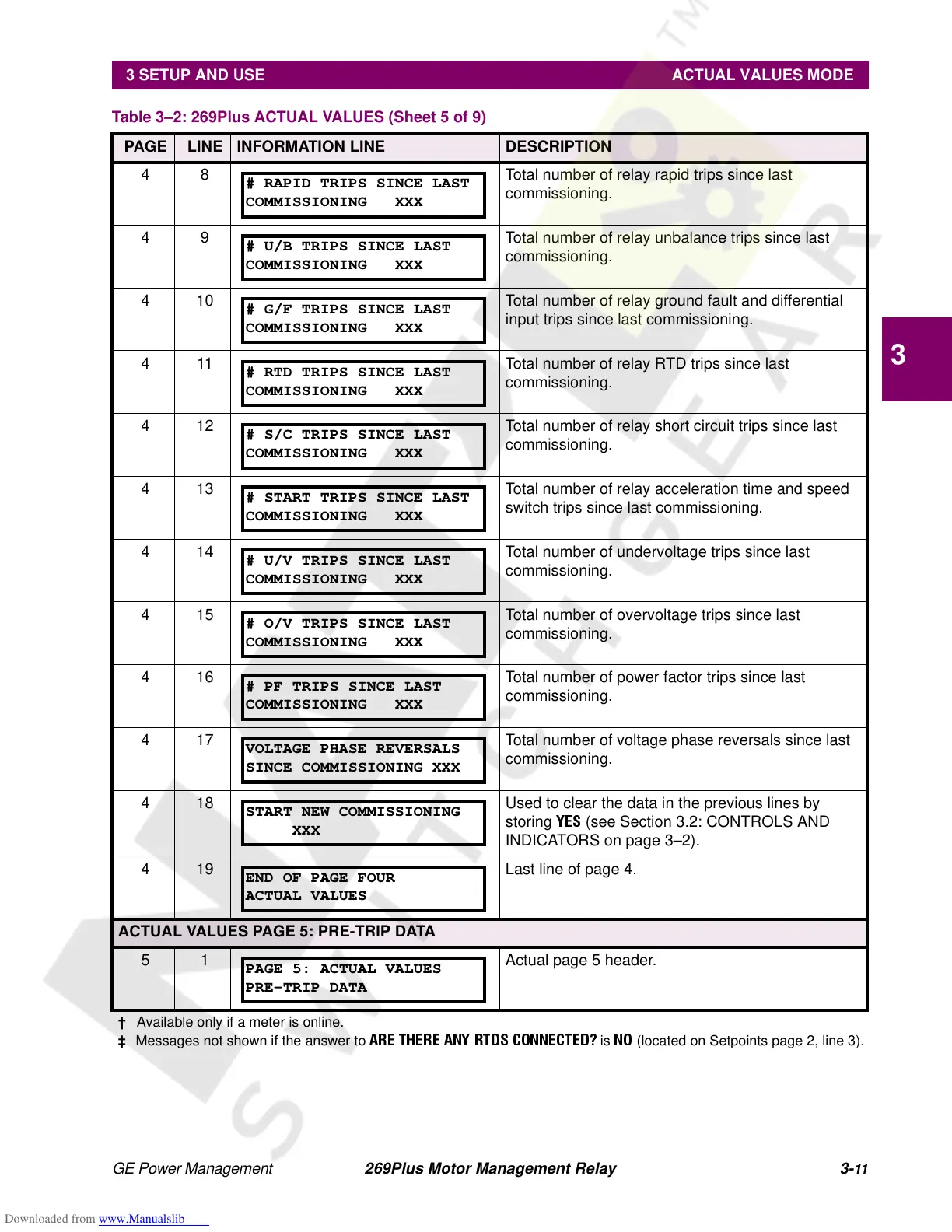

Table 3–2: 269Plus ACTUAL VALUES (Sheet 5 of 9)
PAGE LINE INFORMATION LINE DESCRIPTION
† Available only if a meter is online.
‡ Messages not shown if the answer to
ARE THERE ANY RTDS CONNECTED?
is
NO
(located on Setpoints page 2, line 3).
# RAPID TRIPS SINCE LAST
COMMISSIONING XXX
# U/B TRIPS SINCE LAST
COMMISSIONING XXX
# G/F TRIPS SINCE LAST
COMMISSIONING XXX
# RTD TRIPS SINCE LAST
COMMISSIONING XXX
# S/C TRIPS SINCE LAST
COMMISSIONING XXX
# START TRIPS SINCE LAST
COMMISSIONING XXX
# U/V TRIPS SINCE LAST
COMMISSIONING XXX
# O/V TRIPS SINCE LAST
COMMISSIONING XXX
# PF TRIPS SINCE LAST
COMMISSIONING XXX
VOLTAGE PHASE REVERSALS
SINCE COMMISSIONING XXX
START NEW COMMISSIONING
XXX
END OF PAGE FOUR
ACTUAL VALUES
PAGE 5: ACTUAL VALUES
PRE-TRIP DATA
