3- 10 269Plus Motor Management Relay GE Power Management
ACTUAL VALUES MODE 3 SETUP AND USE
3
2 20 Last line of page 2.
ACTUAL VALUES PAGE 3: MOTOR CAPACITY DATA
3 1 Actual Values page 3 header.
3 2 Estimated time to overload trip under present
conditions (seen only during overloads).
3 3 Actual motor current as a percentage of full load.
3 4 Percentage of motor thermal capacity used.
3 5 Last line of page 3.
ACTUAL VALUES PAGE 4: STATISTICAL DATA
4 1 Actual Values page 4 header.
4 2 Total motor running hours since last commissioning.
43† Total megawatt hours since last commissioning
(Displayed only if Meter option is enabled)
4 4 Total number of motor starts since last
commissioning.
4 5 Total number of relay trips since last commissioning.
4 6 Total number of relay overload trips since last
commissioning.
4 7 Total number of relay undercurrent trips since last
commissioning.

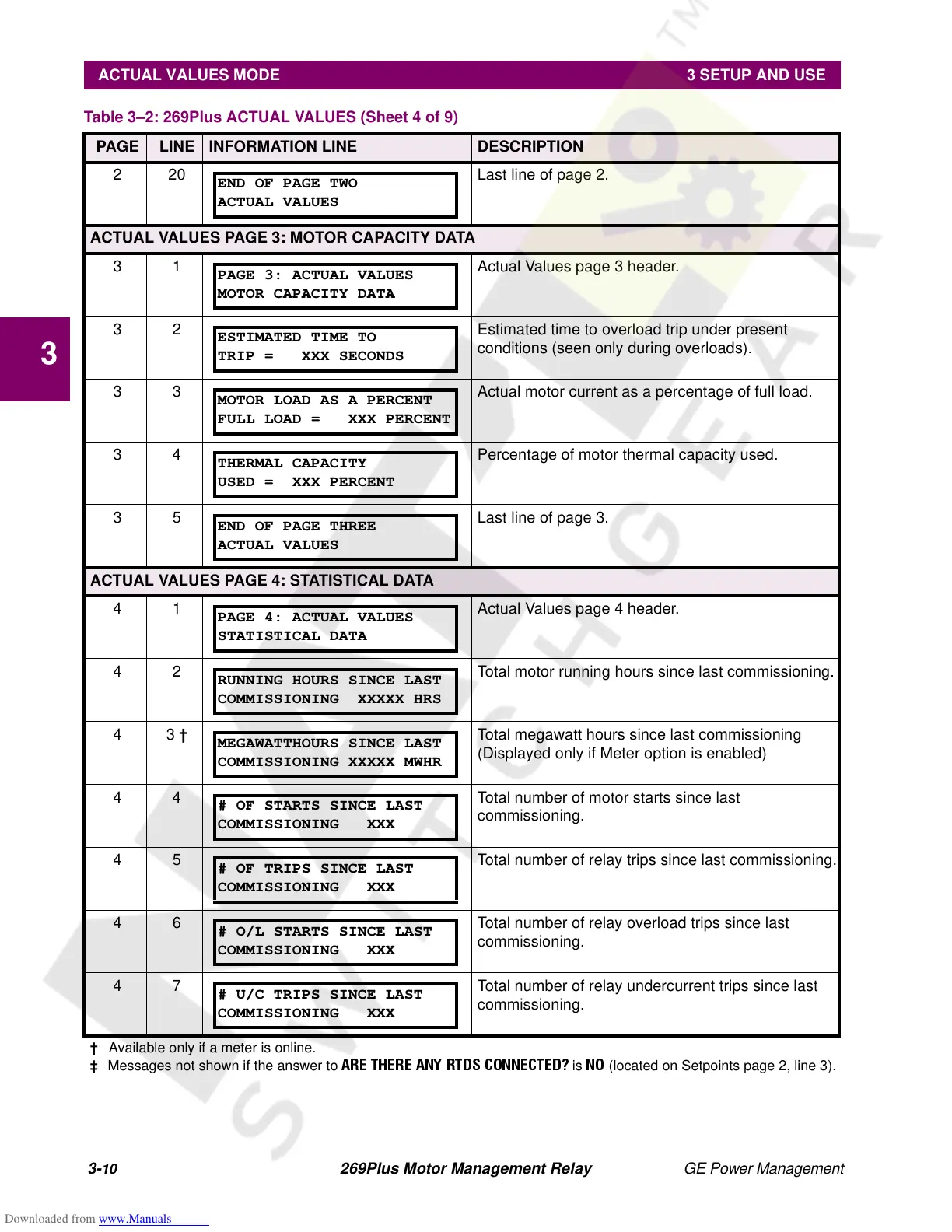

Table 3–2: 269Plus ACTUAL VALUES (Sheet 4 of 9)
PAGE LINE INFORMATION LINE DESCRIPTION
† Available only if a meter is online.
‡ Messages not shown if the answer to
ARE THERE ANY RTDS CONNECTED?
is
NO
(located on Setpoints page 2, line 3).
END OF PAGE TWO
ACTUAL VALUES
PAGE 3: ACTUAL VALUES
MOTOR CAPACITY DATA
ESTIMATED TIME TO
TRIP = XXX SECONDS
MOTOR LOAD AS A PERCENT
FULL LOAD = XXX PERCENT
THERMAL CAPACITY
USED = XXX PERCENT
END OF PAGE THREE
ACTUAL VALUES
PAGE 4: ACTUAL VALUES
STATISTICAL DATA
RUNNING HOURS SINCE LAST
COMMISSIONING XXXXX HRS
MEGAWATTHOURS SINCE LAST
COMMISSIONING XXXXX MWHR
# OF STARTS SINCE LAST
COMMISSIONING XXX
# OF TRIPS SINCE LAST
COMMISSIONING XXX
# O/L STARTS SINCE LAST
COMMISSIONING XXX
# U/C TRIPS SINCE LAST
COMMISSIONING XXX
