GE Power Management 269Plus Motor Management Relay 3- 9
3 SETUP AND USE ACTUAL VALUES MODE
3
29‡
or
RTD #6 temperature.
2 10 ‡ RTD #7 temperature.
2 11 ‡ RTD #8 temperature.
2 12 ‡ RTD #9 temperature.
213‡
or
RTD #10 temperature.
Seen when RTD #10 is used for ambient sensing.
2 14 ‡ Maximum stator RTD temperature since last access.
2 15 ‡ Maximum RTD #7 temperature since last access.
2 16 ‡ Maximum RTD #8 temperature since last access.
2 17 ‡ Maximum RTD #9 temperature since last access.
2 18 ‡ Maximum RTD #10 temperature since last access.
2 19 ‡ Used to clear the data in the last 5 lines (see Section
3.2 CONTROLS AND INDICATORS).

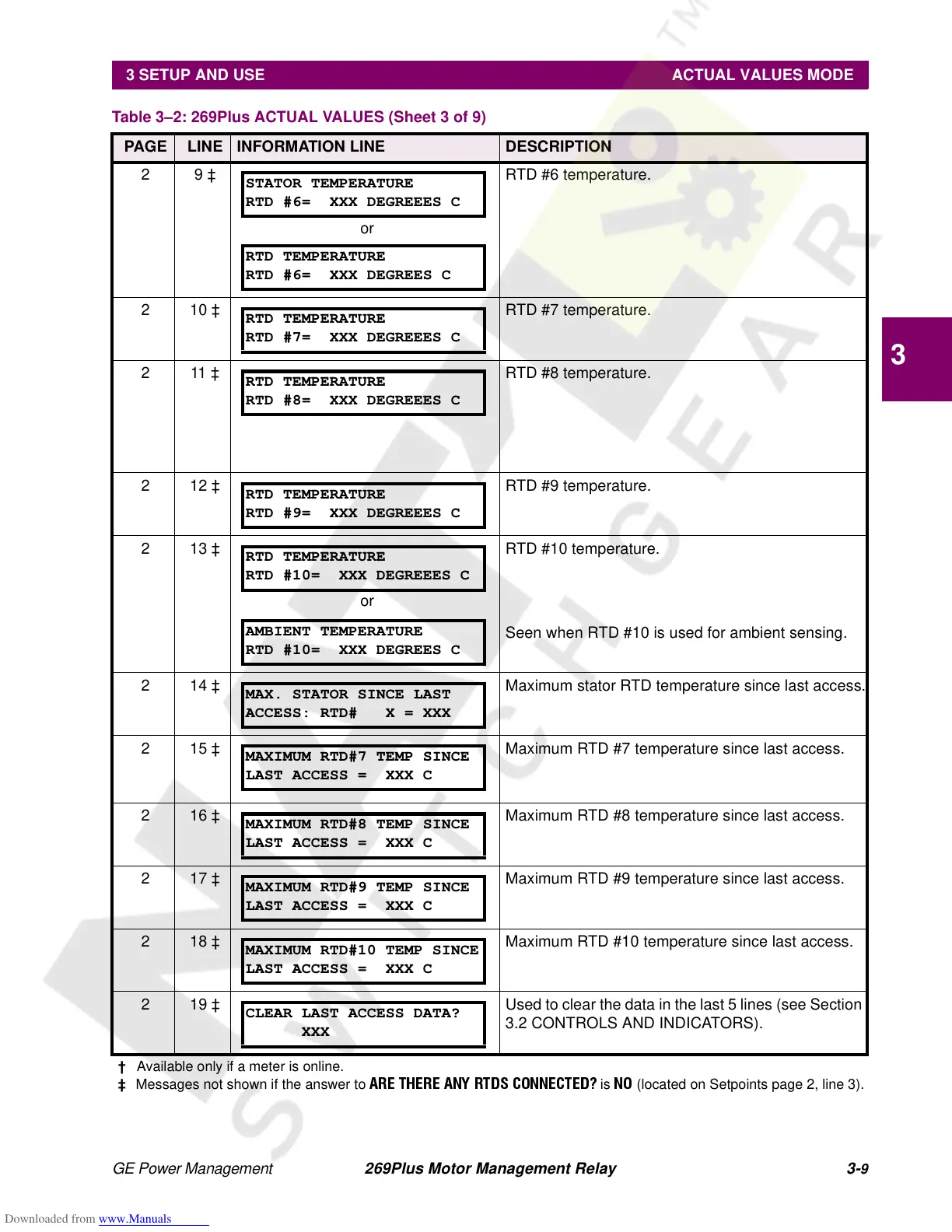

Table 3–2: 269Plus ACTUAL VALUES (Sheet 3 of 9)
PAGE LINE INFORMATION LINE DESCRIPTION
† Available only if a meter is online.
‡ Messages not shown if the answer to
ARE THERE ANY RTDS CONNECTED?
is
NO
(located on Setpoints page 2, line 3).
STATOR TEMPERATURE
RTD #6= XXX DEGREEES C
RTD TEMPERATURE
RTD #6= XXX DEGREES C
RTD TEMPERATURE
RTD #7= XXX DEGREEES C
RTD TEMPERATURE
RTD #8= XXX DEGREEES C
RTD TEMPERATURE
RTD #9= XXX DEGREEES C
RTD TEMPERATURE
RTD #10= XXX DEGREEES C
AMBIENT TEMPERATURE
RTD #10= XXX DEGREES C
MAX. STATOR SINCE LAST
ACCESS: RTD# X = XXX
MAXIMUM RTD#7 TEMP SINCE
LAST ACCESS = XXX C
MAXIMUM RTD#8 TEMP SINCE
LAST ACCESS = XXX C
MAXIMUM RTD#9 TEMP SINCE
LAST ACCESS = XXX C
MAXIMUM RTD#10 TEMP SINCE
LAST ACCESS = XXX C
CLEAR LAST ACCESS DATA?
XXX
