3- 8 269Plus Motor Management Relay GE Power Management
ACTUAL VALUES MODE 3 SETUP AND USE
3
ACTUAL VALUES PAGE 2: RTD TEMPERATURE DATA
2 1 Actual Values page 2 header. In all page 2
messages, temperatures are displayed in °C
(indicated by C )or°F(indicatedby F ) depending on
the Setpoints page 2, line 2 value.
2 2 This line is shown only if the answer to the question
ARE THERE ANY RTDS CONNECTED? is NO . This setpoint
is located on Setpoints page 2, line 3.
2 3 ‡ Maximum stator RTD temperature.
24‡
or
RTD #1 temperature.
25‡
or
RTD #2 temperature.
26‡
or
RTD #3 temperature.
27‡
or
RTD #4 temperature.
28‡
or
RTD #5 temperature.

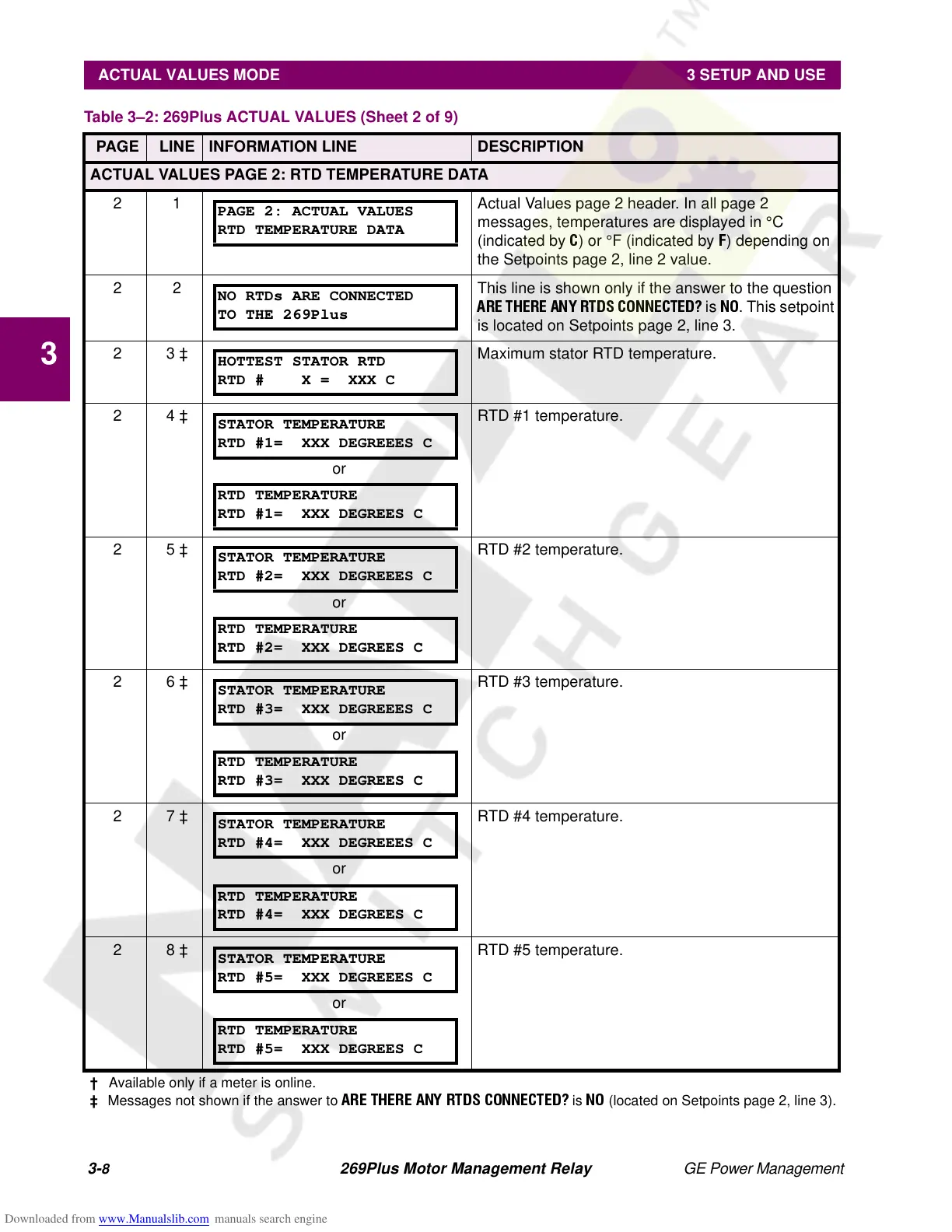

Table 3–2: 269Plus ACTUAL VALUES (Sheet 2 of 9)
PAGE LINE INFORMATION LINE DESCRIPTION
† Available only if a meter is online.
‡ Messages not shown if the answer to
ARE THERE ANY RTDS CONNECTED?
is
NO
(located on Setpoints page 2, line 3).
PAGE 2: ACTUAL VALUES
RTD TEMPERATURE DATA
NO RTDs ARE CONNECTED
TO THE 269Plus
HOTTEST STATOR RTD
RTD # X = XXX C
STATOR TEMPERATURE
RTD #1= XXX DEGREEES C
RTD TEMPERATURE
RTD #1= XXX DEGREES C
STATOR TEMPERATURE
RTD #2= XXX DEGREEES C
RTD TEMPERATURE
RTD #2= XXX DEGREES C
STATOR TEMPERATURE
RTD #3= XXX DEGREEES C
RTD TEMPERATURE
RTD #3= XXX DEGREES C
STATOR TEMPERATURE
RTD #4= XXX DEGREEES C
RTD TEMPERATURE
RTD #4= XXX DEGREES C
STATOR TEMPERATURE
RTD #5= XXX DEGREEES C
RTD TEMPERATURE
RTD #5= XXX DEGREES C
