GE Power Management 269Plus Motor Management Relay 3- 13
3 SETUP AND USE ACTUAL VALUES MODE
3
5 15 † Power factor prior to last relay trip. The lead or lag
messages are also captured and displayed prior to
last relay trip.
5 16 † Frequency prior to last relay trip
5 17 Clears all pre-trip data, cause of last event, and
cause of last trip. Data can be cleared before or after
the reset of a trip or alarm.
Pre-trip data is cleared by changing NO to YES and
storing. Once cleared, the flash message PRE-TRIP
DATA CLEARED is displayed for a few seconds, then
the cause of last event and cause of last trip
messages are blanked, all pre-trip data set to zero,
the PF sign reset to Lag, and the pre-trip kW and
kvar signs reset to "+". See Section 3.26:
STATISTICAL DATA FEATURES for details.
5 18 Lastlineofpage5.
ACTUAL VALUES PAGE 6: LEARNED PARAMETERS
6 1 ACTUAL VALUES page 6 header.
6 2 Learned average motor starting current of 4 starts.
6 3 Learned motor starting current from last start.
6 4 Learned value of negative-sequence K factor.
6 5 Learned motor cooling time with motor running (see
Section 3.21: THERMAL CAPACITY ALARM).
6 6 Learned motor cooling time with motor stopped (see
Section 3.21: THERMAL CAPACITY ALARM).
6 7 Learned motor acceleration time.

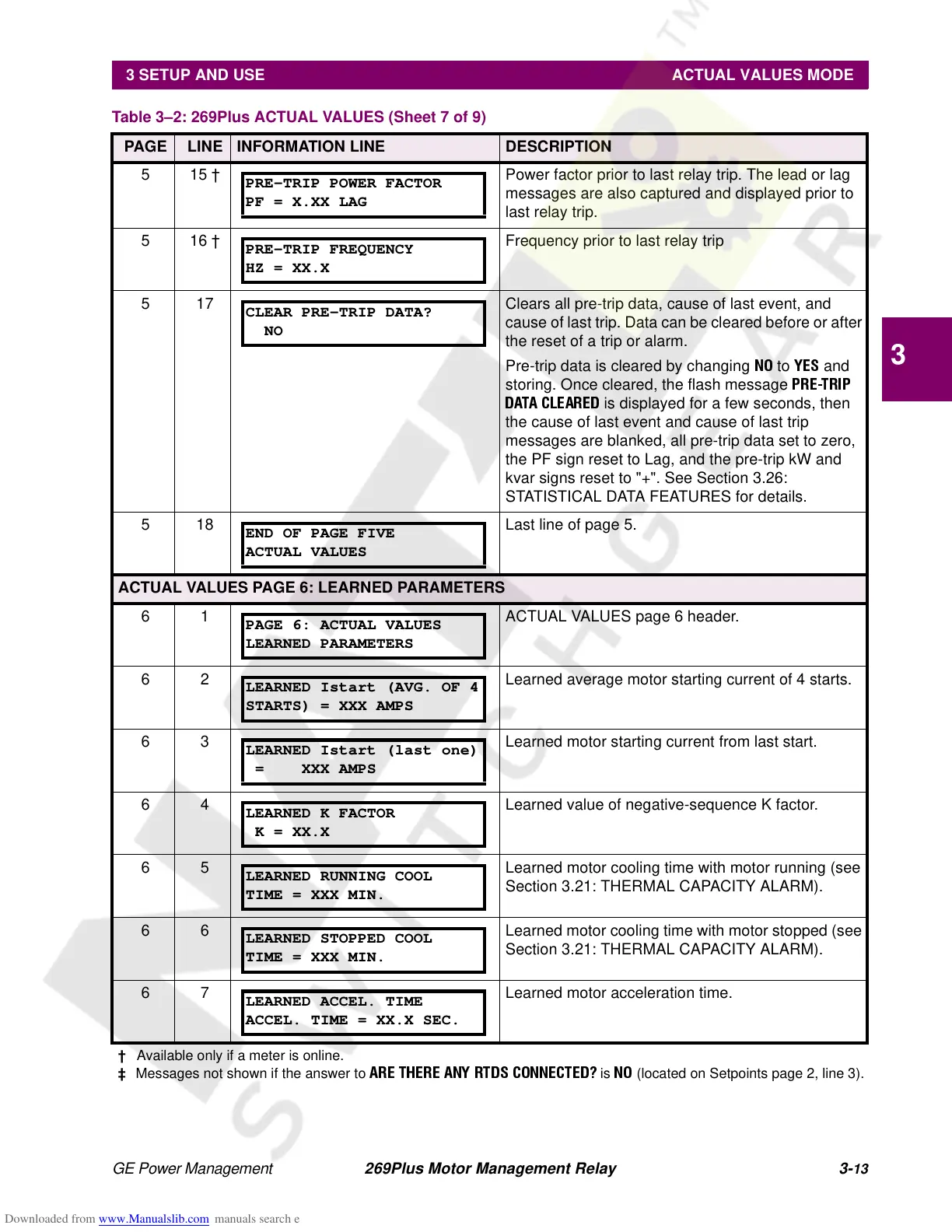

Table 3–2: 269Plus ACTUAL VALUES (Sheet 7 of 9)
PAGE LINE INFORMATION LINE DESCRIPTION
† Available only if a meter is online.
‡ Messages not shown if the answer to
ARE THERE ANY RTDS CONNECTED?
is
NO
(located on Setpoints page 2, line 3).
PRE-TRIP POWER FACTOR
PF = X.XX LAG
PRE-TRIP FREQUENCY
HZ = XX.X
CLEAR PRE-TRIP DATA?
NO
END OF PAGE FIVE
ACTUAL VALUES
PAGE 6: ACTUAL VALUES
LEARNED PARAMETERS
LEARNED Istart (AVG. OF 4
STARTS) = XXX AMPS
LEARNED Istart (last one)
= XXX AMPS
LEARNED K FACTOR
K = XX.X
LEARNED RUNNING COOL
TIME = XXX MIN.
LEARNED STOPPED COOL
TIME = XXX MIN.
LEARNED ACCEL. TIME
ACCEL. TIME = XX.X SEC.
