GE 269Plus

GE Power Management 269Plus Motor Management Relay 4- 11
4 COMMUNICATIONS MEMORY MAP
4
40035 0022 34 RTD 5 Alarm Level 0 to 201 (201 = OFF) °C
40036 0023 35 RTD 5 Trip Level 0 to 201 (201 = OFF) °C
40037 0024 36 RTD 6 Alarm Level 0 to 201 (201 = OFF) °C
40038 0025 37 RTD 6 Trip Level 0 to 201 (201 = OFF) °C
40039 0026 38 RTD 7 Alarm Level 0 to 201 (201 = OFF) °C
40040 0027 39 RTD 7 Trip Level 0 to 201 (201 = OFF) °C
40041 0028 40 RTD 8 Alarm Level 0 to 201 (201 = OFF) °C
40042 0029 41 RTD 8 Trip Level 0 to 201 (201 = OFF) °C
40043 002A 42 RTD 9 Alarm Level 0 to 201 (201 = OFF) °C
40044 002B 43 RTD 9 Trip Level 0 to 201 (201 = OFF) °C
40045 002C 44 RTD 10 Alarm Level 0 to 201 (201 = OFF) °C
40046 002D 45 RTD 10 Trip Level 0 to 201 (201 = OFF) °C
40047 002E 46 Undercurrent Trip Level 1 to 1001 (1001 = OFF) A
40048 002F 47 Undercurrent Trip Delay 1 to 255 sec.
40049 0030 48 Selected Overload curve 1 to 8
40050 0031 49 Trip time at 1.05 XFLC 1 to 12000 sec.
40051 0032 50 Trip time at 1.10 XFLC 1 to 12000 sec.
40052 0033 51 Trip time at 1.20 XFLC 1 to 12000 sec.
40053 0034 52 Trip time at 1.30 XFLC 1 to 12000 sec.
40054 0035 53 Trip time at 1.40 XFLC 1 to 12000 sec.
40055 0036 54 Trip time at 1.50 XFLC 1 to 12000 sec.
40056 0037 55 Trip time at 1.75 XFLC 1 to 2000 sec.
40057 0038 56 Trip time at 2.00 XFLC 1 to 2000 sec.
40058 0039 57 Trip time at 2.25 XFLC 1 to 2000 sec.
40059 003A 58 Trip time at 2.50 XFLC 1 to 2000 sec.
40060 003B 59 Trip time at 2.75 XFLC 1 to 2000 sec.
40061 003C 60 Trip time at 3.00 XFLC 1 to 2000 sec.
40062 003D 61 Trip time at 3.50 XFLC 1 to 2000 sec.
40063 003E 62 Trip time at 4.00 XFLC 1 to 2000 sec.
40064 003F 63 Trip time at 4.50 XFLC 1 to 2000 sec.
40065 0040 64 Trip time at 5.00 XFLC 1 to 2000 sec.
40066 0041 65 Trip time at 5.50 XFLC 1 to 2000 sec.
40067 0042 66 Trip time at 6.00 XFLC 1 to 2000 sec.
40068 0043 67 Trip time at 6.50 XFLC 1 to 2000 sec.
40069 0044 68 Trip time at 7.00 XFLC 1 to 2000 sec.
40070 0045 69 Trip time at 7.50 XFLC 1 to 2000 sec.
40071 0046 70 Trip time at 8.00 XFLC 1 to 2000 sec.
40072 0047 71 Undefined

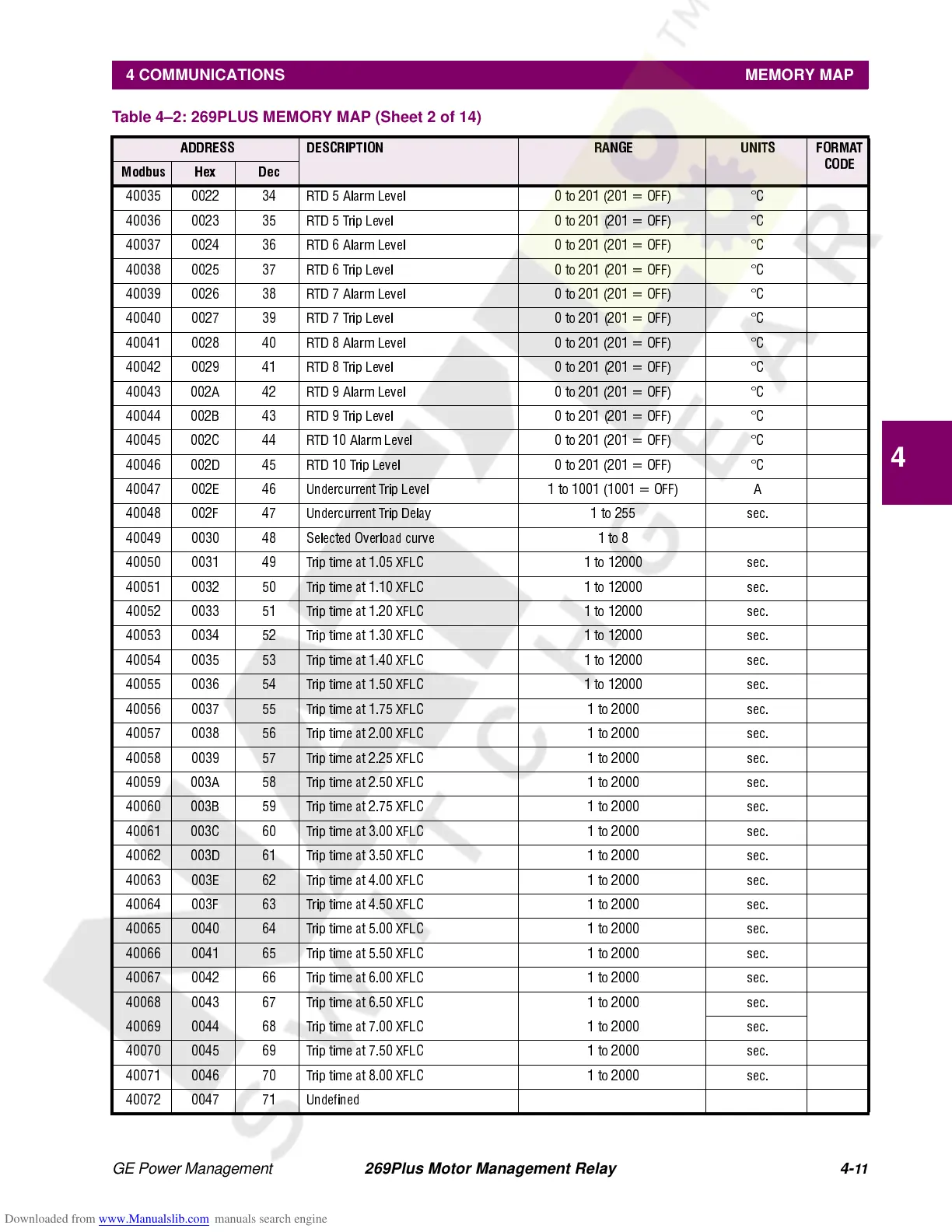

Table 4–2: 269PLUS MEMORY MAP (Sheet 2 of 14)
ADDRESS DESCRIPTION RANGE UNITS FORMAT
CODE
Modbus Hex Dec
