4- 12 269Plus Motor Management Relay GE Power Management
MEMORY MAP 4 COMMUNICATIONS
4
40073 0048 72 Undefined
40074 0049 73 Overload Trip assignment 16 to 18 F3
40075 004A 74 Unbalance Trip assignment 16 to 18 F3
40076 004B 75 Short Circuit Trip assignment 16 to 18 F3
40077 004C 76 Rapid Trip assignment 16 to 18 F3
40078 004D 77 Stator RTD Trip assignment 16 to 18 F3
40079 004E 78 RTD Trip assignment 16 to 18 F3
40080 004F 79 Ground Fault Trip assignment 16 to 18 F3
40081 0050 80 Acceleration Trip assignment 16 to 18 F3
40082 0051 81 Phase Reversal Trip assignment 16 to 18 F3
40083 0052 82 Inhibits Trip assignment 16 to 18 F3
40084 0053 83 Speed Switch Trip assignment 16 to 18 F3
40085 0054 84 Differential Input Trip assignment 16 to 18 F3
40086 0055 85 Single Phase Trip assignment 16 to 18 F3
40087 0056 86 Spare Input Trip assignment 16 to 18 F3
40088 0057 87 Power Factor Trip assignment 16 to 18 F3
40089 0058 88 Undervoltage Trip assignment 16 to 18 F3
40090 0059 89 Overload Warning assignment 13 to 16 F3
40091 005A 90 Ground Fault Alarm assignment 13 to 16 F3
40092 005B 91 Unbalance Alarm assignment 13 to 16 F3
40093 005C 92 Undercurrent Alarm assignment 13 to 16 F3
40094 005D 93 Stator RTD Alarm assignment 13 to 16 F3
40095 005E 94 RTD Alarm assignment 13 to 16 F3
40096 005F 95 No Sensor Alarm assignment 13 to 16 F3
40097 0060 96 Self-Test assignment 13 to 16 F3
40098 0061 97 Spare Input Alarm assignment 13 to 16 F3
40099 0062 98 No Slave Message assignment 13 to 16 F3
40100 0063 99 Power Factor Alarm assignment 13 to 16 F3
40101 0064 100 Undervoltage Alarm assignment 13 to 16 F3
40102 0065 101 KVAR Limit Alarm assignment 13 to 16 F3
40103 0066 102 Meter Comm. Alarm assignment 13 to 16 F3
40104 0067 103 Thermal capacity alarm assignment 13 to 16 F3
40105 0068 104 Low temp alarm assignment 13 to 16 F3
40106 0069 105 Undefined
40107 006A 106 Undefined
40108 006B 107 Undefined
40109 006C 108 Undefined
40110 006D 109 Default Display Line Code 1 to 40

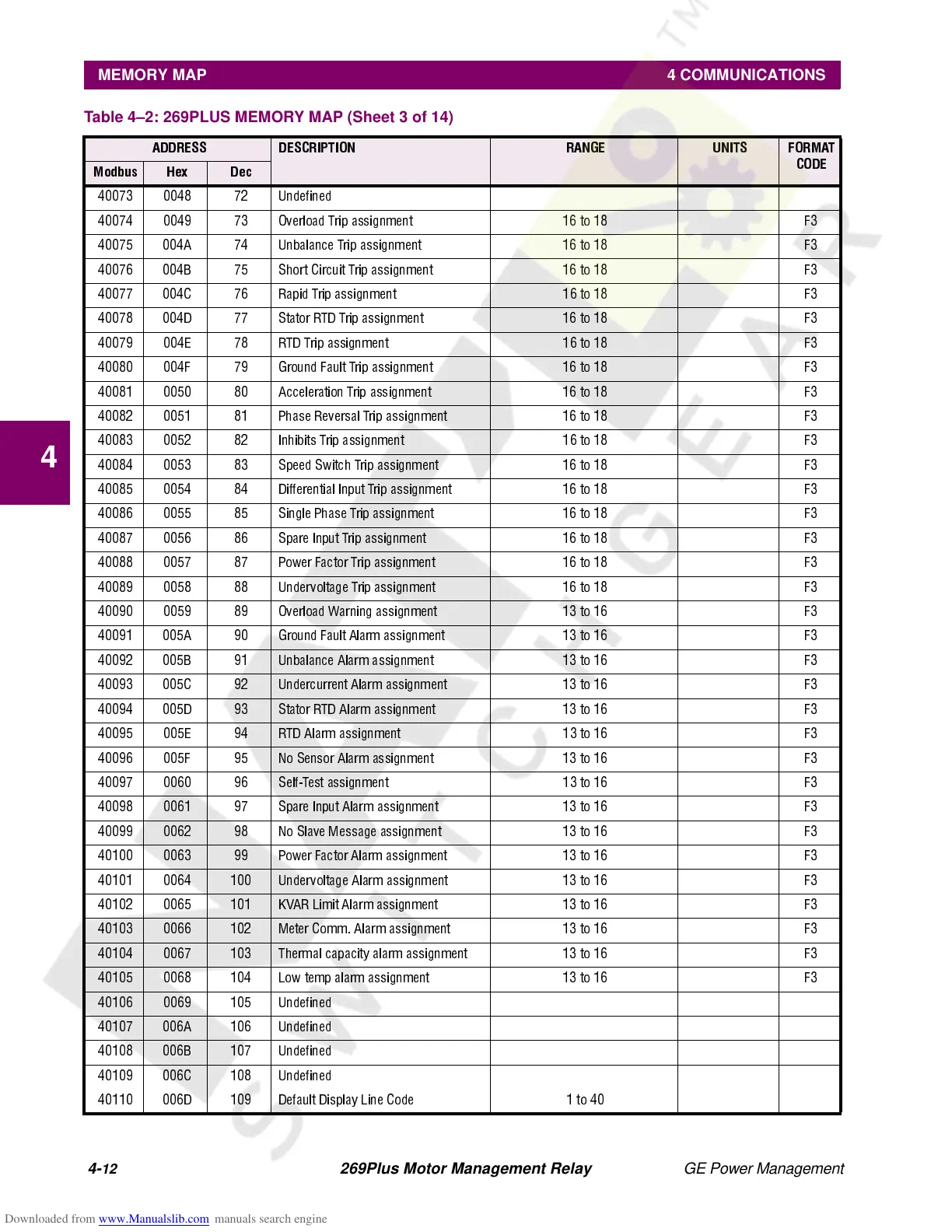

Table 4–2: 269PLUS MEMORY MAP (Sheet 3 of 14)
ADDRESS DESCRIPTION RANGE UNITS FORMAT
CODE
Modbus Hex Dec
