GE Power Management 269Plus Motor Management Relay 2-
11
2 INSTALLATION EXTERNAL CONNECTIONS
2

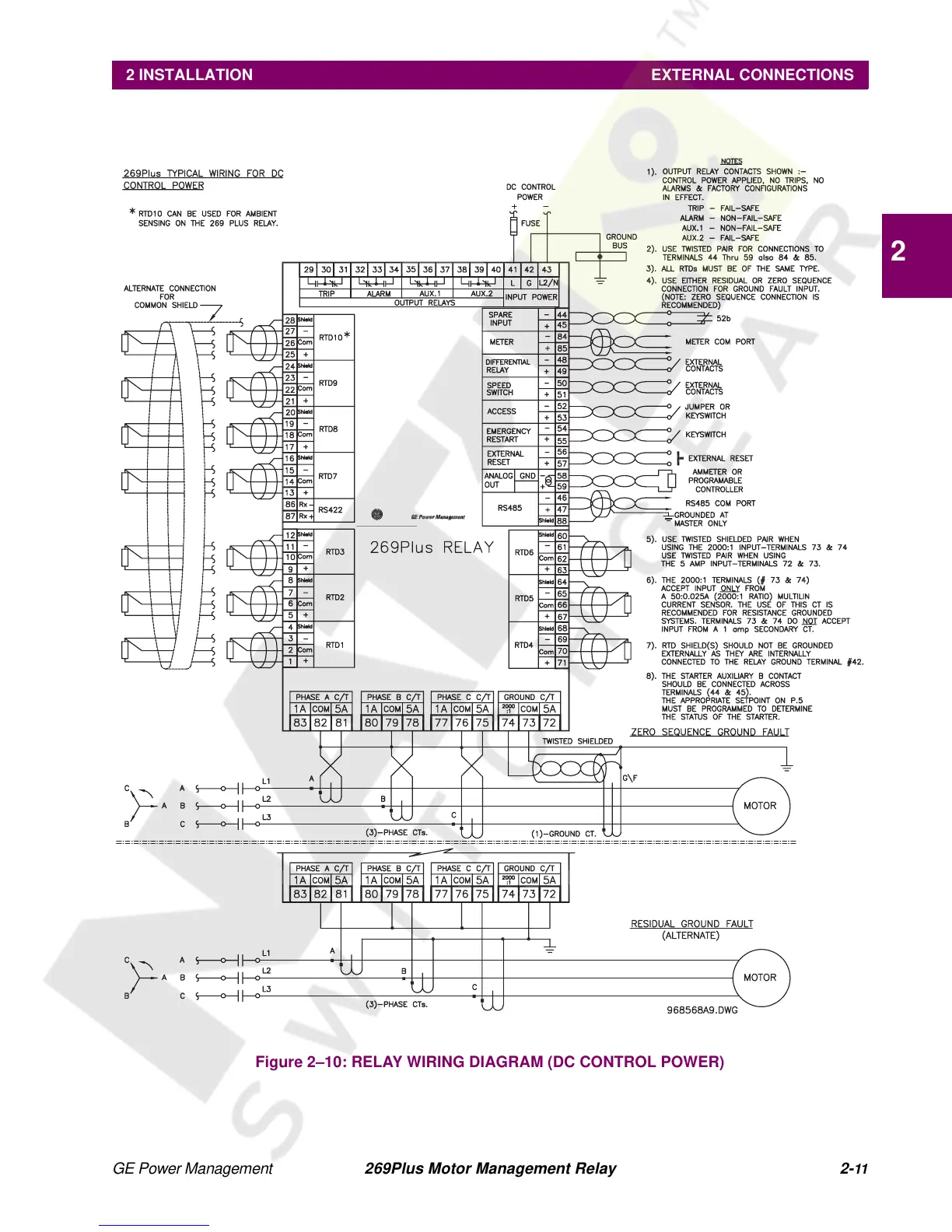

Figure 2–10: RELAY WIRING DIAGRAM (DC CONTROL POWER)
