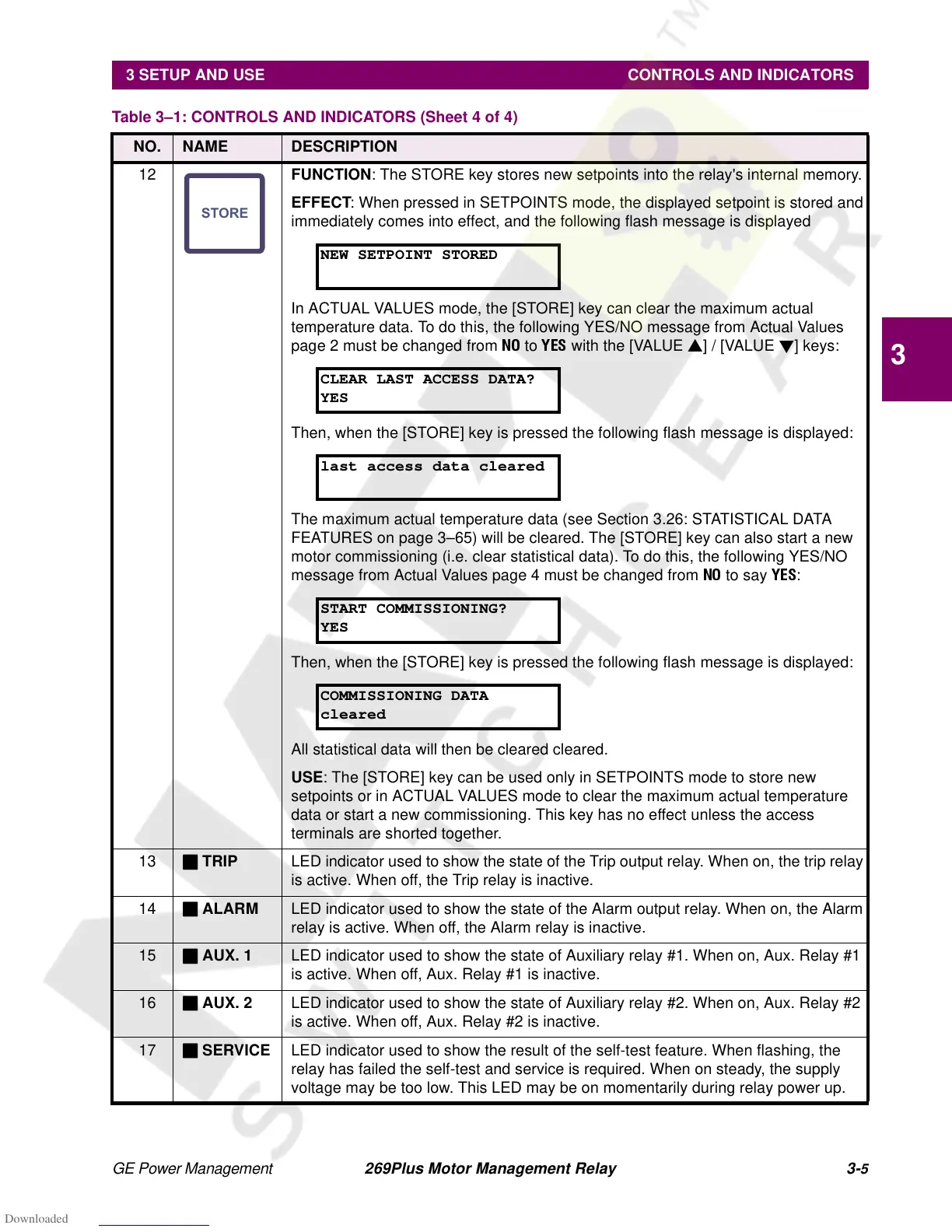

3 SETUP AND USE CONTROLS AND INDICATORS
3
12 FUNCTION: The STORE key stores new setpoints into the relay's internal memory.
EFFECT: When pressed in SETPOINTS mode, the displayed setpoint is stored and
immediately comes into effect, and the following flash message is displayed
In ACTUAL VALUES mode, the [STORE] key can clear the maximum actual
temperature data. To do this, the following YES/NO message from Actual Values
page 2 must be changed from NO to YES with the [VALUE s]/[VALUEt]keys:
Then, when the [STORE] key is pressed the following flash message is displayed:
The maximum actual temperature data (see Section 3.26: STATISTICAL DATA
FEATURES on page 3–65) will be cleared. The [STORE] key can also start a new
motor commissioning (i.e. clear statistical data). To do this, the following YES/NO
message from Actual Values page 4 must be changed from NO to say YES :
Then, when the [STORE] key is pressed the following flash message is displayed:
All statistical data will then be cleared cleared.
USE: The [STORE] key can be used only in SETPOINTS mode to store new
setpoints or in ACTUAL VALUES mode to clear the maximum actual temperature
data or start a new commissioning. This key has no effect unless the access
terminals are shorted together.
13 n
nn
n TRIP LED indicator used to show the state of the Trip output relay. When on, the trip relay
is active. When off, the Trip relay is inactive.
14 n
nn
n ALARM LED indicator used to show the state of the Alarm output relay. When on, the Alarm
relay is active. When off, the Alarm relay is inactive.
15 n
nn
n AUX. 1 LED indicator used to show the state of Auxiliary relay #1. When on, Aux. Relay #1
is active. When off, Aux. Relay #1 is inactive.
16 n
nn
n AUX. 2 LED indicator used to show the state of Auxiliary relay #2. When on, Aux. Relay #2
is active. When off, Aux. Relay #2 is inactive.
17 n
nn
n SERVICE LED indicator used to show the result of the self-test feature. When flashing, the
relay has failed the self-test and service is required. When on steady, the supply
voltage may be too low. This LED may be on momentarily during relay power up.
Table 3–1: CONTROLS AND INDICATORS (Sheet 4 of 4)
NO. NAME DESCRIPTION
STORE
NEW SETPOINT STORED
CLEAR LAST ACCESS DATA?
YES
last access data cleared
START COMMISSIONING?
YES
COMMISSIONING DATA
cleared
