GE Hydran M2-X User Manual

Hydran* M2-X Instruction Manual
Page 18
MA-029 Rev. 1.0, 30-Jul-18
4. Install the Hydran M2-X horizontally; not at an angle, vertically or horizontally
using an elbow (see Figure 1-4). For details pertaining to the positioning of
Hydran M2-X’s, see Section 4.3.1.2.

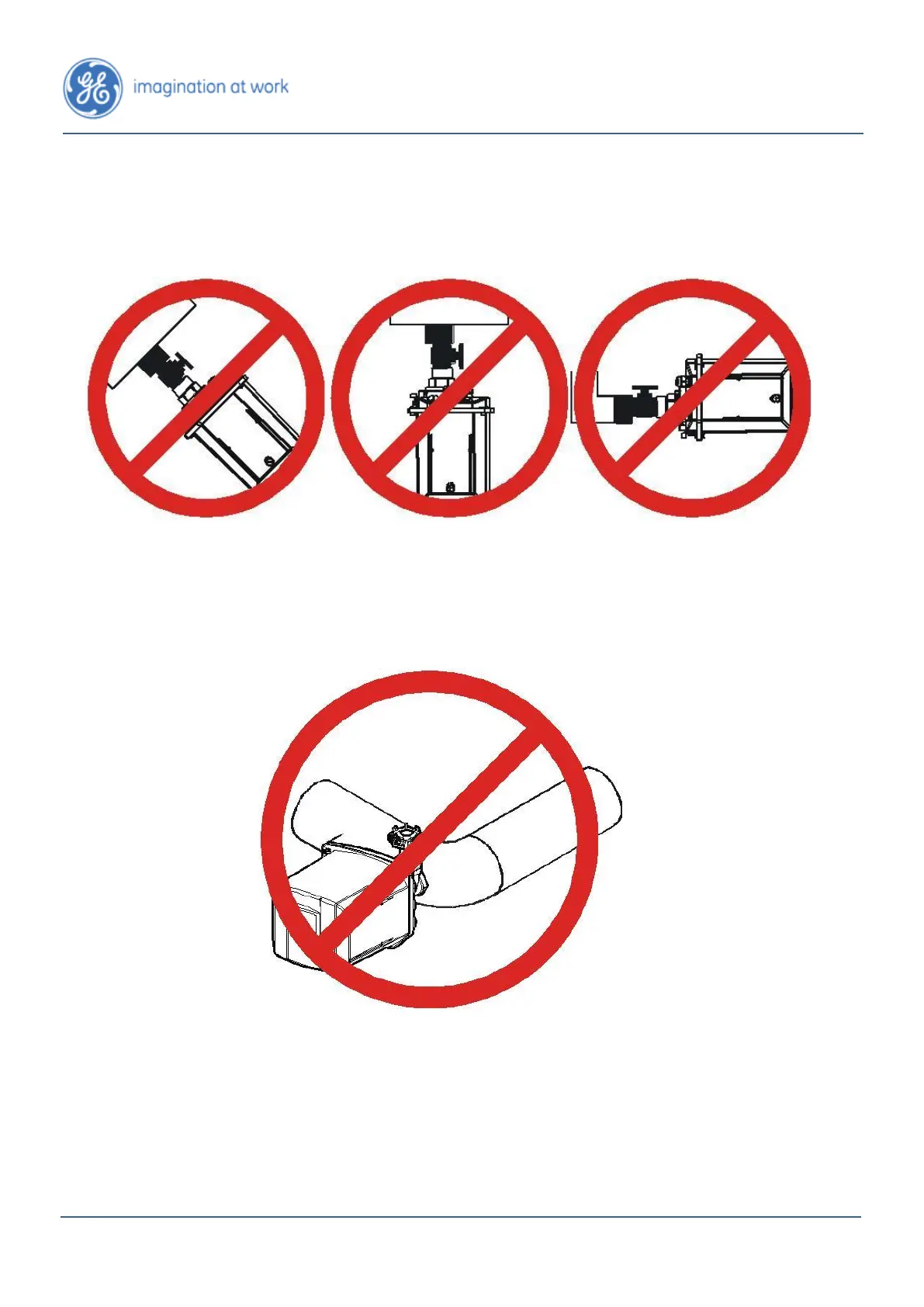

Figure 1-4: Do Not Install the Hydran M2-X at an Angle, Vertically or Using an Elbow
5. Do not install the Hydran M2-X on elbows or fitting boxes (see Figure 1-5). Elbows
may cause turbulence that can affect the accuracy of gas level readings.
Figure 1-5: Do Not Install the Hydran M2-X on an Elbow or a Fitting Box
6. Do not install the Hydran M2-X on the inlet side of the radiator pump (see Figure
1-6).
