DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
3 - 22 Section 3-4 - Completing the setup
Connect AC (mains) Power to the LOGIQ E10
Connecting AC Power to the LOGIQ E10 involves preliminary checks of the power cord, voltage level
and compliance with electrical safety requirements.
NOTE: The LOGIQ E10 will function on voltages from 100-240 volts and 50 or 60 Hz. However, if using
220 volt power, then a center tapped power source is required (North America Only).
1.) Ensure that the wall outlet is of appropriate type, and that the circuit breaker is turned off.
2.) Uncoil the power cable, allowing sufficient slack so that the LOGIQ E10 can be moved slightly.
3.) Verify that the:
- power cable is without any visible scratches, any sign of damage or tangled.
- on-site mains voltage is within the limits indicated on the rating label near the circuit breaker
on the rear of the LOGIQ E10.
4.) Connect the female plug of the power cable to the power inlet at the rear of the LOGIQ E10.
5.) Lock the plug in position with the retaining clamp (ACC clamp).
6.) Verify that the mains power circuit breaker is in OFF position, If not, switch it to OFF.
7.) Connect the other end (male plug) of the power cable to a hospital grade mains power outlet with
the proper rated voltage, and the LOGIQ E10 is ready for Power ON/Boot Up.

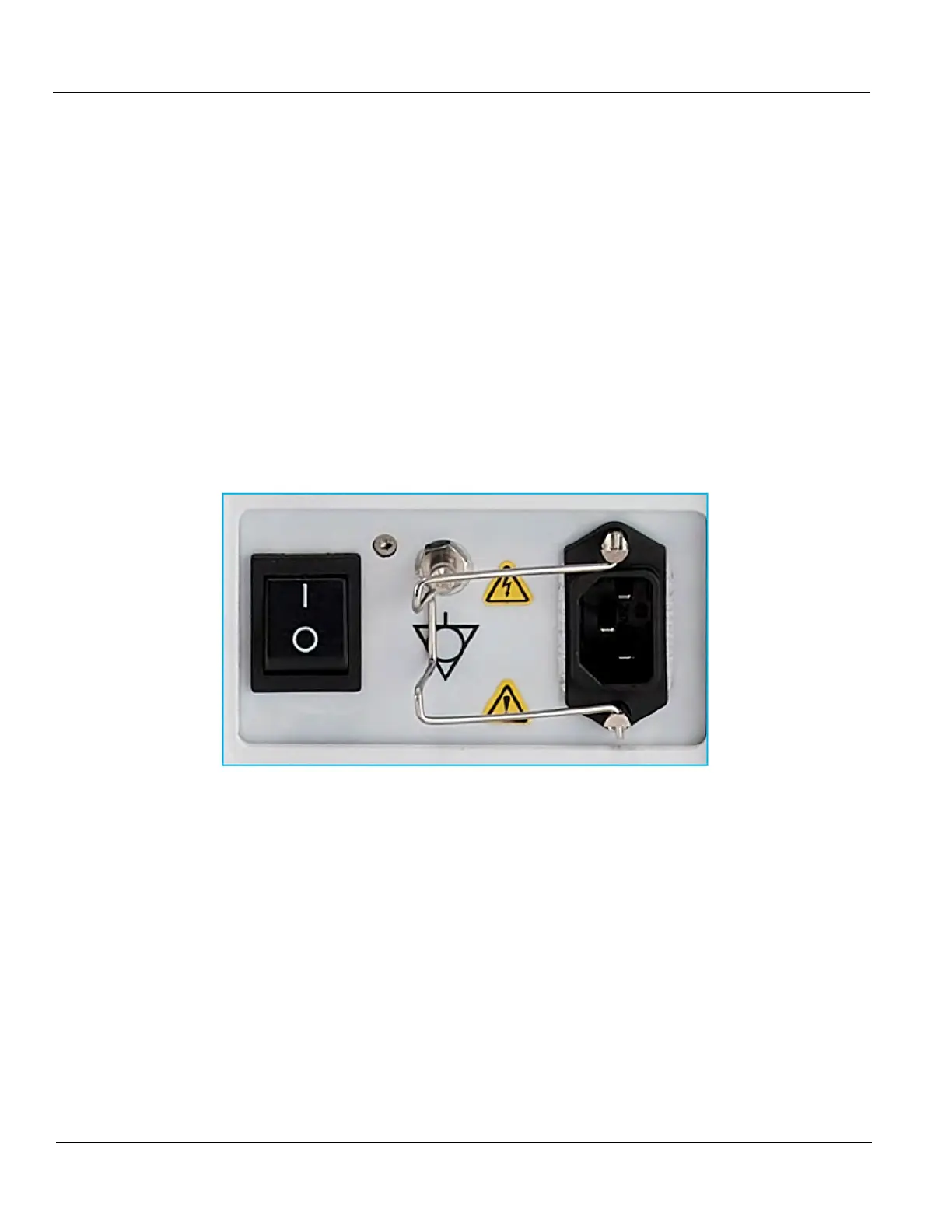

Figure 3-8 Circuit Breaker
