DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 3 LOGIQ E10 Setup 3 - 23
Switch ON the AC Power to LOGIQ E10
1.) Switch ON the mains power circuit breaker at the rear of the LOGIQ E10. The ON/OFF button turns
amber.
You should hear a click from the relays in the AC power and the LOGIQ E10 is ready to boot. This
indicates that there is power to the PS, but the LOGIQ E10 is OFF.
2.) Press once on the ON/OFF button on the Operator Panel to boot the LOGIQ E10. The ON/OFF
button turns green when it is pressed.
During a normal boot, you may observe that:
a.) The ventilation fans start on full speed, but slow down after a few seconds (listen to the fan).
b.) Power is distributed to the peripherals, operator panel, monitor, front end and back end.
c.) Back end and rest of the LOGIQ E10 starts with the sequence listed in the next steps:
1.) Back end is turned ON and starts to load the software.
2.) The Start screen is displayed on the monitor.
3.) A start-up bar indicating the time used for software loading, is displayed on the monitor.
4.) The software initiates and sets up the front end electronics and the rest of the instrument.
5.) The backlight in the keyboard is lit.
6.) As soon as the software has been loaded, either a 2D screen is displayed on the screen,
indicating that a probe has been connected, or a No Mode screen is displayed, indicating
that no probe has been connected.
NOTE: Total time used for start-up is typically less than 170 seconds.
After the 2D screen is displayed and any function is touched, the LOGIQ E10 will prompt a password
protected Login.

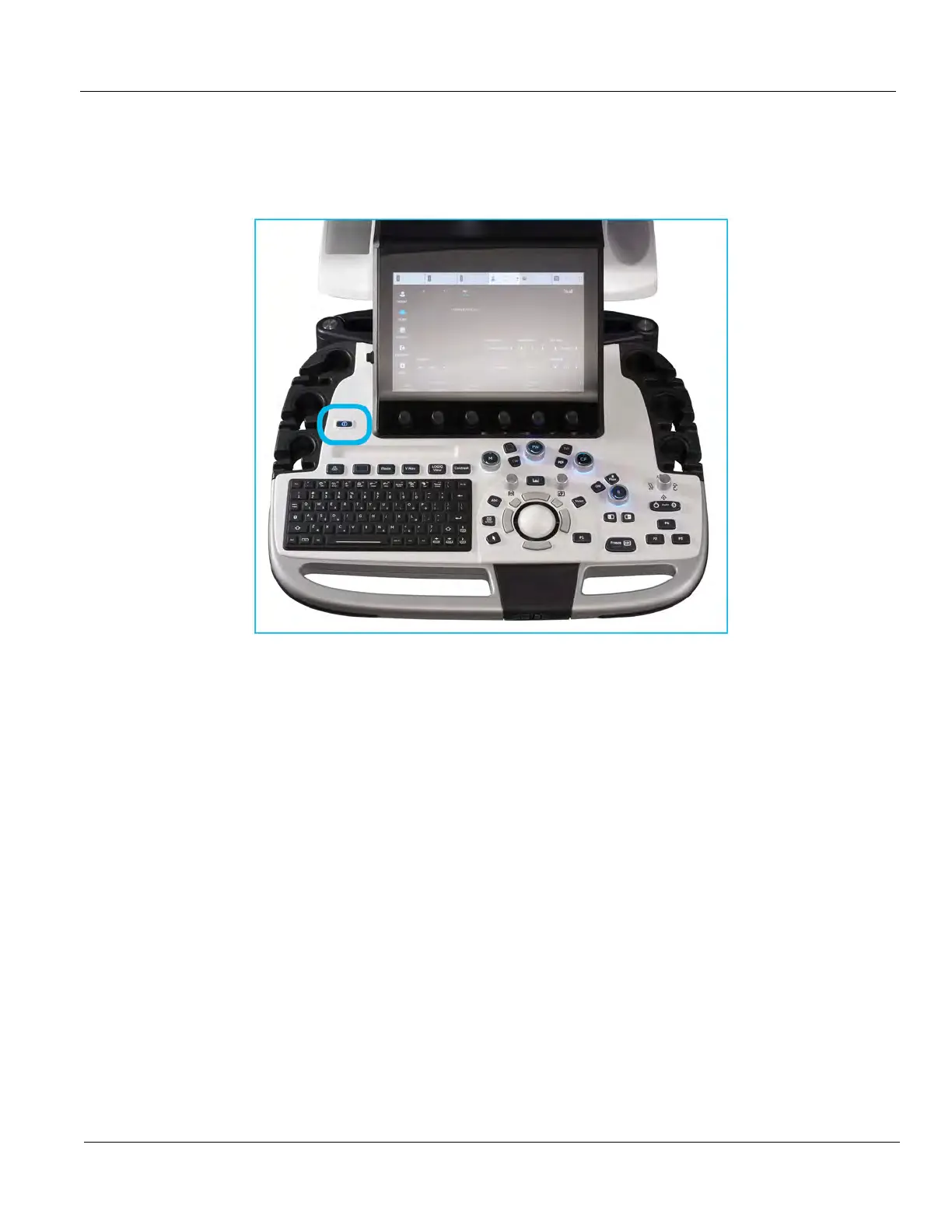

Figure 3-9 ON/OFF button
