GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 5 Components and Functions (Theory) 5 - 15
5-7-2 ECB
General Description
The LOGIQ E10 Carrier Board (ECB) is a single board computer built from a COM Express module fitted
into customized rack. Its main function is to be the central processing unit of the Ultrasound system,
controlling all the functionality, user interface and connectivity of the scanner.
Backplane connectors give the connectivity to the rack Backplane to interface to the other components/
boards installed in the rack/system.
Front connectors give the connectivity to interface to user-IO and components installed in the system.
The ECB also host a single slot GPU card, a standard SATA Solid State Drive (SSD) and a mini-PCI
Express module.
Location in the LOGIQ E10
The ECB is located on the right side of the Card Cage, behind the I/O Board and is shielded from the
other Cards.

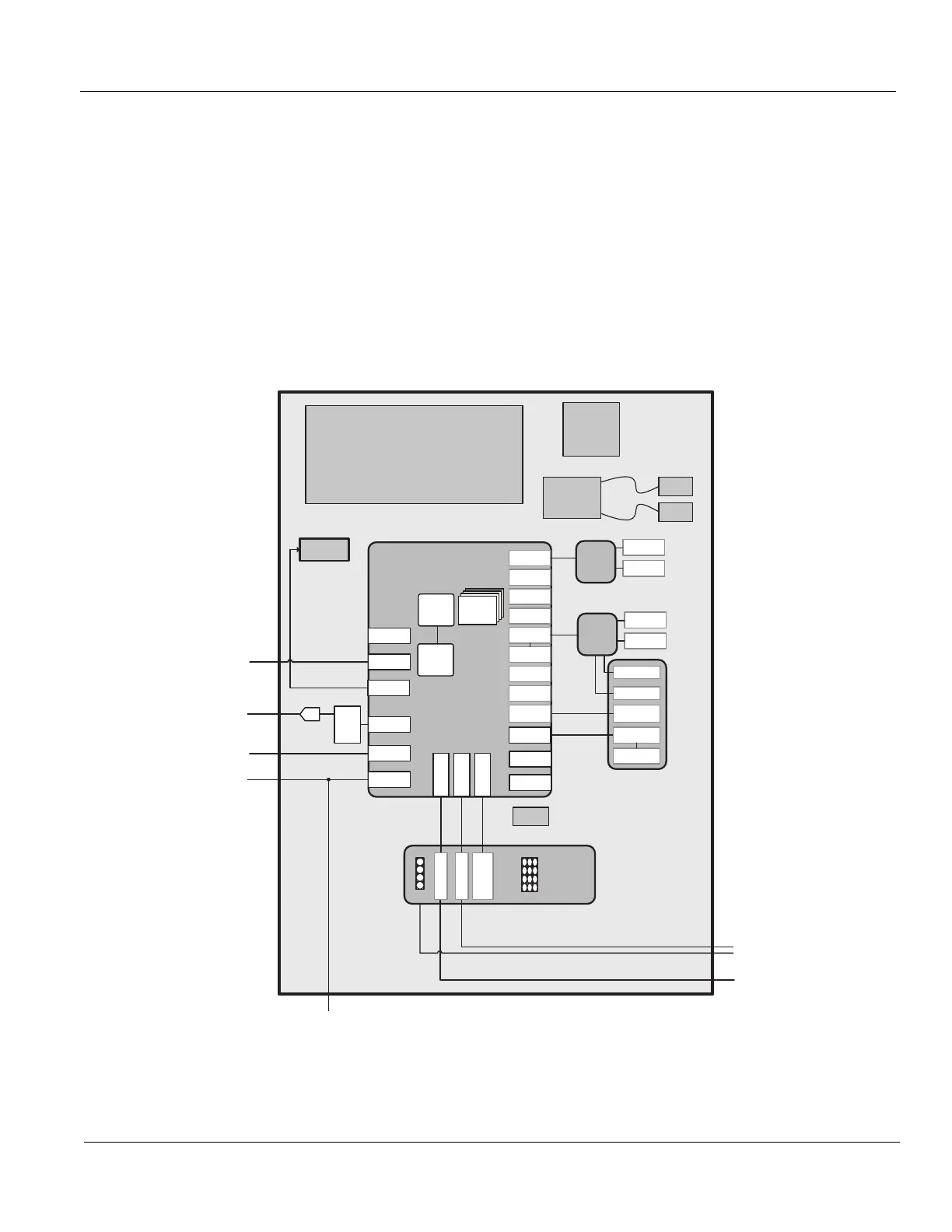

Figure 5-1 ECB/Back End Block Diagram
HDD
On- board
CP U
Main
Memory
PCIe
HD- Audio
GPIO
AMP
USB
USB 3.0
On- Board
REAR PANEL
Ethernet
S-VIDEO
On- Board
InterConnection
PCIe
GEN3
OPIO
ECG
HDMI
BW printer
Color printer
SATA
Codec
HDMI
USB 3.0
USB 3.0
Ethernet
USB 3.0
USB 3.0
USB 3.0
USB 2.0
USB
w/ P ow er
SATA SATA
FPANEL
/Fan
COMe
Skylake
USB 2.0
USB 2.0
VGU
SATA
SATA
SATA Power
CP U
QPI
USB 2.0
HDMI
HDMI
OPIO
Monitor
Optional HDD
On- board
USB
2.0
hub
USB 3.0
USB 2.0
USB 2.0
USB
3.0
hub
USB 3.0
USB 3.0
RESET
pushbutton
mini PCI-e
module
(WiFi)
SMA
Ant.
SMA
Ant.
GPU card
FPGA
(power good,
reset, etc)
ECB
