DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
5 - 16 Section 5-7 - Back End

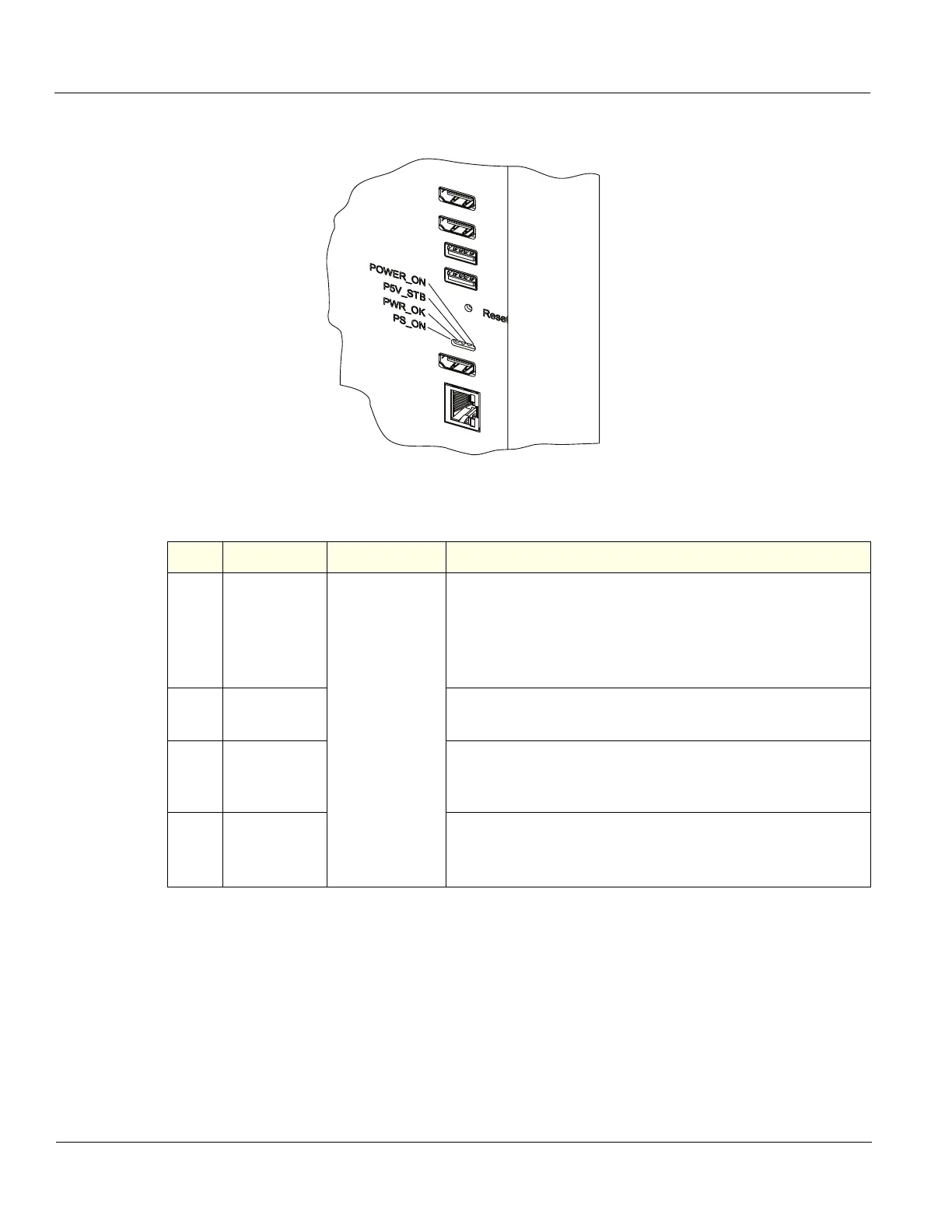

ECB LEDs
Figure 5-2 ECB LEDs
Table 5-4
LOGIQ E10 ECB LEDs
Mark Definition Color - Normal Color: Cause
A POWER_ON
Light Green
- OFF: AC power off or Main PS 5Volt standby power failure
- Yellow/amber: STANDBY mode
- Green: Working; Computer is running
- this LED also shows the various stages of the POWER-ON
sequence (different colors and blink patterns)
B P5V_STD
- OFF: AC power off or Main PS 5Volt standby power failure
- Green: 5Volt standby power is good
C PWR_OK
- OFF: AC power off or Main PS 5Volt standby power failure
- Red: 48Volt from Main PSU fault or Main PS is turned off- -
- Green: 48Volt from Main PSU good
D PS_ON
- OFF: AC power off or Main PS 5Volt standby power failure
- Red: Main PSU turned off
- Green: Main PSU turned on
J10
J9
J8
J7
J5
J6
A)
D)
C)
B)
