DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 6 Service Adjustments 6 - 15
6-4-3 Adjusting the XY Locking Mechanism
Table 6-9 Adjusting the XY Locking Mechanism
Steps Corresponding Graphic
1.
This procedure is intended to adjust the
locking mechanism for the XY Assembly.

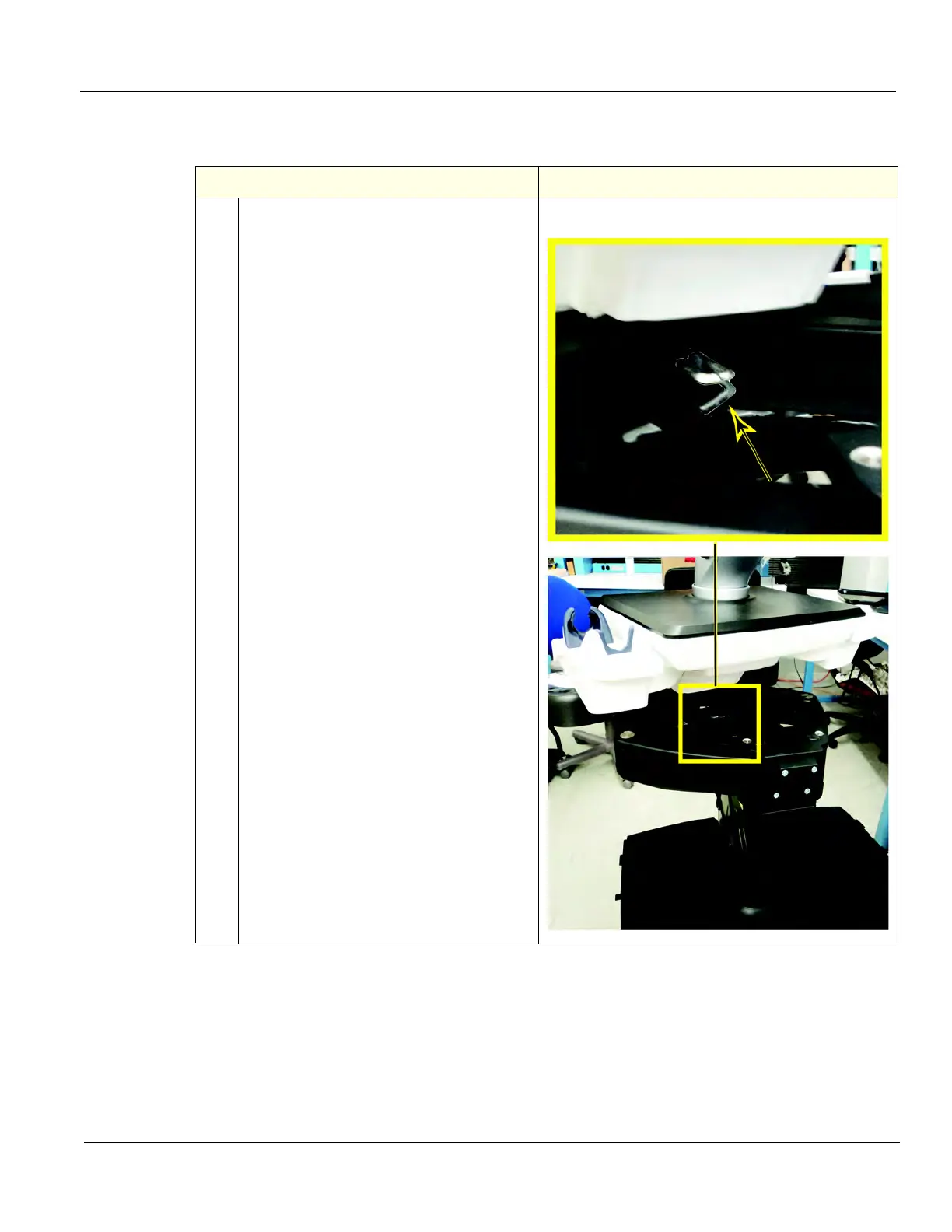

Locate hex screw behind the XY Assembly
to adjust it correctly.
Use a 3 mm hex wrench to adjust. Rotating
the screw clockwise will tighten and
rotating the screw counterclockwise will
loosen the lock.
Too tight will reduce the slack and make it
harder to engage the lock. Make the
adjustments in 1/4 turn increments and test
the lock until the optimum adjustment is
achieved.
NOTE: When turning the hex screw, do not
exceed half turn increments.
Overtightening will prevent the console
from locking into place and too loose will
make the console loose. You may try 1/2
turn adjustments, but the console may be
too tight or have too much slack.
XY Adjustment for Operator Panel
