GE LOGIQ E10

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 7
Section 8-3
Definitions of Left, Rear / Back, Right and Front

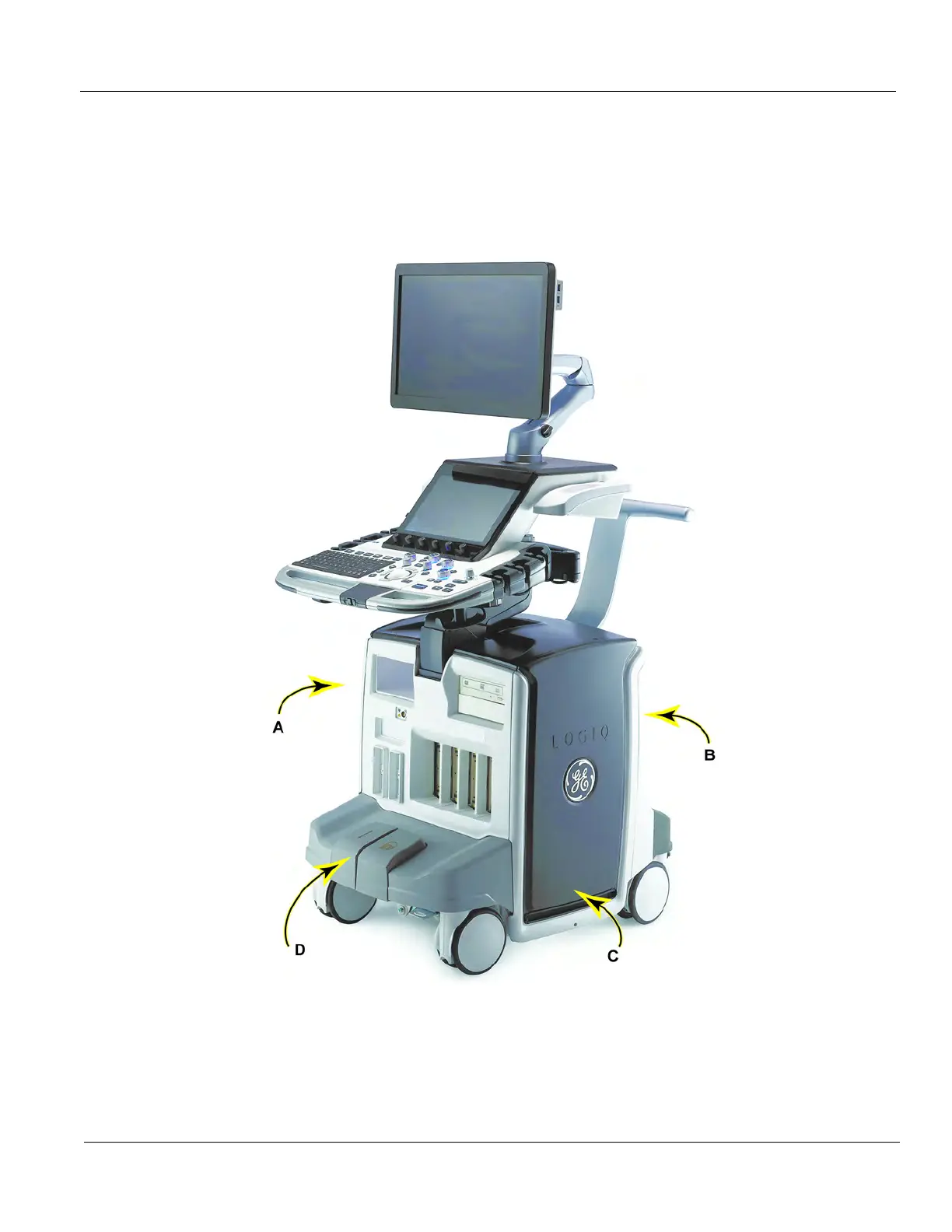

Figure 8-1 illustrates what is the Left Side (A), Rear / Back (B), Right Side (C), and Front (D) of the
LOGIQ E10.
Figure 8-1 Definitions of Left, Rear / Back, Right and Front
