8 - 30 Section 8-6 - Replacing Covers and Bumpers
8-6-2 Covers and Bumpers overview
When replacing Side Covers and/or Rear Cover for a LOGIQ E10 used in a veterinary environment, the
LOGIQ E10 Spare Parts Handling for Veterinary Systems MUST BE re-installed before the LOGIQ E10
is returned for use. See: "Label Placement for the LOGIQ E10 used in a Veterinary Environment" on
page 8-58 and Section 9-19 "Product Labels on LOGIQ E10 and Consoles used in a Veterinary
Environment" on page 9-48.
The Main Console has a Front Cover, two Side Covers with a Foot Rest (front), Bumper (rear), a Rear
Cover with a top trim and a Top Cover.
The Side and Front Covers, Foot Rest, Rear Bumper and Rear Cover Trim are positioned and secured
to the LOGIQ E10 with custom designed, self-clinching studs (A) and a catch (B). The catch (B) is
mounted loosely to help guide the stud into place, to ease removal/attaching and provide a better fit for
the covers.
In addition to the self-clinching studs and catch, the Side Covers are positioned and secured with a
series of tabs (C) at the top, inside of the Cover and slots (D) in the Top Cover. The Front Cover is
positioned and secured with guides (tabs E) to the Top Front Cover.

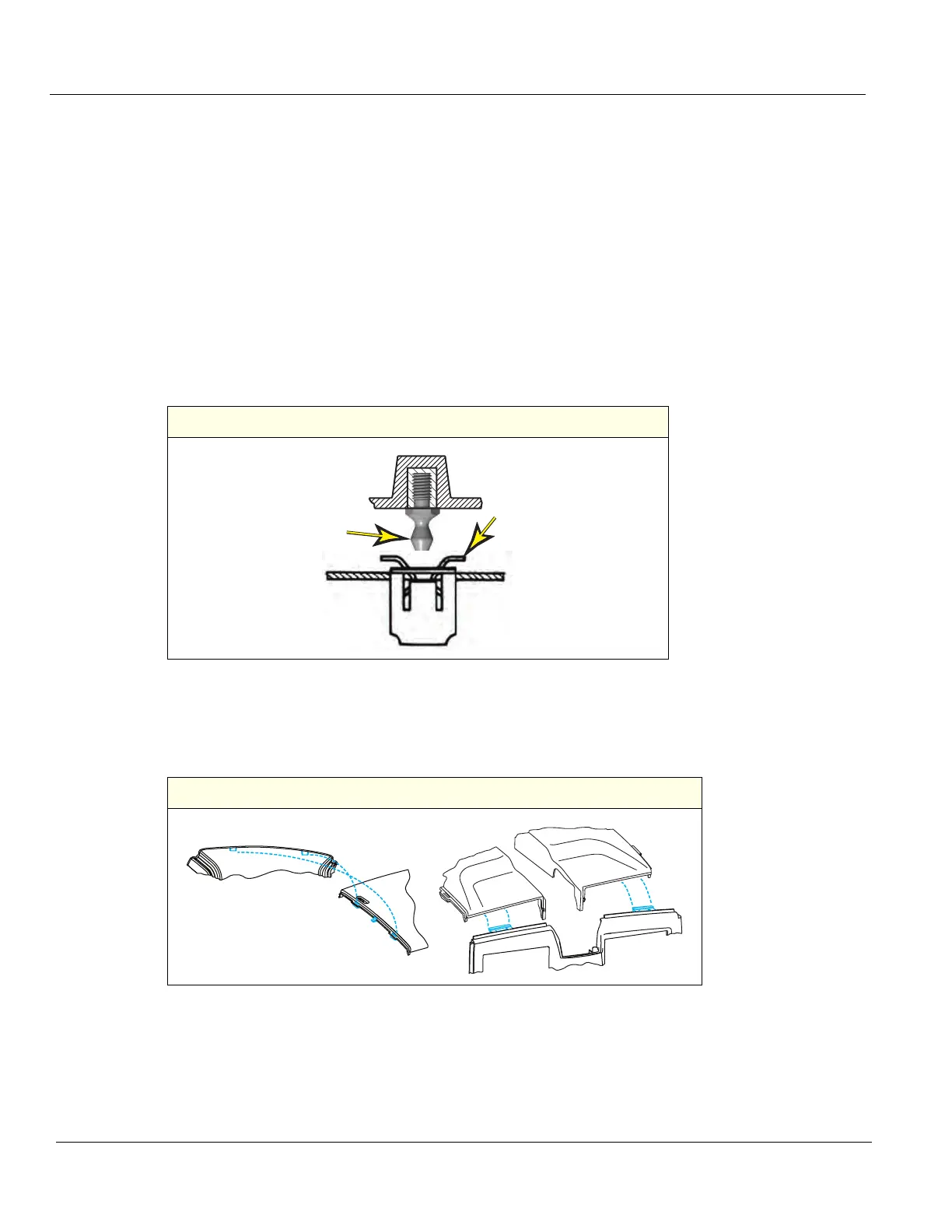

Table 8-17 Self-clinching Stud and Catch
Self-clinching Stud and Catch
Table 8-18 Cover Tabs and Slots
Cover Tabs and Slots
A
B
C
D
E
