GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 39
Front Cover installation
Table 8-29 Front Cover installation
Steps

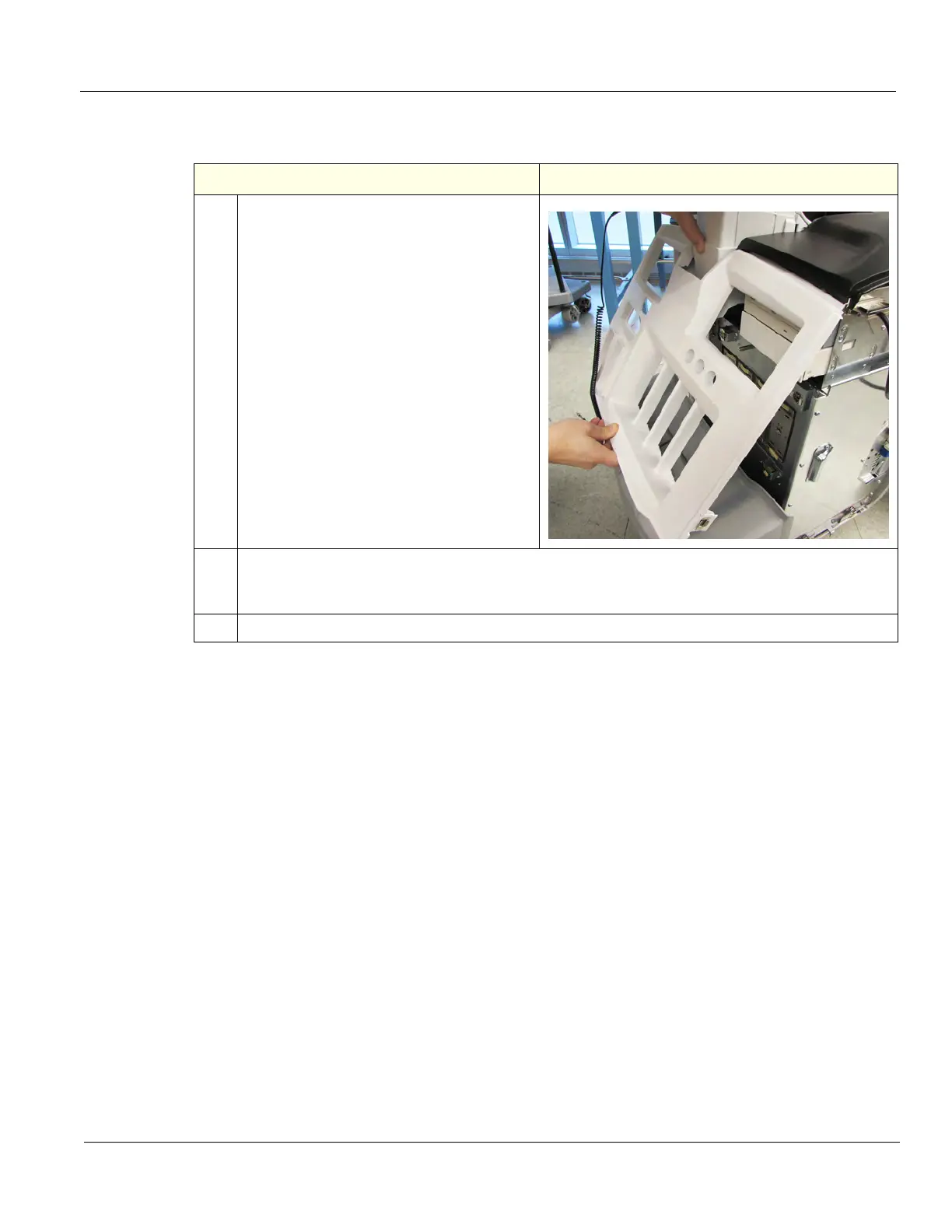

Corresponding Graphic
1. With one hand, support the Column Cover
up.
Center the Front Cover on the
LOGIQ E10 and align the tabs at the top, in-
side of the Top Cover into the slots in the
Front Cover and tilt inward.
2. With both hands, firmly press in, evenly in the center, above the probe connections, to place the
top two self-clinching studs. Then, with both hands, firmly press in, evenly at the bottom to com-
plete installation.
3. Re-install Side Covers.
