GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 50 Section 8-6 - Replacing Covers and Bumpers
Rear Bumper/Air Intake (Filter) installation
2.
If the Rear Bumper is replaced, the Air Filter
must be transferred to the replacement.
Remove the Air Filter and transfer it to the
replacement.
Release the tab by pressing inward on the
outer edge of the Filter (either side) and
gently slide the Filter out of the LOGIQ E10.
Always clean the Filter when it is removed.
Inspect the Filter. Always replace the Filter,
if it is damaged or you suspect damage.
3.
Re-install or replace Filter.
Table 8-48 Rear Bumper/Air Intake (Filter) installation
Steps
Corresponding Graphic

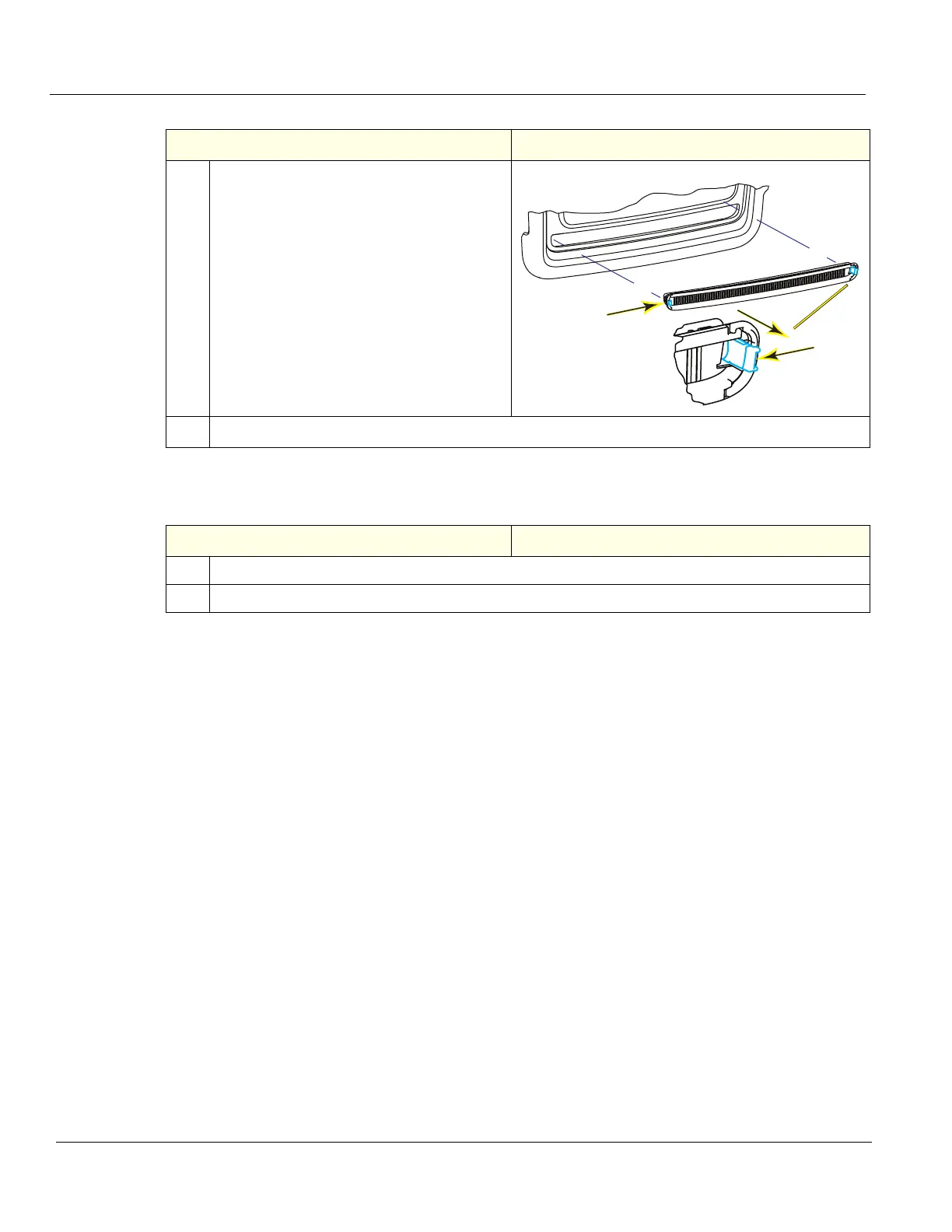

1. Position bumper into place and with both hands, firmly press in, evenly to install.
2. Re-install all Covers removed and Mains Cable Hook.
Table 8-47 Rear Bumper/Air Intake (Filter) inspection / removal
Steps
Corresponding Graphic
