DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 49
8-6-8 Rear Bumper/Air Intake (Filter) inspection / replacement
NOTE: When the Rear Bumper is removed, always inspect the Filter for debris, blockage or damage.
If the Filter is blocked, clean it. If the Filter is damaged, replace it. If the Rear Bumper is
replaced, the Air Filter must be transferred to the replacement bumper.
Rear Bumper/Air Intake (Filter) inspection / removal
The Rear Bumper is attached to the LOGIQ E10 with two self-clinching studs.
Table 8-45 Manpower / Time and Tools
Manpower /
Time
Tools / PPE
One person /
15 minutes
Refer to: 8-2-5 "Tools needed for servicing the LOGIQ E10" on page 8-6 /
8-2-6 "PPE Required During Service" on page 8-6.
Table 8-46 Preparations and Preparation Links
Preparations - you must perform the following steps
1. Power down the system.
2. Disconnect the mains power cable from the wall outlet and all Probes and External I/O Cabling.
3. Remove the Side Covers, Mains Cable Hook and Rear Cover.
Preparation Links (if you need more information):
• 4-2-4 "Power SHUT DOWN" on page 4-9.
• 8-6-3 "Side Cover(s)/Side Air Intake (Filter) inspection / replacement" on page 8-33.
• 8-6-6 "Mains Cable Hook replacement" on page 8-43.
• 8-6-7 "Rear Cover/Air Exhaust replacement" on page 8-45.

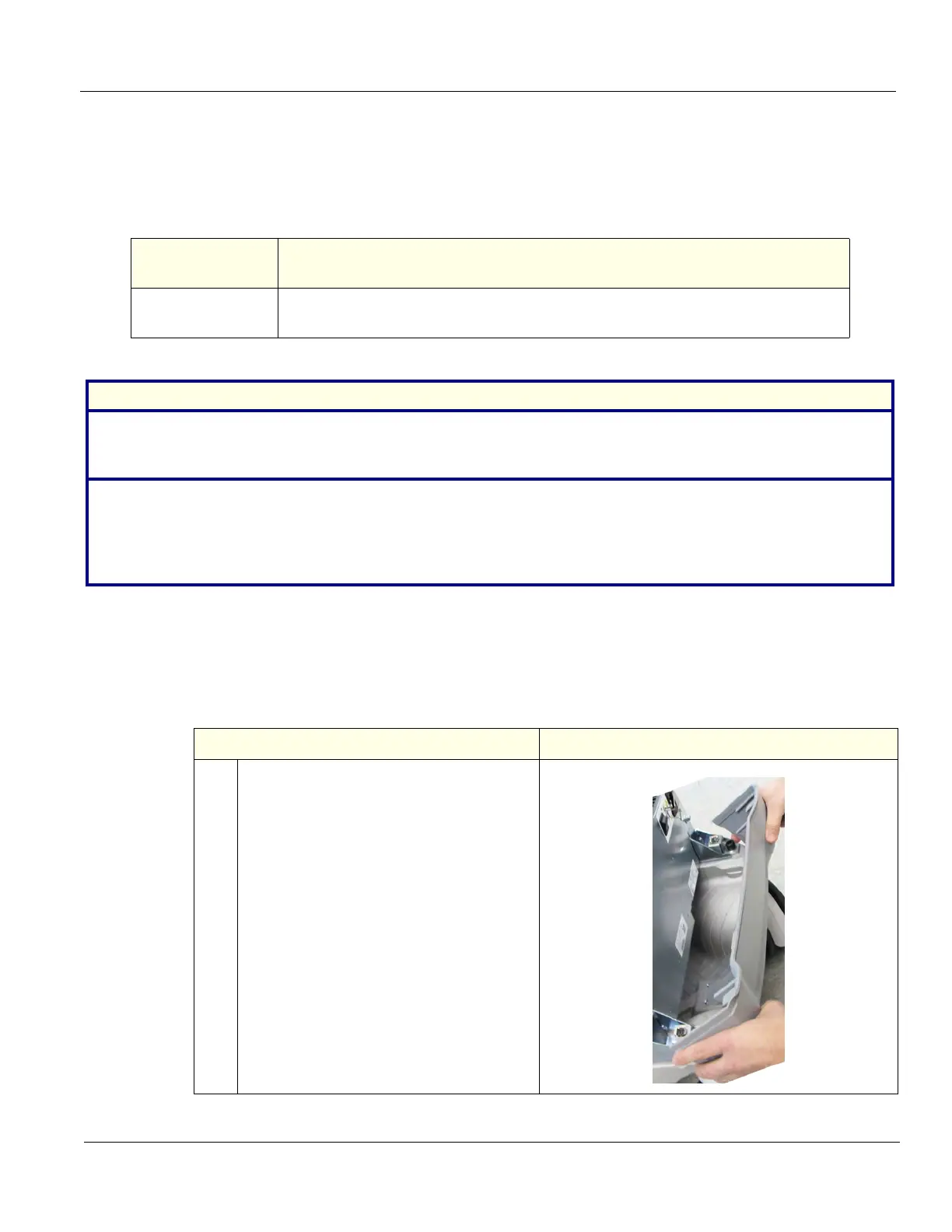

Table 8-47 Rear Bumper/Air Intake (Filter) inspection / removal
Steps
Corresponding Graphic
1.
With both hands at the bottom, gently and
evenly, pull the Bumper straight up.
Set Bumper in a safe place.
