DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 53
Rear Trim Cover removal
The Rear Trim Cover is attached to the LOGIQ E10 with two self-clinching studs.
Table 8-52 Rear Trim Cover removal
Steps

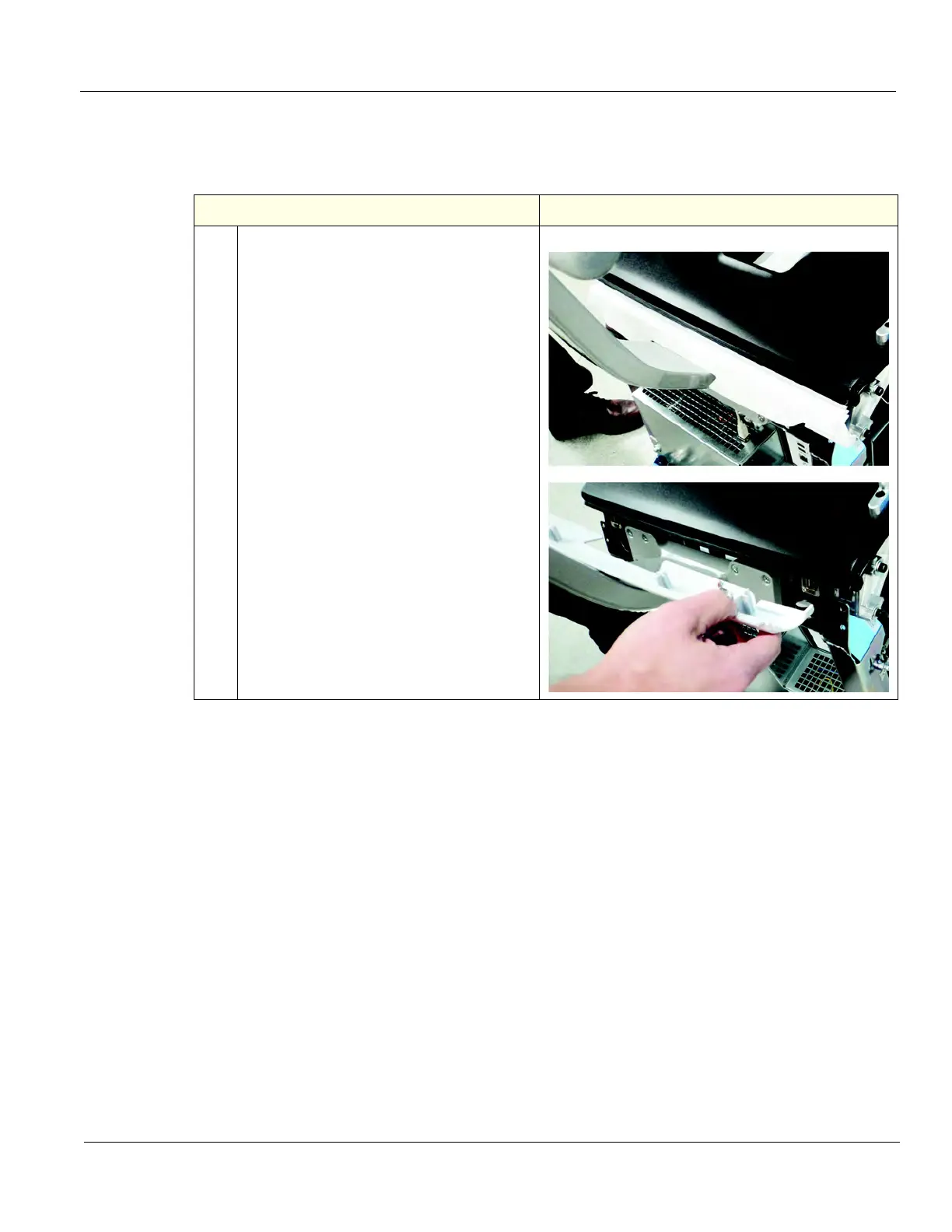

Corresponding Graphic
1.
With both hands at the bottom, gently and
evenly, pull the trim cover out and tilt up.
Set trim cover in a safe place.
Rear Trim Cover installed
