DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 71

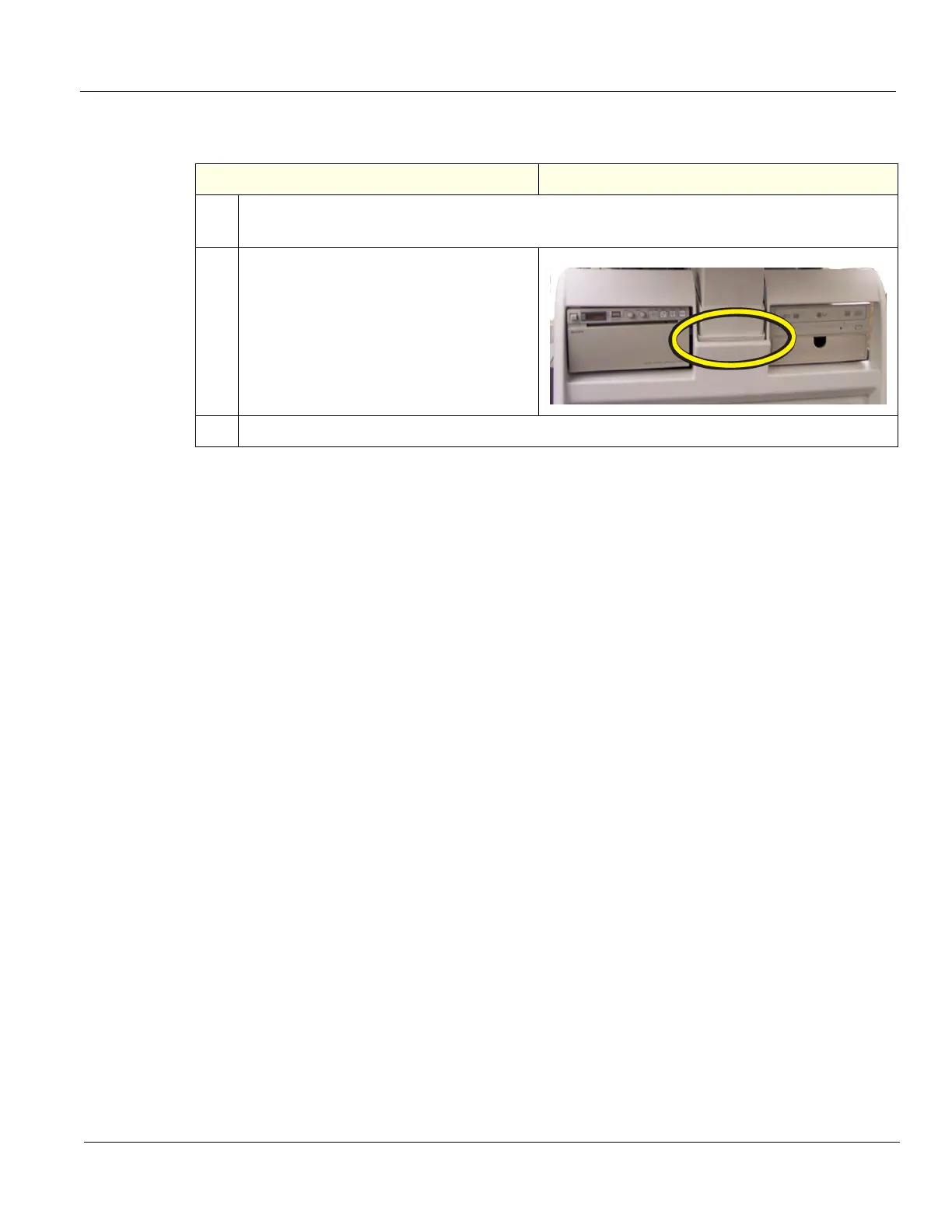

Column Cover Assembly installation
Table 8-82 Column Cover Assembly installation
Steps Corresponding Graphic
1.
Install the Main Cable Cover so the Column Cover Assembly overlaps Main Cable Cover edges.
Install screws to Column Cover Assembly (tighten by hand).
2.
Position the lower Column Cover tab inside
the Front Cover.
3.
Re-install all Covers removed.
